Voltage Meters Current Voltage Capacity Battery Tester USB Volt Current Voltage Doctor Charger Capacity Tester Meter Power Bank
Voltage Meters Current Voltage Capacity Battery Tester USB Volt Current Voltage Doctor Charger Capacity Tester Meter Power Bank
Couldn't load pickup availability
Features:

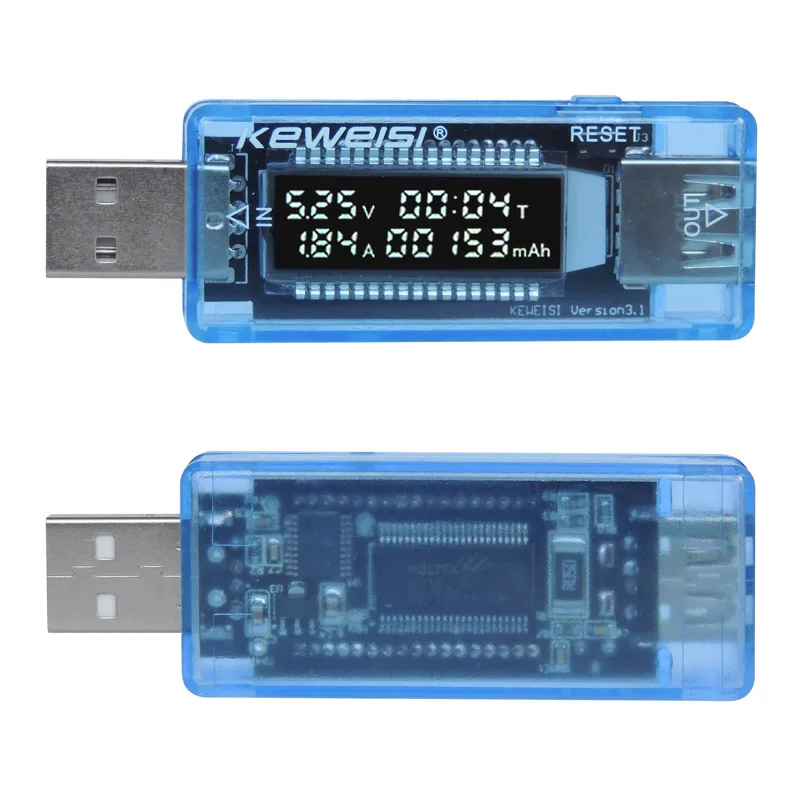

This is the mini USB meter.
It can clearly display all the data.
Can easily measure the USB ( PC USB, cell phone charger, car charger , mobile power , etc. ) port and device operating current and the output voltage charge-discharge capacity, performance, and judge the performance of the charging cable charging equipment, this tester can meet the requirements !
Fit to factories, laboratories and personal use, wide range and Easy to use, easy to take alone, no additional power supply, Plug and play.
Description:
DIY Supplies: Electric
Display Type: Digital Only
Code Accuracy class: Plus or minus 1%
Operating temperature: normal
Power Supply: AC
Voltage: 4-20V+/-1%
Current: 0-3A+/-1%
Time: 0-99H
Specifications:
Model: KWS-V20
Material: Plastic
Color: Blue

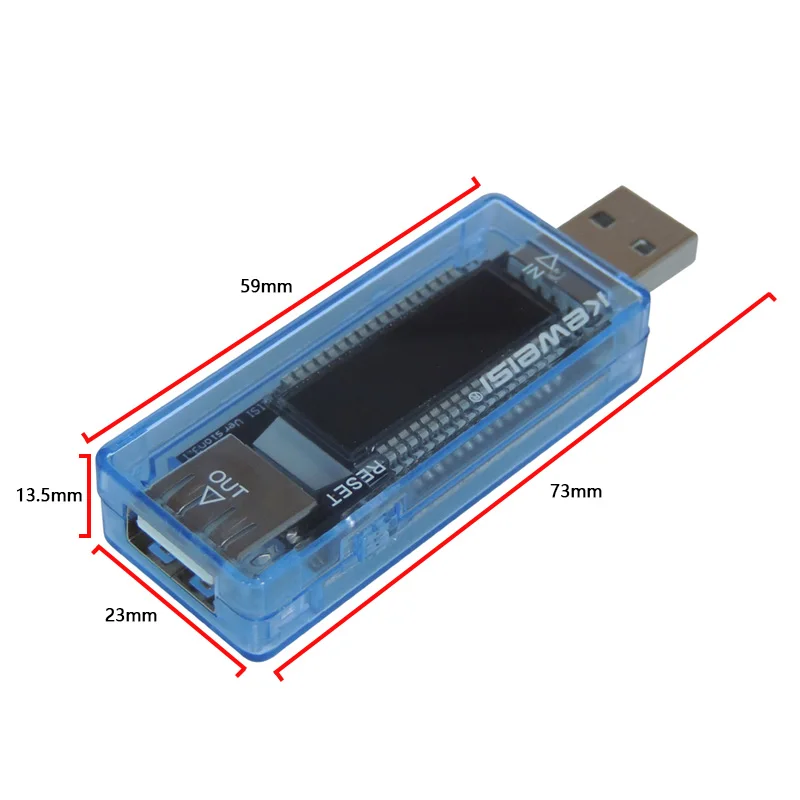

Size: 59*23*13.5mm

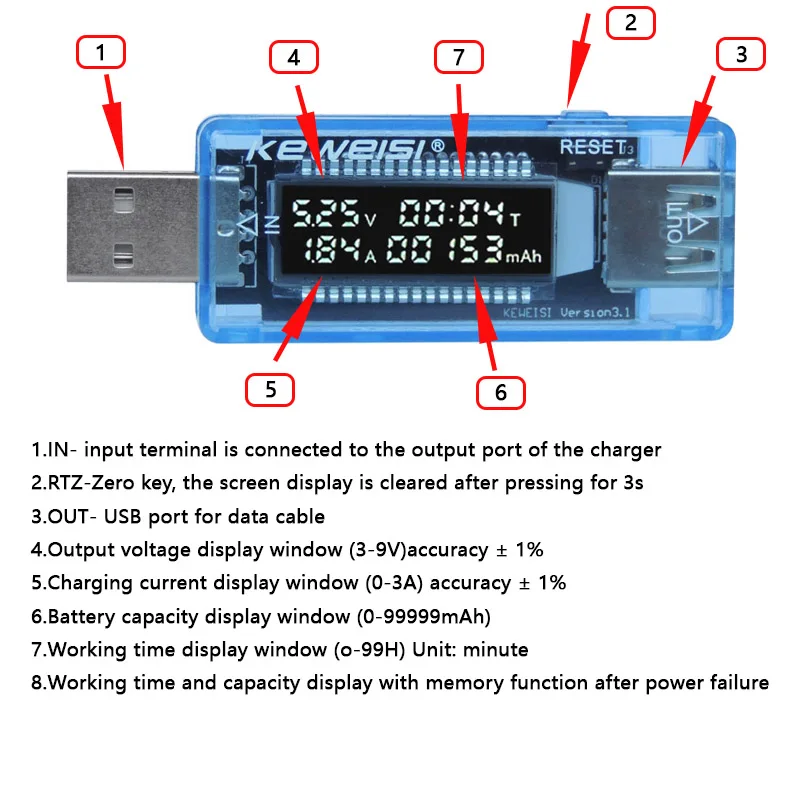

1. IN - Connect the input terminal to the output port of the charger
2. Press the RTZ reset button for 3 seconds before the screen displays reset
3. OUT - USB port for connecting the output end to the data cable
4. Input voltage display window (3-9V) accuracy ± 1%
5. Charging current display window (0-3A) accuracy ± 1%
6. Battery capacity display window (0-99999mAh)
7. Working time display window (0-99H) Unit: minutes
8. Working time and capacity display with memory function after power outage
