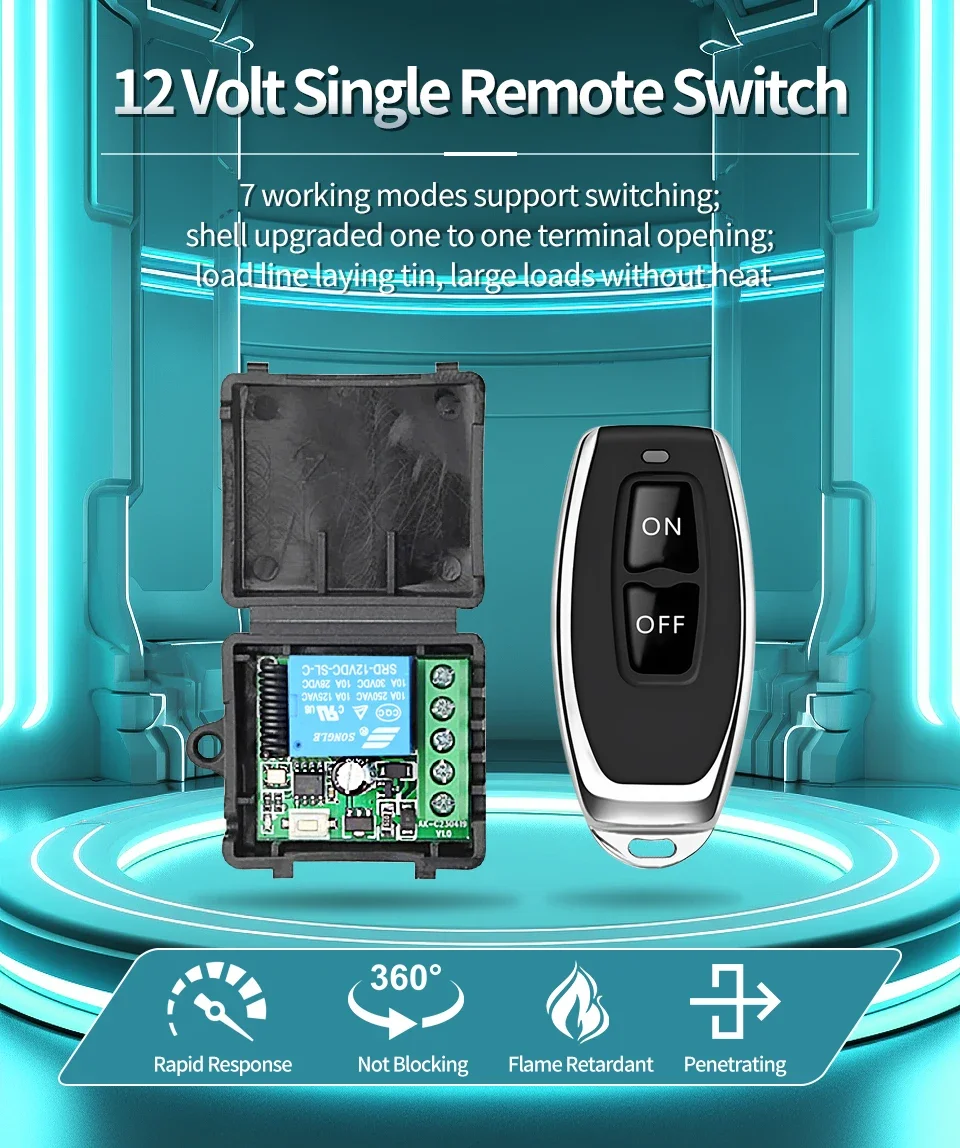

Universal Gate Remote Control Switch DC 12V RF 433 Mhz Asking Code Relay Receiver DIY Mini Module for Garage Door LED Lighting

About Working Mode:

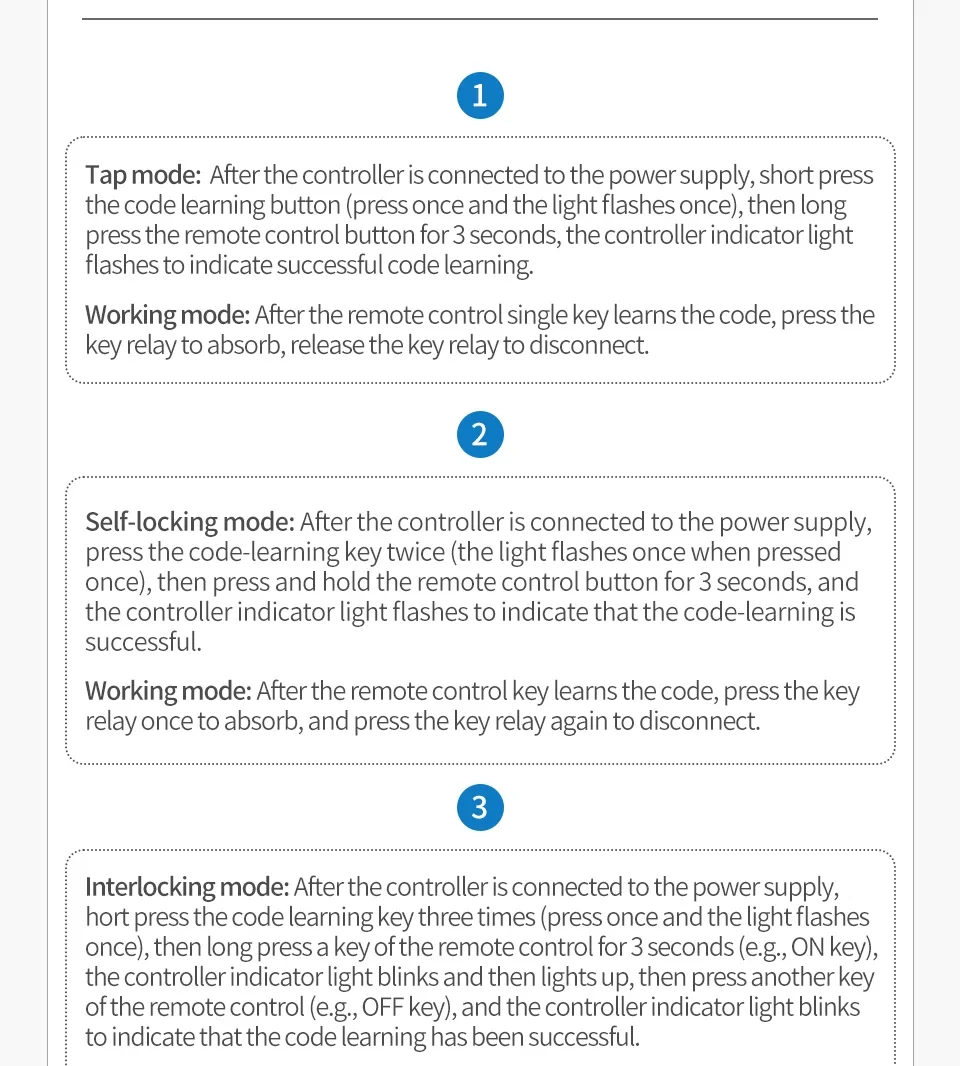

Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects . Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect. Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.

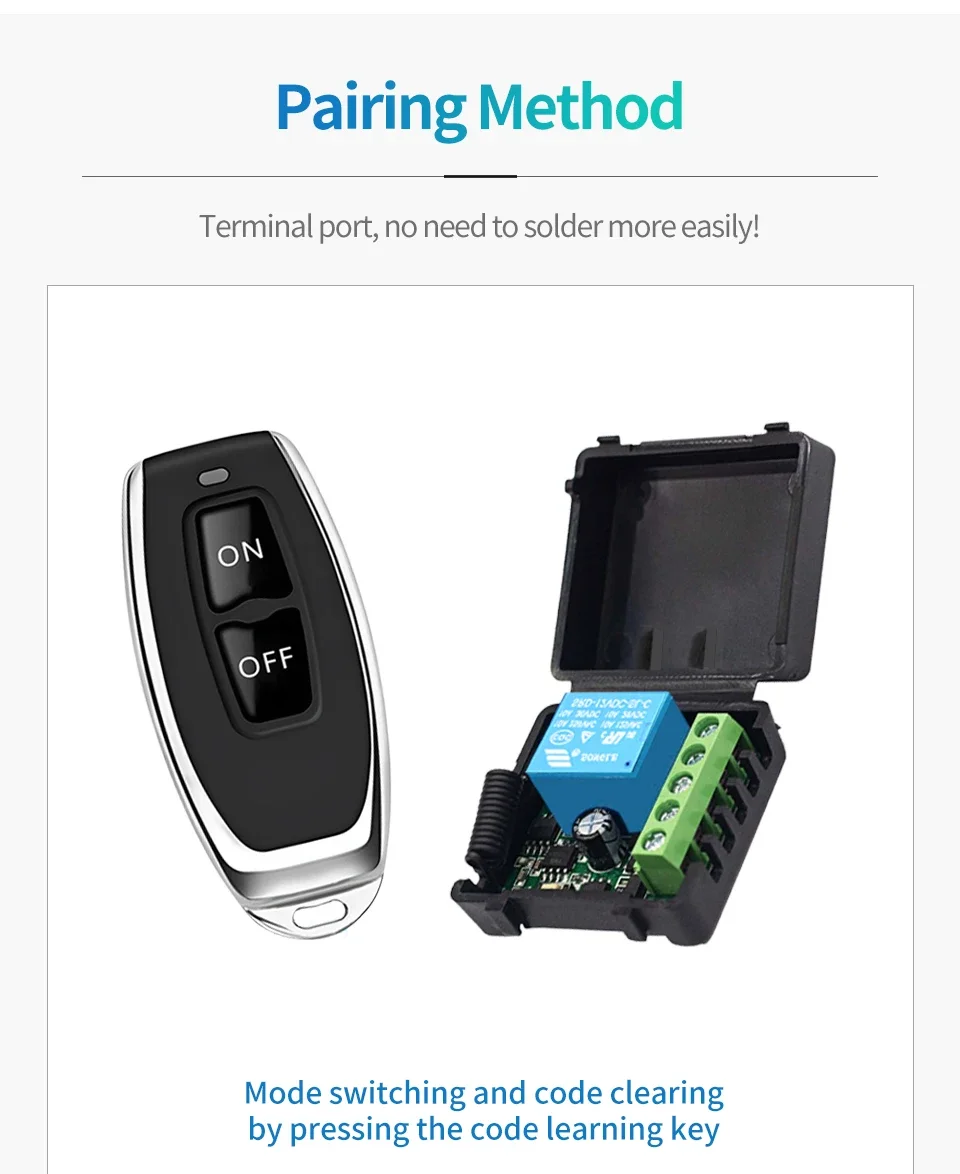

Clearing the Code:

Press the Learning Button on the receivers for 8 times, the codes will be cleaned. After cleaning the code, all the remote control cannot work any more.

Learning the Code:(Momentary)

Press the learning key on the receiver once time, it comes into momentary setting mode. Wait for a moment, the LED will be off , it comes into learning state. Push the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code: (Toggle)

Press the learning key on the receiver twice time, it comes into toggle setting mode. Wait for a moment, the LED will be off , it comes into learning state. Press the remote button, LED indicator on the receiver board will flash then come off. After 3 seconds, the LED indicator will be on again, learning successfully.

Learning the Code:( Latching)

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF. For example: Button A = ON, Button B = OFF Press the learning key on the receiver triple time, it comes into latching mode . Wait for a moment, the LED indicator on the receiver board will flash then come off. Press the remote button A. LED flash for 5 times. Press the remote button B. LED flash for 5 times After 3 seconds, the LED indicator will be on again, learning successfully. A = ON, B = OFF .

Learning the code :( Time delay mode )

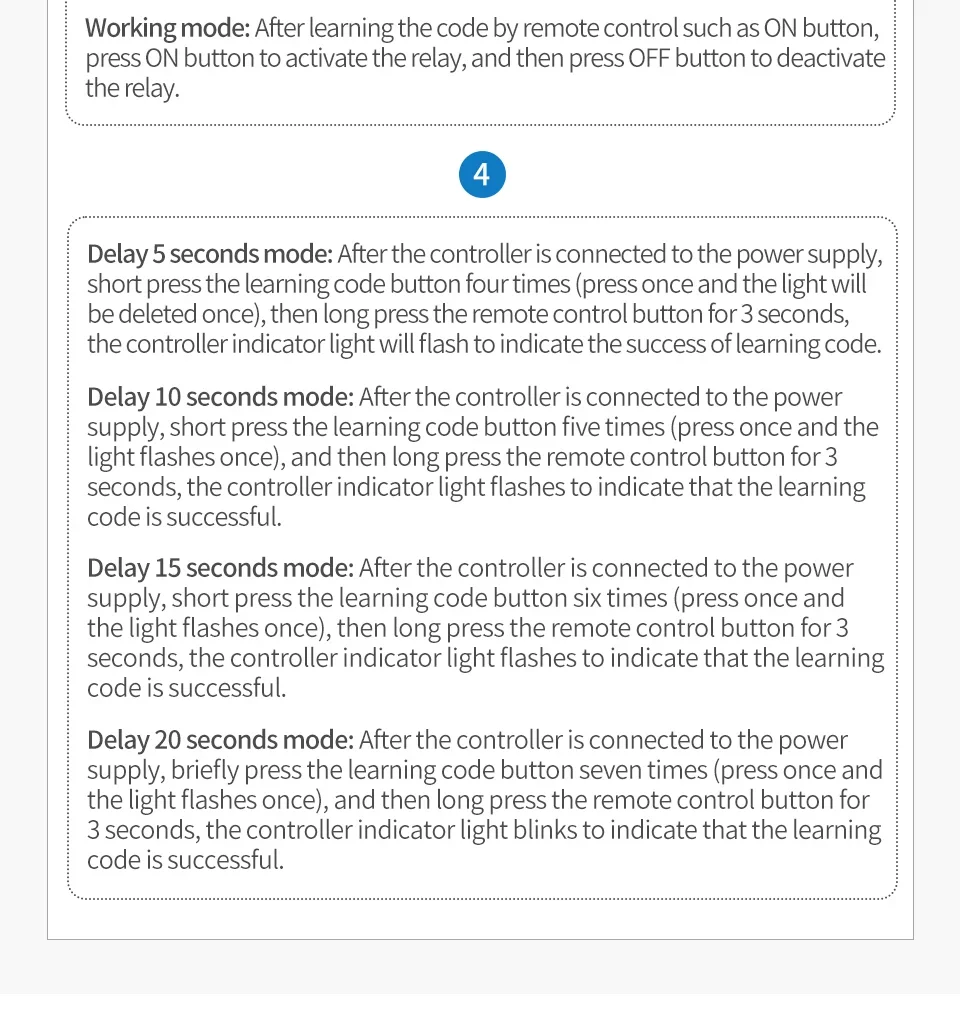

Push the learning key on the receiver forth time , the time dealy for 5 seconds . Push the learning key on the receiver fifth time , the time delay for 10 seconds . Push the learning key on the receiver sixth time , the time delay for 15 seconds . The LED indicator will be off . Push the remote button , LED flashes and off . After 3 seconds , the LED indicator will be on again , learning successfully .

Please Note:

The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .

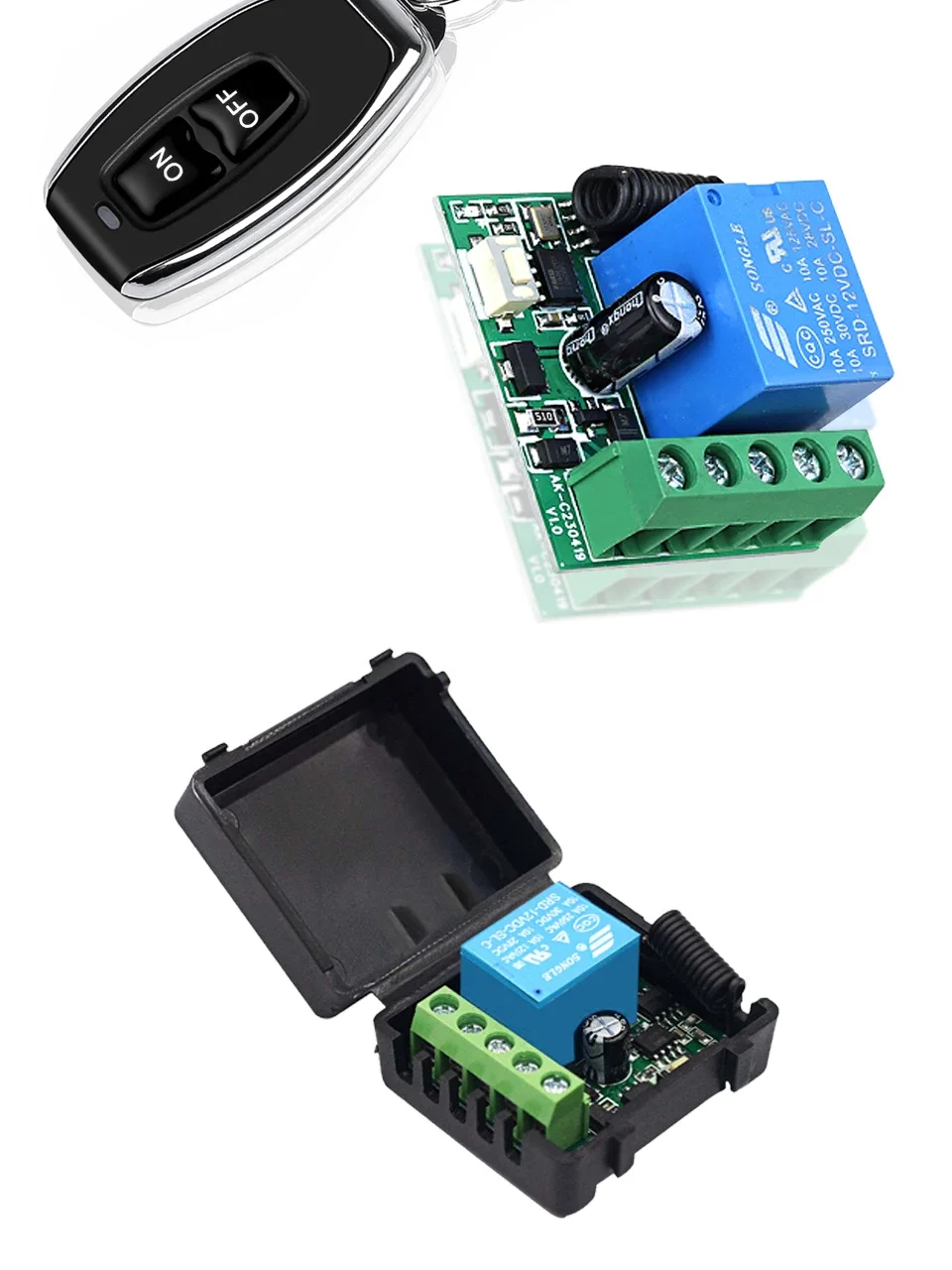

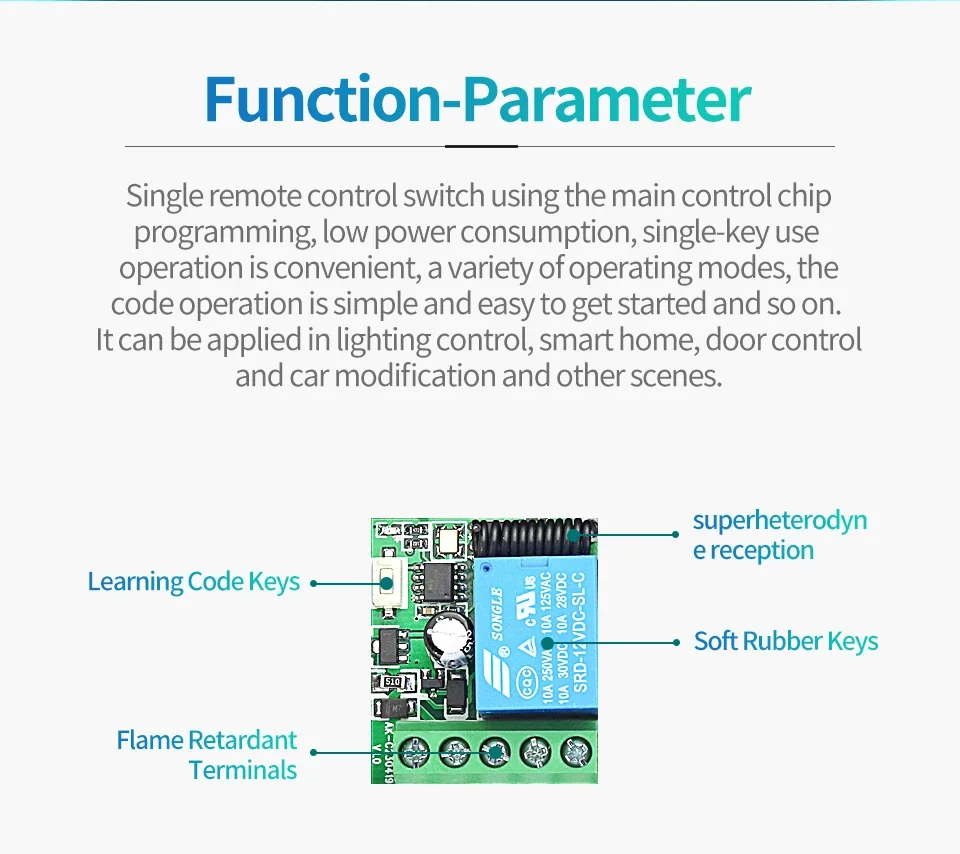

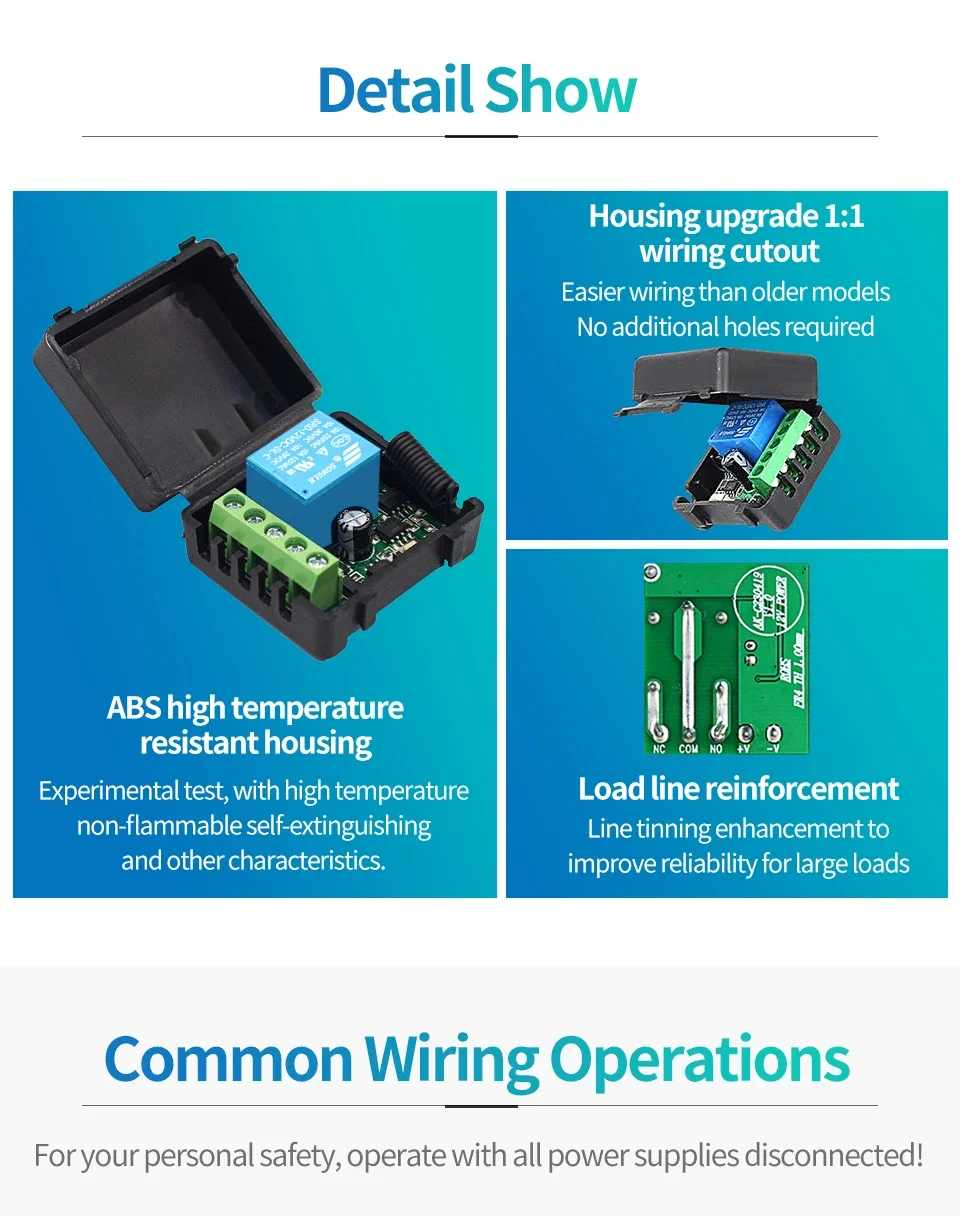

Specifications Of The Receiver:

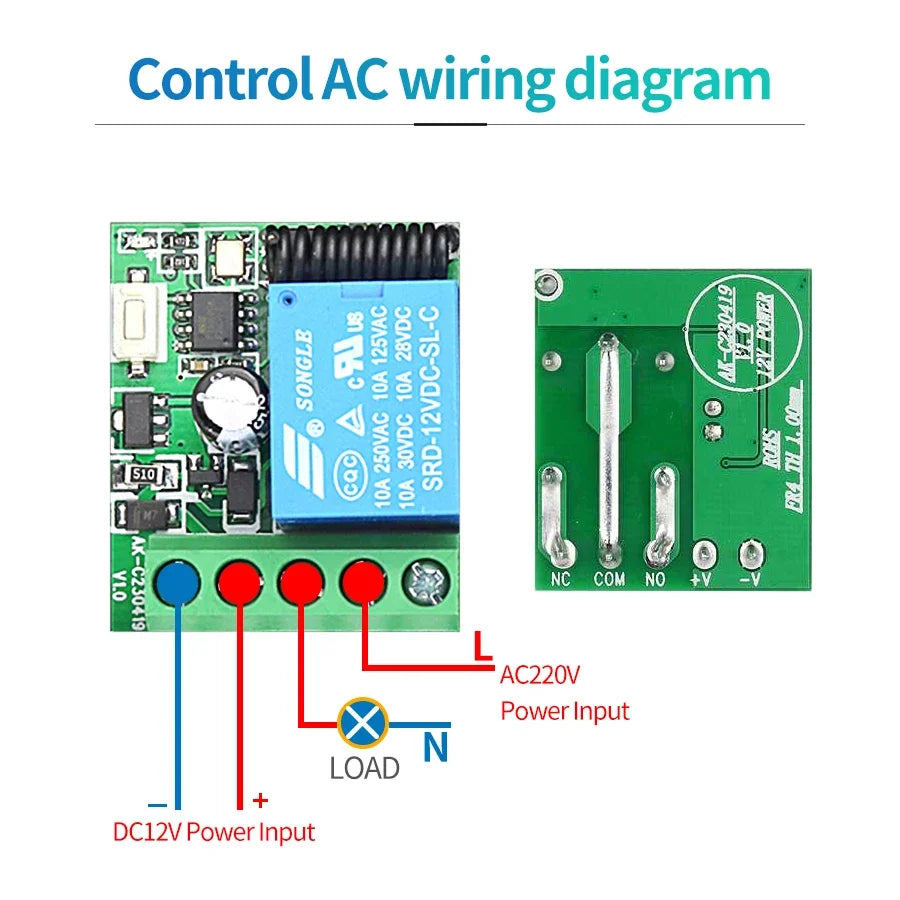

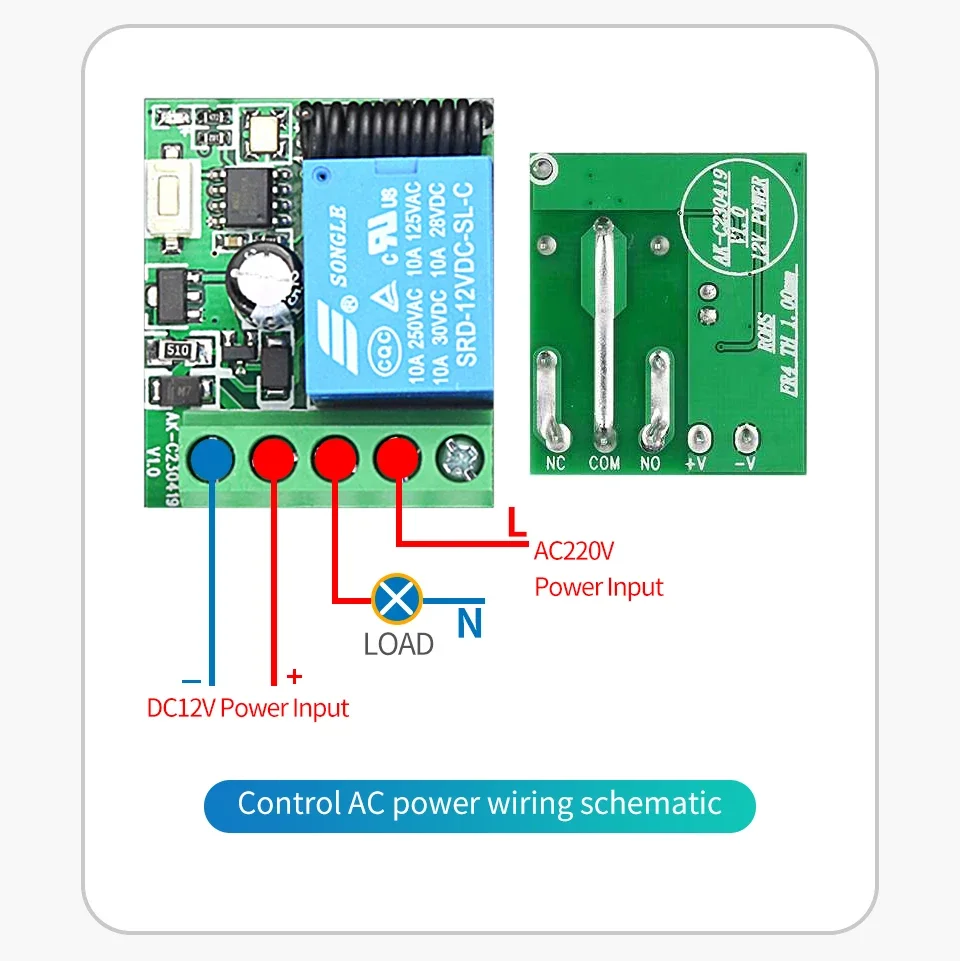

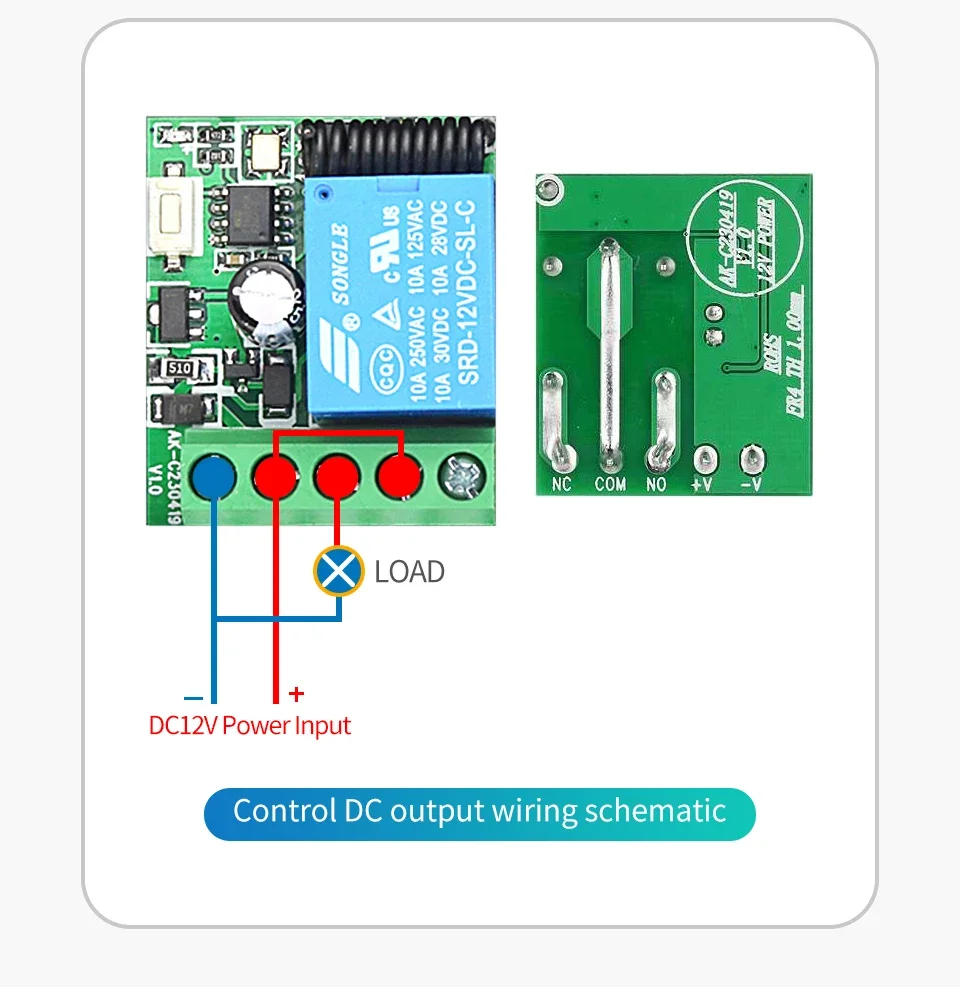

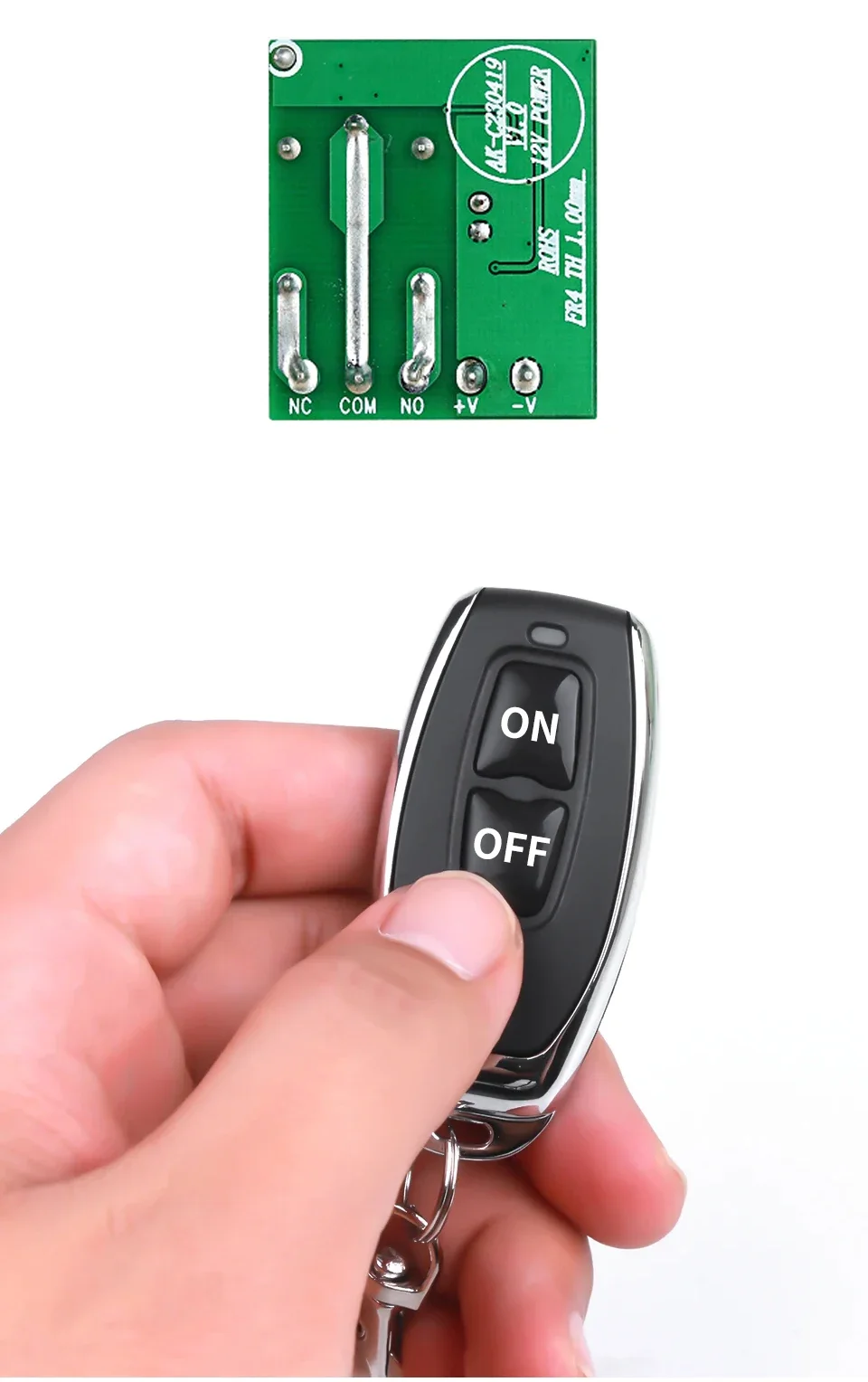

Input voltage: DC 12V Working current: 10A Maximum load power: 110W Frequency: 433Mhz Support encoding format: EV1527 Wiring method: NC COM NO Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

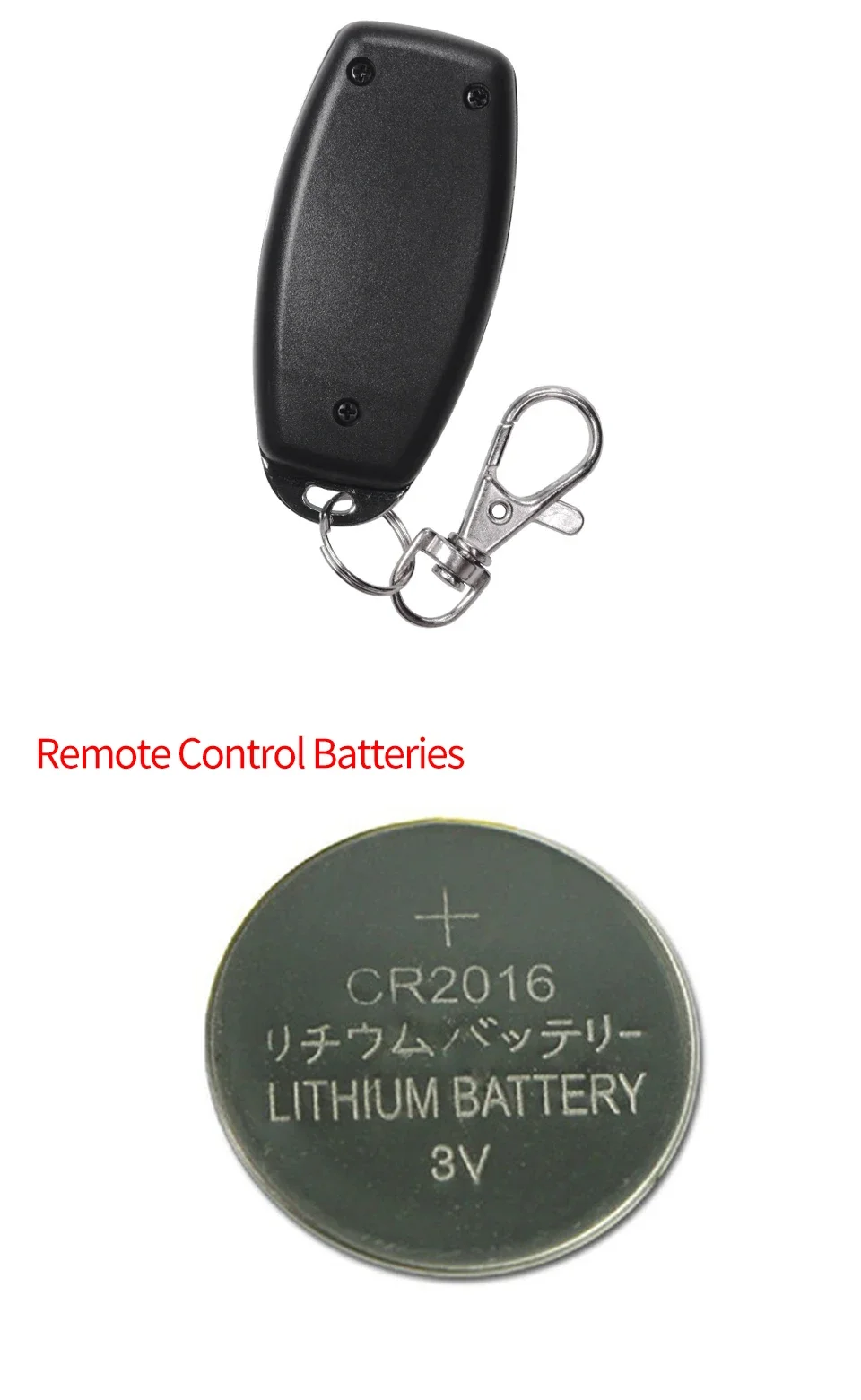

Specifications Of The Remote Control:

Operating RF Frequency: 433MHz. Coded System: 1527 Learning Code. Working Voltage: DC 3V. Working Current: <25mA Transmitting Power: 10mW. Wireless Operating Distance: 50m(Free Space). Transmission Rate: 50 ~ 60KHz. Frequency Deviation: +0.2MHz or -0.2MHz. Color: Black.
