Leedoar

Simulation Flash Light 12 LED Lighting Kit Steering Brake for RC Car 1/10 Scale Models Yokomo Tamiya HSP HPI AXIAL RC4WD TRX

Simulation Flash Light 12 LED Lighting Kit Steering Brake for RC Car 1/10 Scale Models Yokomo Tamiya HSP HPI AXIAL RC4WD TRX

$9.13
$12.50 $9.13
Sale Sold out


This 12 LED Lighting System Kit is suitable for 1/10 RC cars. It have four colors lights, include white headlights, blue taillights, red brake lights and yellow turn lights. With improved circuit board, it can support High-V receiver and normal receiver. And one set of lights can be controlled by the transmitter.
Features:
12 LED lights
Simulation car light
Simple and easy to use
Far flashing, super bright
Improved design of circuit board, HOSI power saving
Headlight white, blue taillight, brake light red, turn light yellow
Suitable for 1/10 RC cars

Specifications:

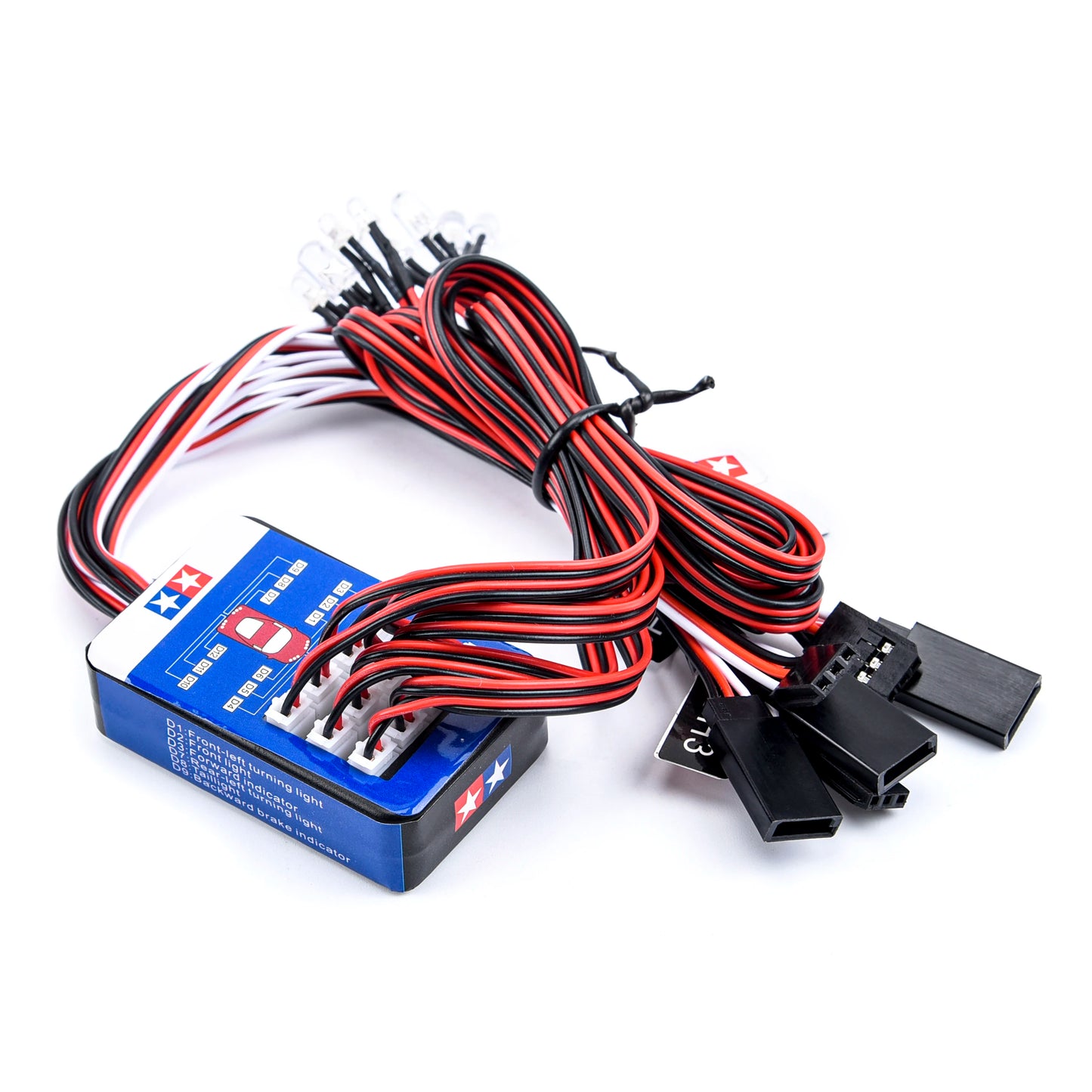

Name: 12 LED Lighting System Kit
Material: Plastic
LED bulb quantity: 12
Working Current: 100mA
Input voltage: 4.8V - 6.0V
Lights color: White, red, yellow, blue
Connection method: CH1 - Servo
CH2 - Speed controller
CH3 - Receiver
Suitable for: 1/10 RC cars
LED cable length: about 300mm
Circuit board size: 53 * 33 * 15mm
Weight: 57.2g

Lights Description:
Headlights:4 white LED lights
Connect the lighting system to the CH3 on receiver: the transmitter can independently control a group of lights, another group of lights are on when the car speed up; Not connect to the CH3 on receiver: one group of lights are always on, another group of lights are on when the car speed up.

Turn lights:4 yellow LED lights
With the remote control change the direction, the lights will synchronous flashing.

Taillights:2 blue LED lights, 2 red LED lights
The blue lights are always on. When the car speed up or brake, blue lights will go out. Only when brake, the red lights on.

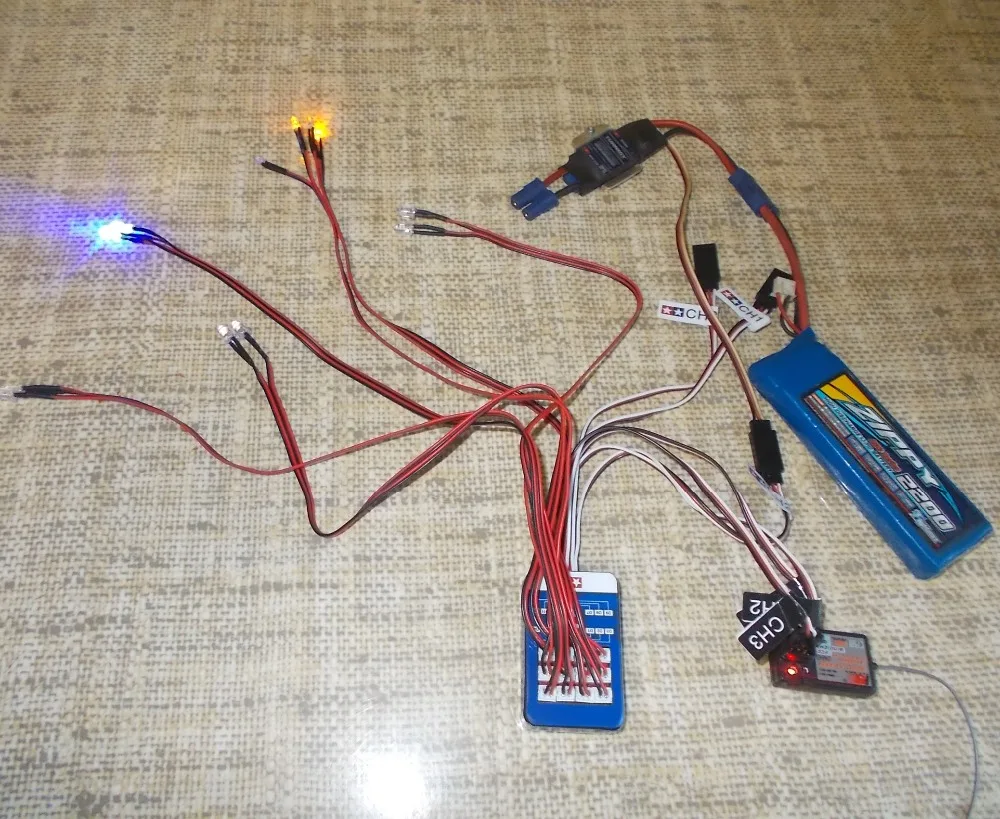

Installation Method:
CH2 Transmitter:
Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1 and CH2 to receiver.
CH3 Transmitter:
Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1, CH2 and CH3 to receiver.




Package Included:


1set x 12 LED Lighting System Kit
