Q1 Smart ATV Box Android 10 Allwinner H313 2GB 16GB Dual 2G 5G Wifi BT5.2 4K Media Player Android Set Top Box

5 Reasons to Choose Q1 Android TV Box

1) Ultra HD 4K output to TV

2) Android 10.0 TV Box

3) 4K video decoding and HDR10

4) dual band 2.4GHz and 5GHz WiFi

5) Allwinner H313 quad core

Feature

CPU: Allwinner H313 Quad core cortex-A53

GPU: Mali-G31 MP2

FLASH: 16GB

SDRAM: 2GB

Power Supply:DC 5V/2A

Case: Plastic material (Private model)

OS: Android TV 10.0

KODI:18.1

WIFI: 2.4G + 5G + BT5.2

Specification

P9-10 Profile-2 up to 4K@30fps

H.265 HEVC MP-10@L5.1 up to 4K@60fps

H.264 AVC HP@L5.1 up to 4Kx2K@30fps

H.264 MVC up to 1080P @60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

WebM up to VGA

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file

P9-10 Profile-2 up to 4K@30fps

H.265 HEVC MP-10@L5.1 up to 4K@60fps

H.264 AVC HP@L5.1 up to 4Kx2K@30fps

H.264 MVC up to 1080P @60fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

WebM up to VGA

Multiple language and multiple format sub-title video support

MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)

Supports JPEG thumbnail, scaling, rotation and transition effects

Supports *.mkv,*.wmv,*.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4, *.rm and *.jpg file

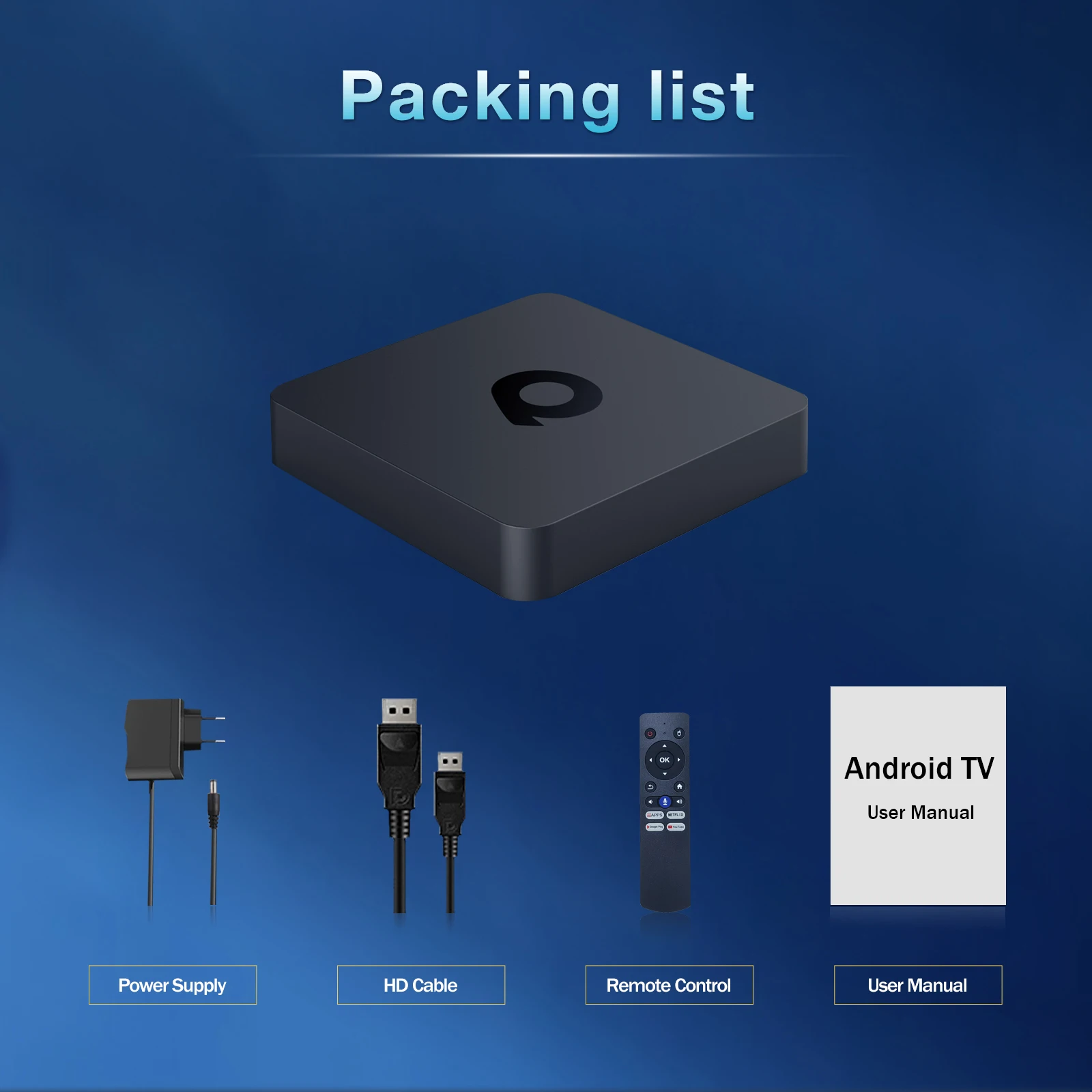

Packing List

1 x Q1 ATV Box
1 x Remote control
1 x power supply
1 x HD cable
1 x User Manual

Note : Battery is not included in the package !!!

High Performance SOC

1) CPU : 4 x Core Arm , Cortex-A53

2) GPU : GPU Arm , G31 MP2

3) Video Decoder : Up to 4K@60FPS

4) Wireless : Bluetooth 5.2, dual WiFi 2.4G/5G

Smart Voice Control

One click voice operation, say what you want

Wireless Bluetooth and WiFi

Dual band 2.4 & 5G Wifi faster network speed.

Bluetooth 5.2 compatible with multiple peripherals

Wonderful Multi-screen

Support mobile phone , tablets , etc to put video and photos on the big screen of the TV to share wonderful moments

HDR10 High Dynamic Range

Make the picture display more vivid and beautiful

4K Video Decoding

Up to 4K @ 60fps ultra high definition video decoding

Android TV OS 10.0

Android 10 is paired with Android TV applications for a more exciting and diverse experience

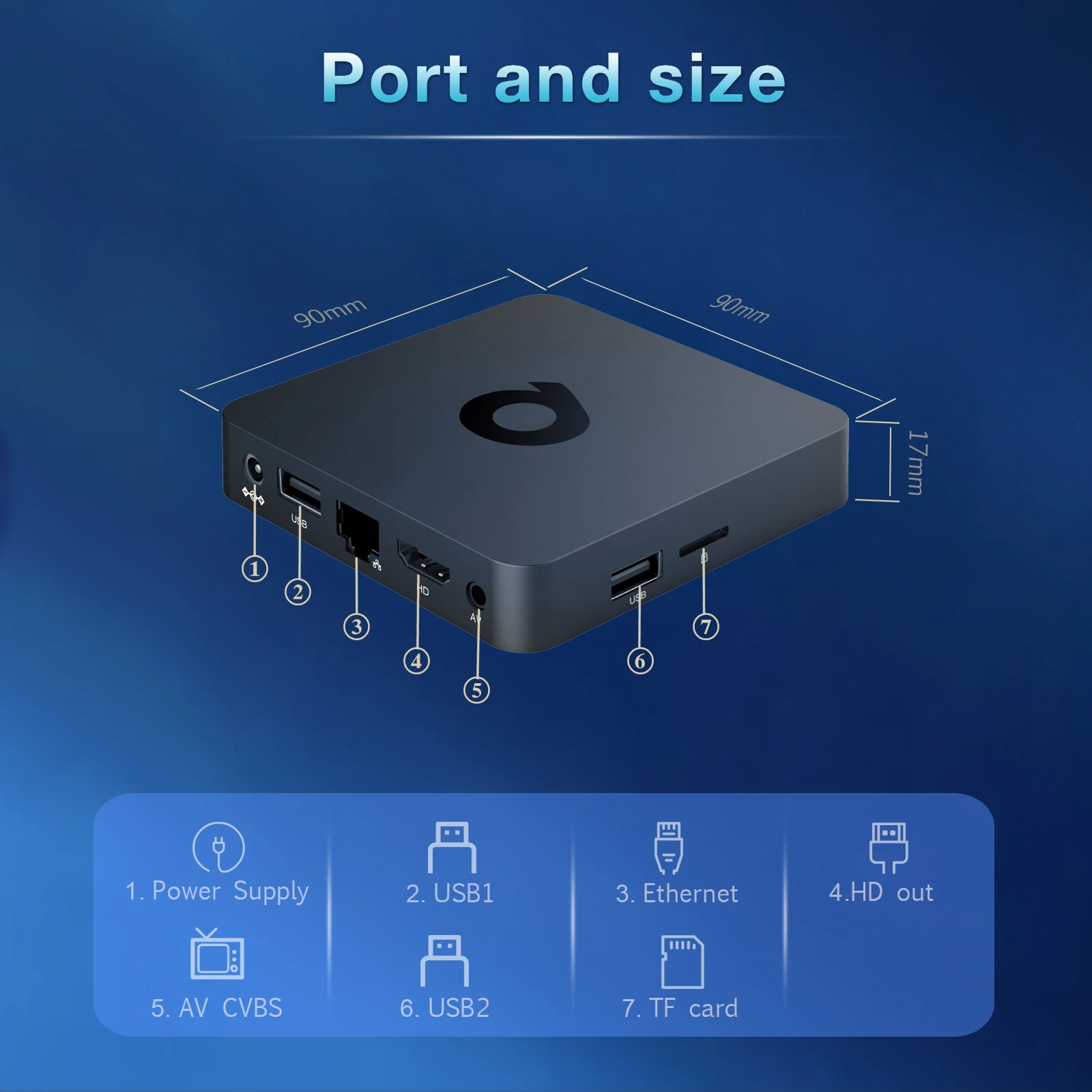

Port and Size

Size : 90mm * 90mm * 17mm

port:

1) Power Supply

2) USB1

3) Ethernet

4) HD Out

5) AV CVBS

6) USB 2

7) TF Card

Packing List

1 x Q1 ATV Box
1 x Remote control
1 x power supply
1 x HD cable
1 x User Manual

FAQ

1) Q : Does this support Mira and Apple?
A : NO

2) Q : Which RAM and how much storage does it have?
A : SDRAM:2GB

3) Q : Is it support wifi?
A : Yes
