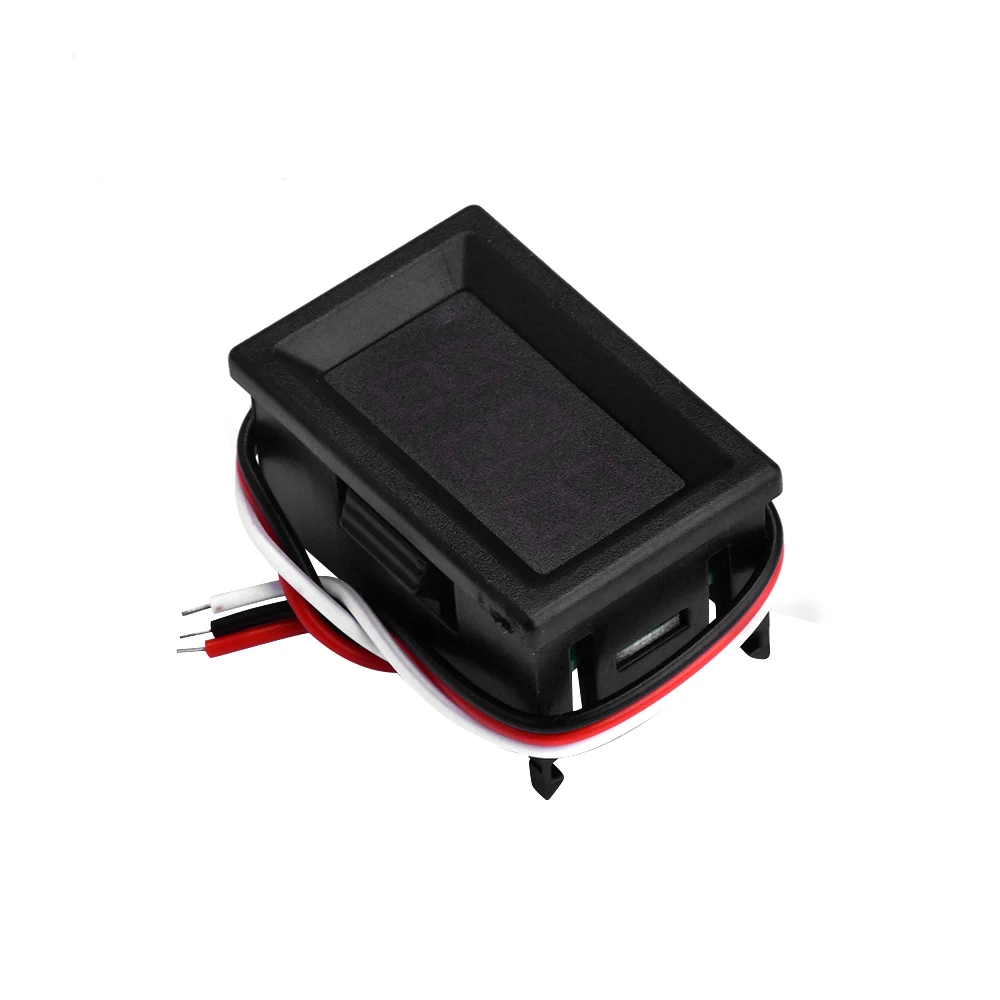

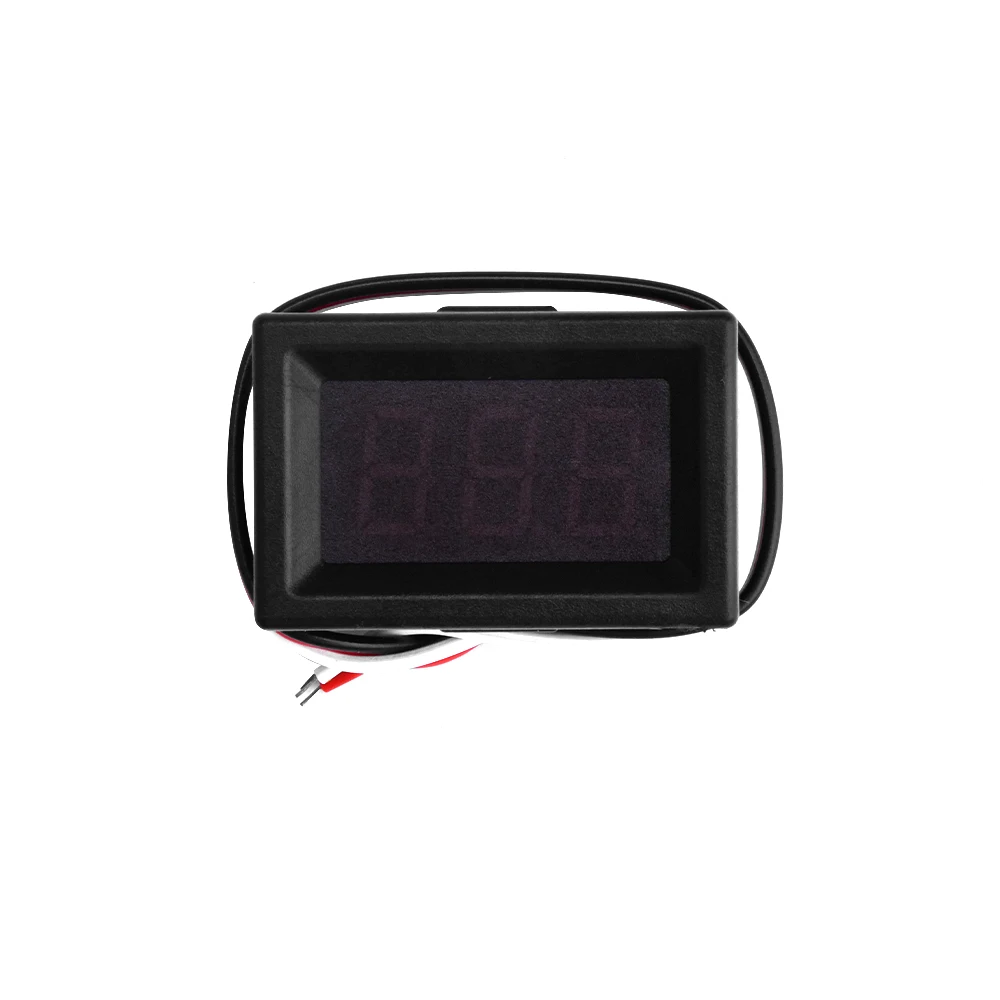

Mini 0.36 inch DC0-30V 3 bits Digital Red LED Display Panel Voltage Meter Voltmeter Tester 3 Cable for Car Motor Vehicle Tools

Mini 0.36 inch DC0-30V 3 bits Digital Red LED Display Panel Voltage Meter Voltmeter Tester 3 Cable for Car Motor Vehicle Tools

1. Using high-quality materials, durable

2. Low start working voltage

3. With reverse connection function, even if the positive and negative connections are reversed, it will not burn

4. High precision, stable and reliable

5. Wide range of applications

parameter:

Measuring range: DC0.00-30.0V

Power supply range: no need for additional power supply, directly use the tested voltage as the power supply, the range is the same as above

Limit input: DC30.0V

Note: Input voltage higher than 30V may be permanently damaged!

Allowable error: ±1%; when it is greater than or equal to 10V, the error is ±0.3V; when it is less than 10V, the error is ±0.10

Input Impedance: > 100K ohms

Refresh rate: about 300mS once

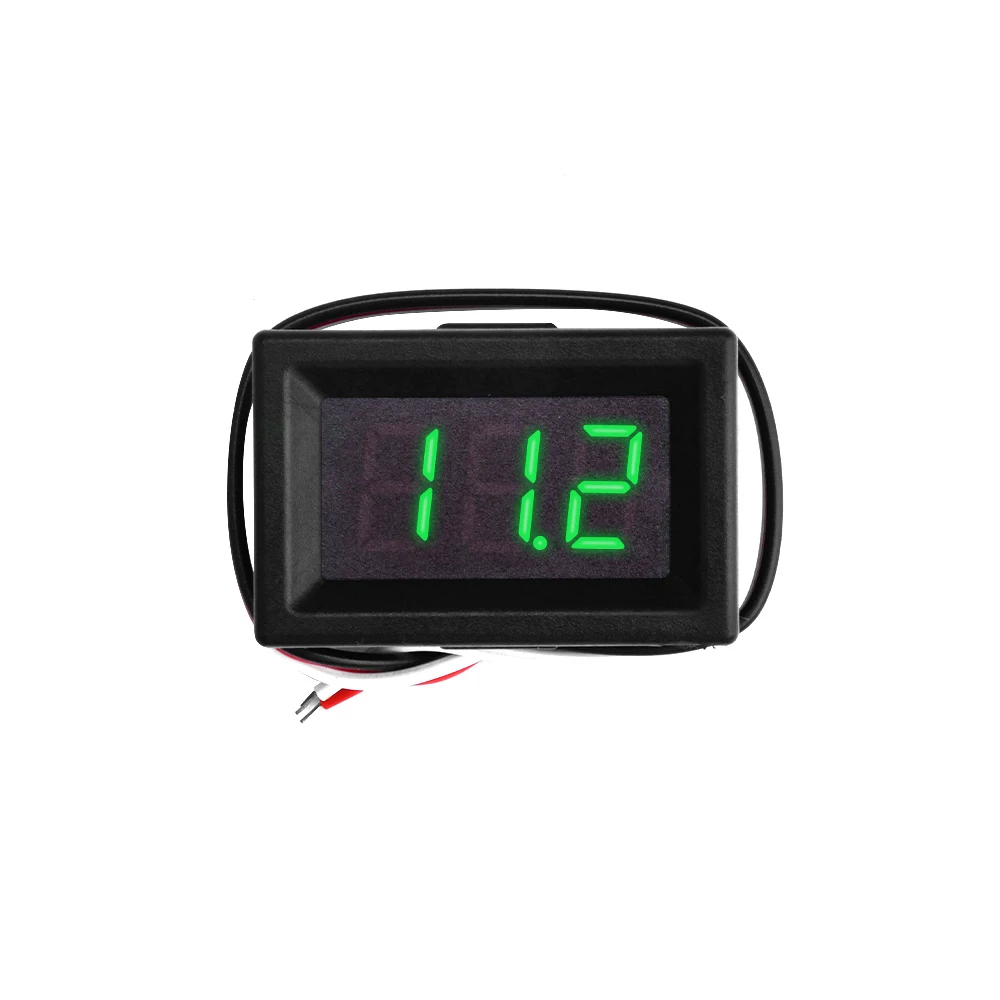

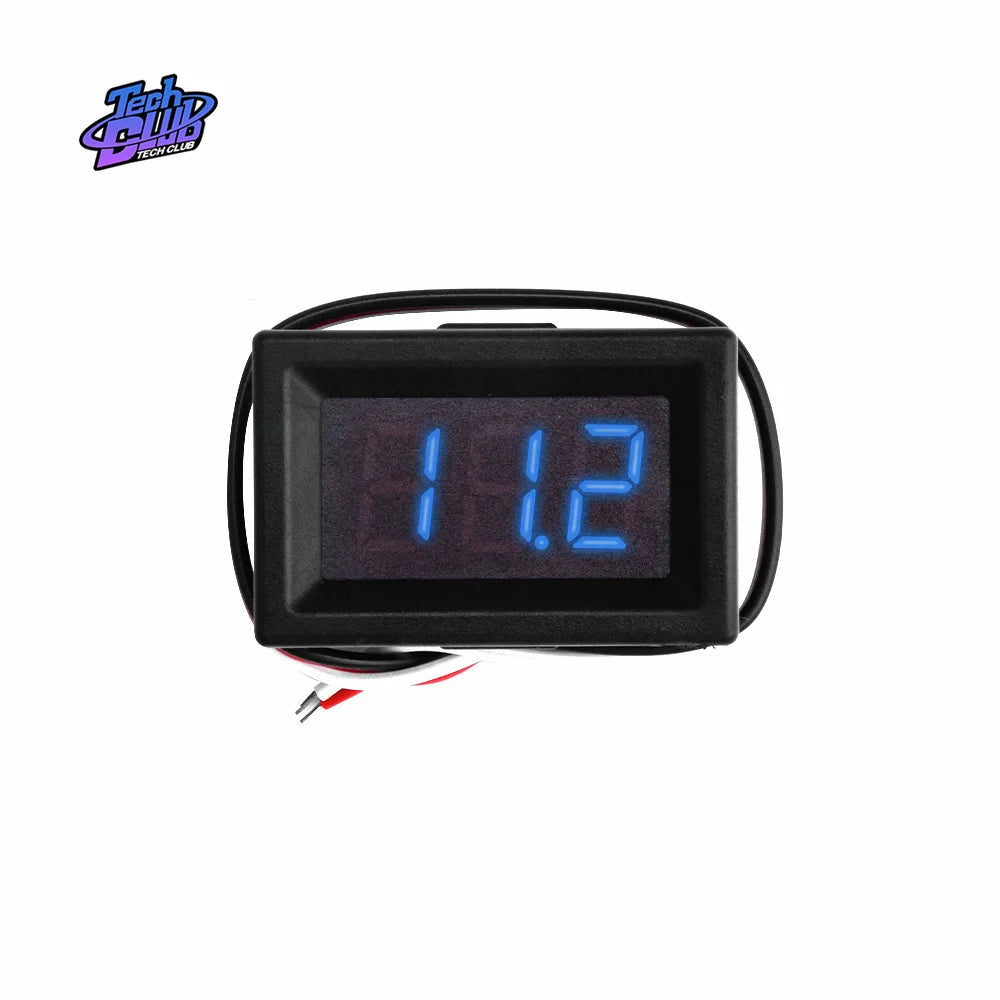

Display mode: three "0.36" LED digital tube

Display color: red, green, blue, yellow-green optional

Lead length: 20cm

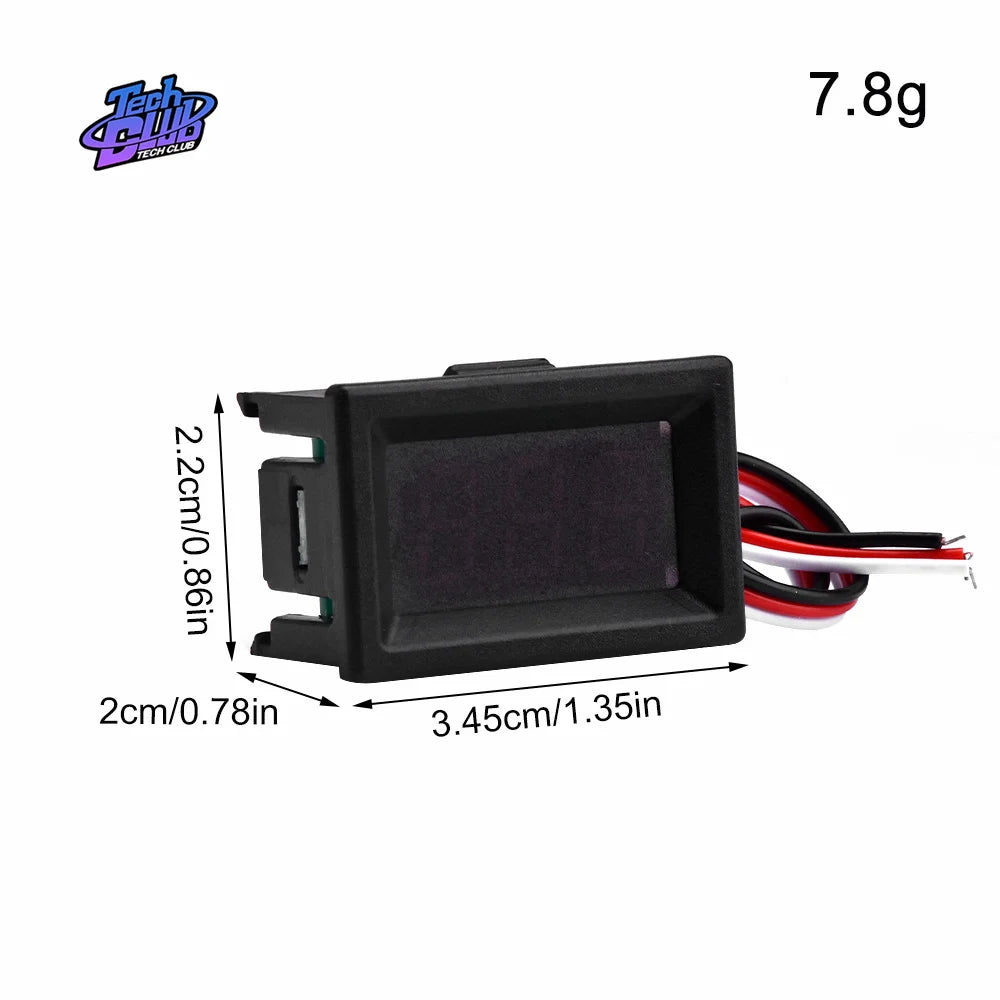

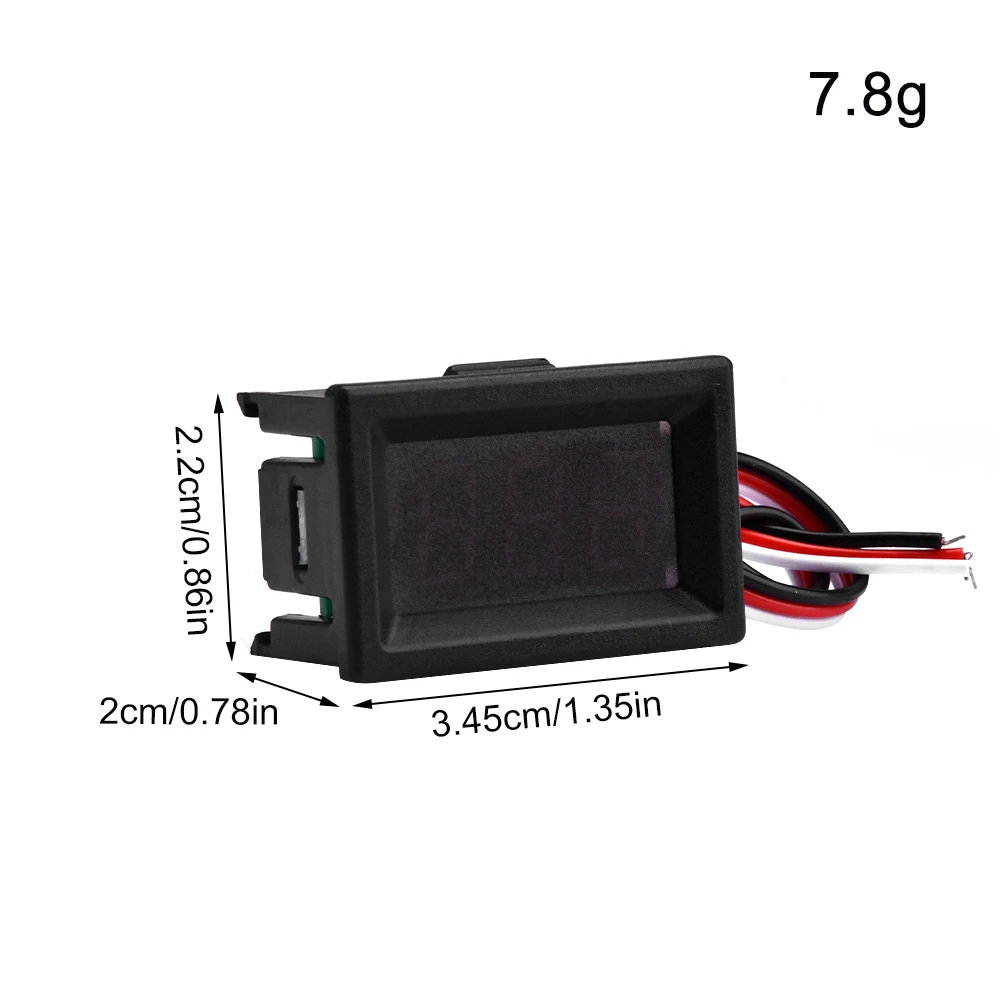

Dimensions: 35 x 23 x 20 mm

Cutout size: 32 x 22 mm

Working temperature: -10℃~65℃

Package list:

0.36 inch 3-wire DC voltmeter*1
