MAK4 V2 MARK4 FPV Drone Frame KIT 8/9/10inch 367/387/427mm Carbon Fiber For RC FPV Freestyle Long Range Racing Drone Quadcopter

3K Carbon Fiber Frame MARK4 V2 8inch 367mm 9inch 387mm 10inch 427mm WheelBase RC FPV Freestyle Racing Drone Frame Kit

Description:

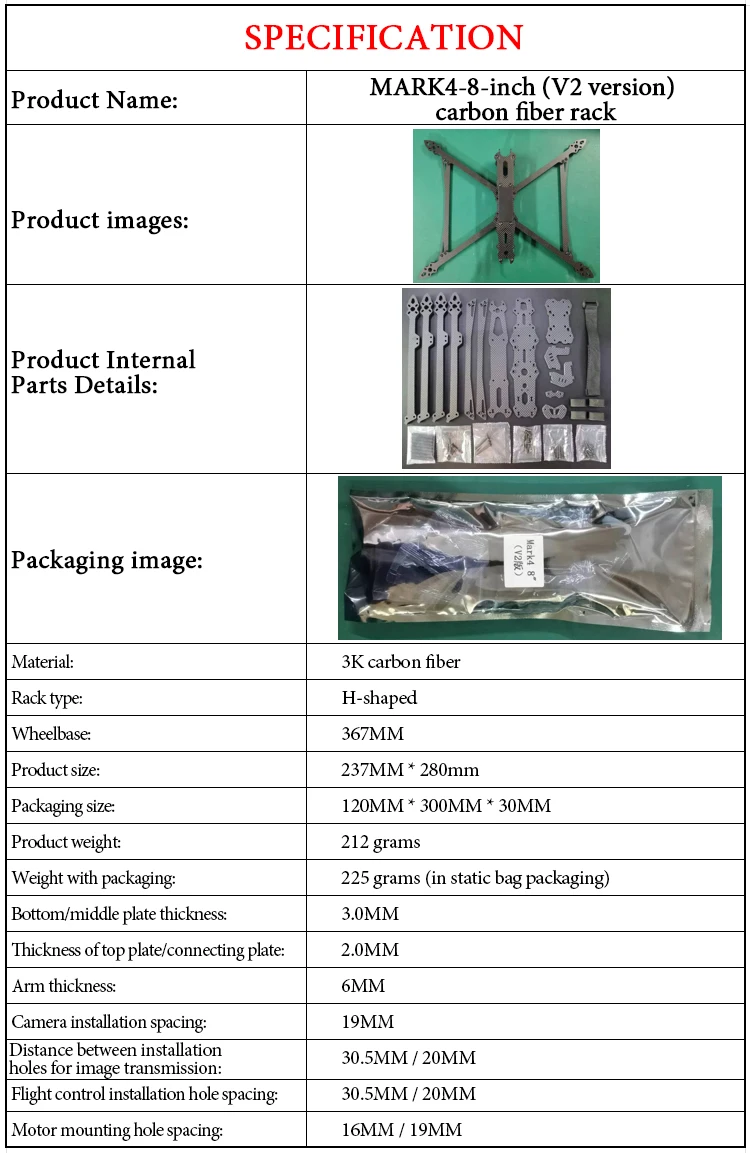

Model: MAK4 V2 8inch
Wheelbase: 367mm
Weight: about 214g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

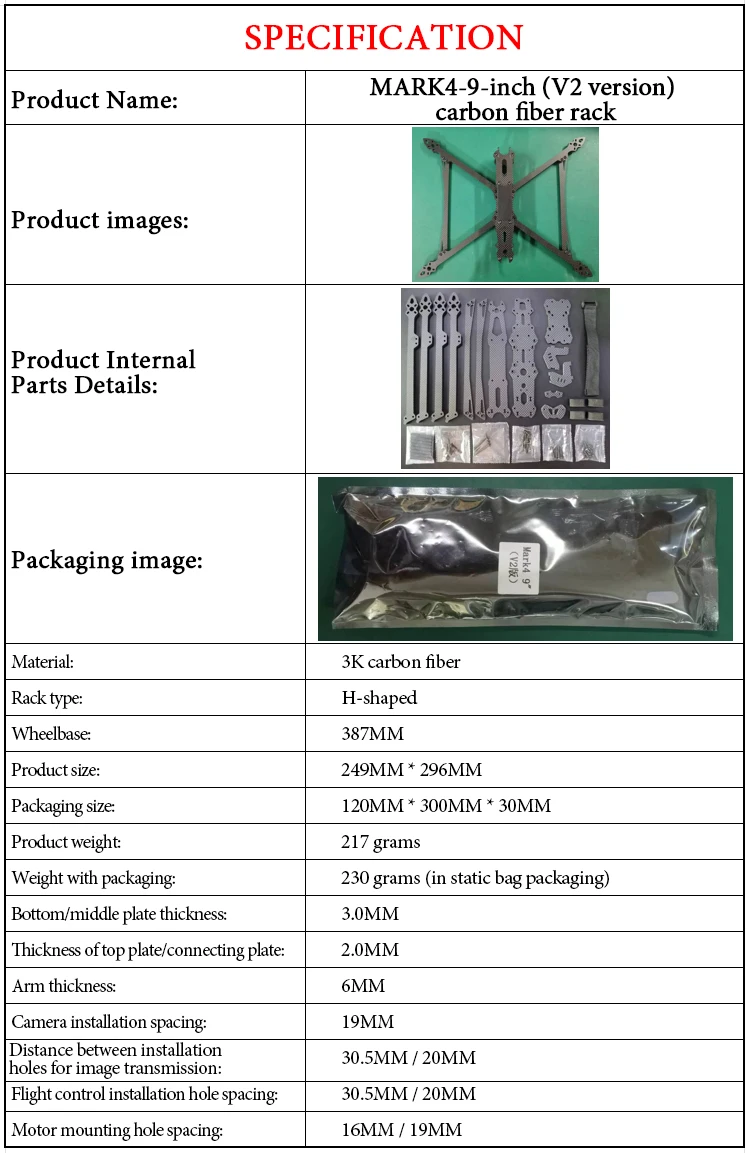

Model: MAK4 V2 9inch
Wheelbase: 387mm
Weight: about 220g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm

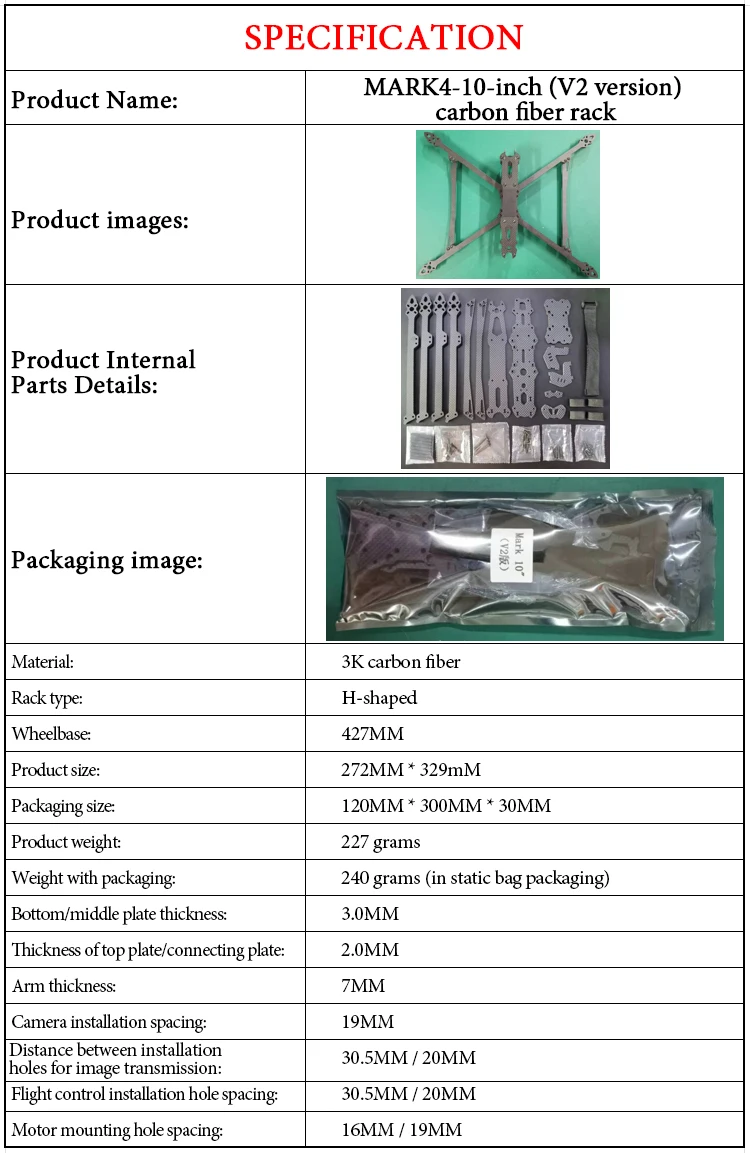

Model: MAK4 V2 10inch
Wheelbase: 427mm
Weight: about 227g
Thickness of bottom plate: 3mm
Thickness of top plate: 2mm
Thickness of camera arm: 6mm
Camera side panel thickness: 2.5mm
Camera mounting hole spacing: 19 mm
Mapping mounting hole spacing 20*20mm & 30.5*30.5mm
Flight Control Mounting Pitch: 30.5*30.5mm
Inner space height: 35mm
Motor mounting hole pitch: 16*16mm & 19*19mm
