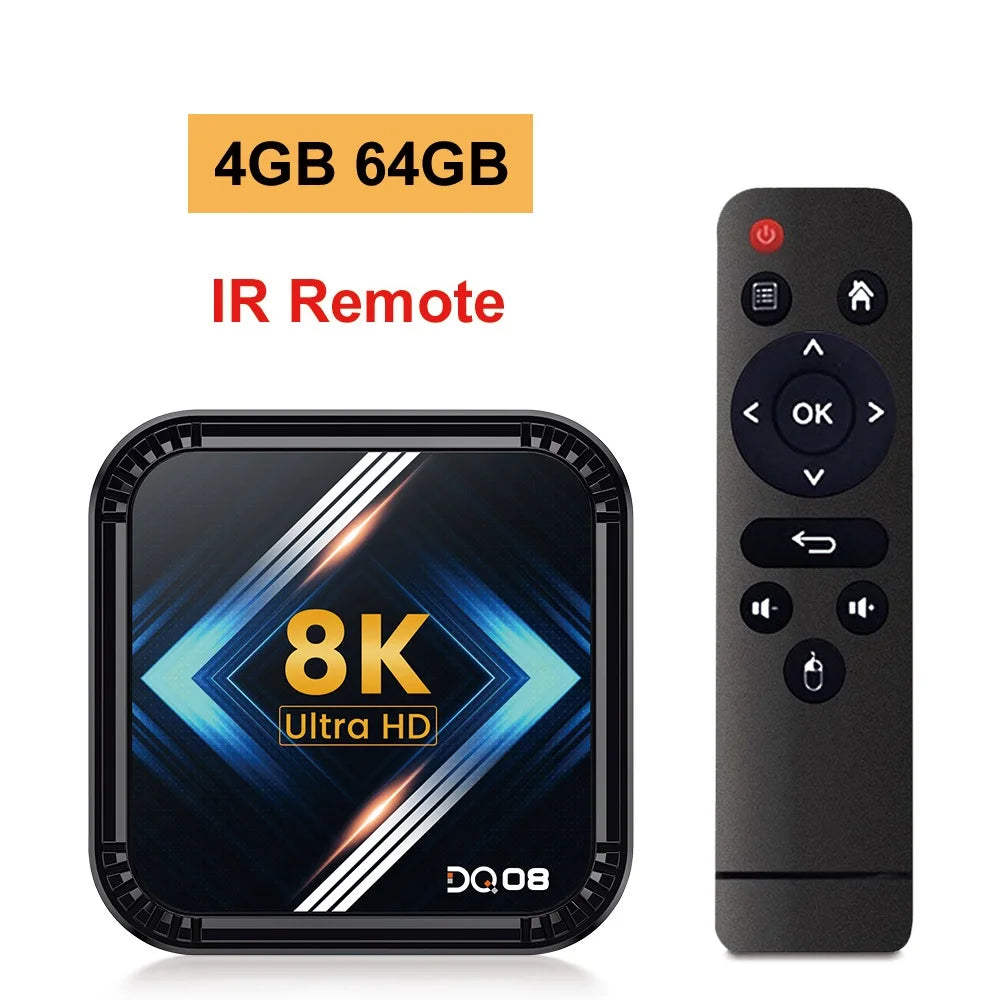

DQ08 RK3528 Smart TV Box Android 13 Quad Core Cortex A53 Support 8K Video 4K@60fps HDR10+ 2.4&5G Dual WifiBT4.0 Google Voice
DQ08 RK3528 Smart TV Box Android 13 Quad Core Cortex A53 Support 8K Video 4K@60fps HDR10+ 2.4&5G Dual WifiBT4.0 Google Voice
DQ08 RK3528 Smart TV Box Android 13 Quad Core Cortex A53 Support 8K Video 4K@60fps HDR10+ 2.4&5G Dual WifiBT4.0 Google Voice 2G16G 4G 32G 64G
Note: DQ08 have two remote control for choose, one is IR remote, another is BT Remote, please choose the right one you like!
Basic parameters | |||
CPU |
Chipset |
Rockchip RK3528 |
|
Architecture |
Quad Core ARM Cortex A53 |
||
GPU |
Chipset |
Mali-450 |
|
Storage |
RAM |
2GB/4GB |
|
ROM |
16GB/32GB/64GB |
||
External Storage |
USB Storage Devices |
Supported |
|
Software | |||
Operating system |
OS Version |
Android 13 |
|
Language |
Multi-Language |
||
Multimedia |
Video |
Video Decoder: |
|
Real-time video decoder of MPEG-1, MPEG-2, MPEG-4 H.263, H.264/AVC, H.265/HEVC, MVC VC-1 AVS, AVS+,AVS2 | |||
H.265 HEVC/MVC Main10 L6.1 : 8K@25fps (7680x4320) | |||
H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K @ 60fps | |||
H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K @ 60fps | |||
AVS2 4KX2K @60fps | |||
MPEG-1, Main profile, up to 1080P @ 60fps | |||
MPEG-2, SP@ML, MP@HL, up to 1080P @ 60fps | |||
MPEG-4, ASP profile @ level 5, up to 1080P @ 60fps | |||
AVS, Jizhun profile @ level 6.0; up to 1080P @ 60fps | |||
AVS-P16 (AVS+), up to 1080P @ 60fps | |||
H.263, up to 576P @ 60fps | |||
VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P @ 60fps | |||
Video Encoder: | |||
Support HDMI 2.0b output up to 4K 10bit @60Hz | |||
TV interface: TV encoder 10bit out for DAC | |||
HDMI interface: | |||
24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444) | |||
Max output resolution 4K for HDMI, 480i/576i for CVBS | |||
Support 1 cluster layer, 4 smart layer | |||
Support HDR10, HLG HDR, Vivid HDR | |||
Audio |
MP3, AAC, WMA, FLAC, Ogg. |
||
Image |
HD JPEG、BMP、GIF、PNG、TIF |
||
Network service | |||
Wi-Fi |
Type |
IEEE802. a/b/g/n/ac /ax |
|
Frequency |
2.4G+5.8G Wifi |
||
Antenna Type |
Inside antennas |
||
BT |
BT |
BT4.0 |
|
Interface | |||
Charge |
DC connector |
DC 5V 2A |
|
Video output |
HD |
1* 4K 2K Output, HD 2.0a |
|
AV |
1* AV |
||
Ethernet |
Ethernet |
1*100MRJ45 |
|
TF Card |
External memory |
1* TF Card |
|
USB port |
USB Host |
1* USB 2.0+1*USB 3.0 |
|
Upgrade |
KEY |
Update firmwareby PC |
-1 x DQ08 Box
-1 x Remote control
-1 x Power Supply(5V/2A)
-1 x HD Cable
-1 x User Manual
