Colorful atmosphere light plus water fan desktop cooling fan USB office home desktop spray water cooling fan mini air conditioni

Desktop cooling fan

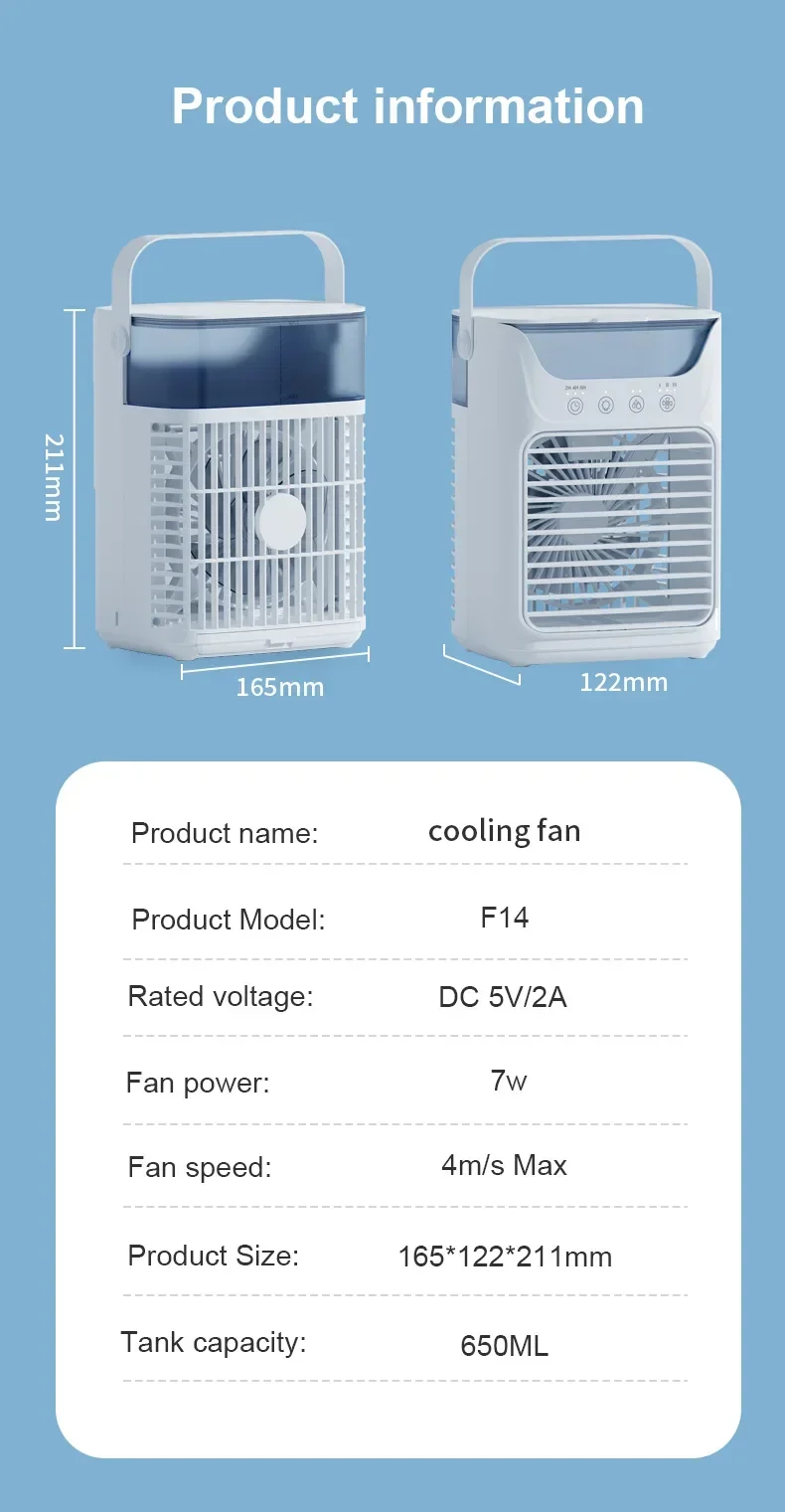

Product size (cm): 16.5 * 12.2 * 21.1cm

Color box packaging size (cm): 18 * 14 * 22.5cm

Net weight: 642g

Single item weight (including accessories and color box): 780g

Outer packaging box size (m): 0.58 * 0.55 * 0.24m 12 11.5kg

Input voltage (V): DC-5V/2A

Maximum power (W): ＜ 7W

Working current (mA): (voltage 5V)

RGB color light: ≤ 60mA

High grade atomization: 200mA ± 20% Low grade atomization: 100mA ± 20%

1st gear wind speed: 250mA ± 10% 2nd gear wind speed: 450mA ± 10% 3rd gear wind speed: 760mA ± 10%

RPM: 1st gear: 2150RPM ± 10% 2nd gear: 2750RPM ± 10% 3rd gear: 3200RPM ± 10%

Wind speed (m/s): (Test distance: 20cm) 1st gear: 2.8m/s ± 10% 2nd gear: 3.8m/s ± 10% 3rd gear: 4.2m/s ± 10%

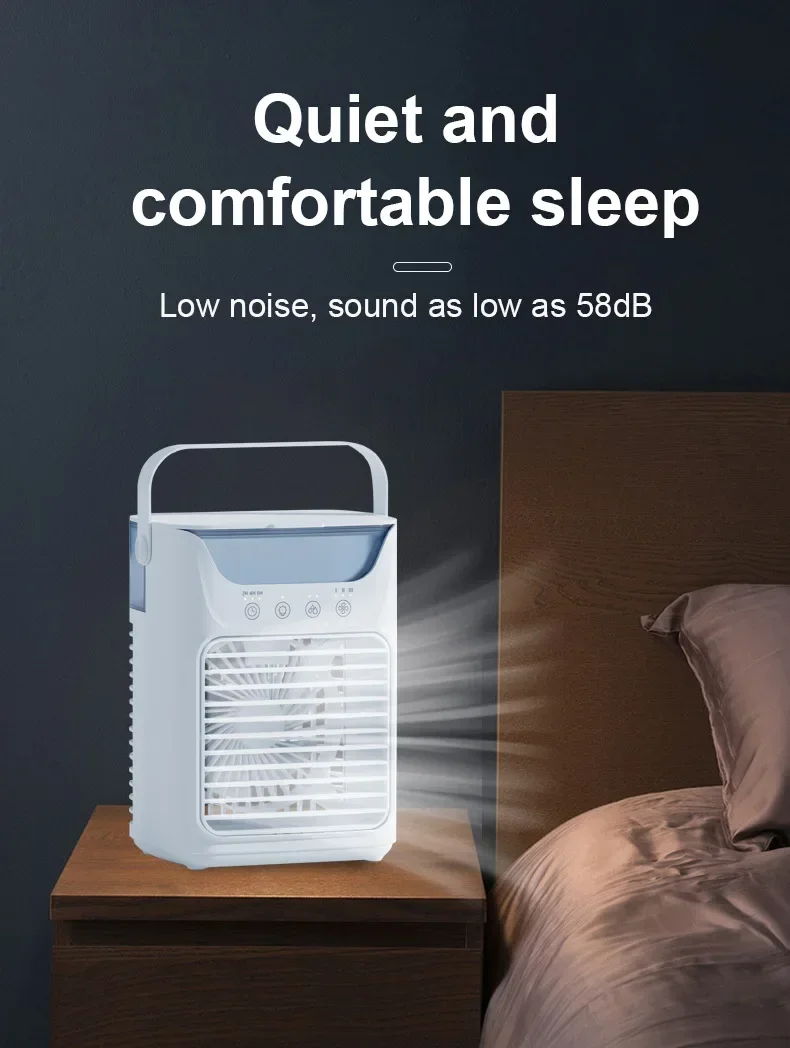

Noise (dB): ＜ 58dB (Note: Test distance 50cm)

Spray volume: high-grade spray volume: 60mL/H ± 15mL/H low-grade spray volume: 40mL/H ± 15mL/H

3, Function button description:

Insert the TYP-C power cord, and all indicator lights of the machine will flash for self check once;

1. Open key/gear

Short press to switch wind speed gear: 1st gear -2nd gear -3rd gear - OFF cycle, default to 1st gear wind start when turned on, default to low gear atomization on, default to atmosphere light on, and corresponding gear indicator light on;

2. Atomization key:

Short press to switch the atomization gear: low atomization - high atomization - off, and the corresponding atomization gear indicator light will light up;

3. Light key:

Short press to switch lighting mode: Colorful gradient of colored lights - Colorful color setting of colored lights - Turn off the lights, and the light indicator light will light up

4. Timer key:

Short press switch timing setting: 2H-4H-6H-OFF cycle; The corresponding timed gear indicator light is on;

5. Water level detection function:

Built in water level detection function: When the water level in the water tank drops to the bottom during atomization operation, the detection copper foil at the bottom of the water tank will detect no water, and the atomization level indicator light will flash three times before turning off the atomization function;

Product selling points:

1.4-inch six blade flexible fan blade, maximum wind speed 4.0M/s 2.700ML large capacity water tank, one tank of water can be used for 10 hours

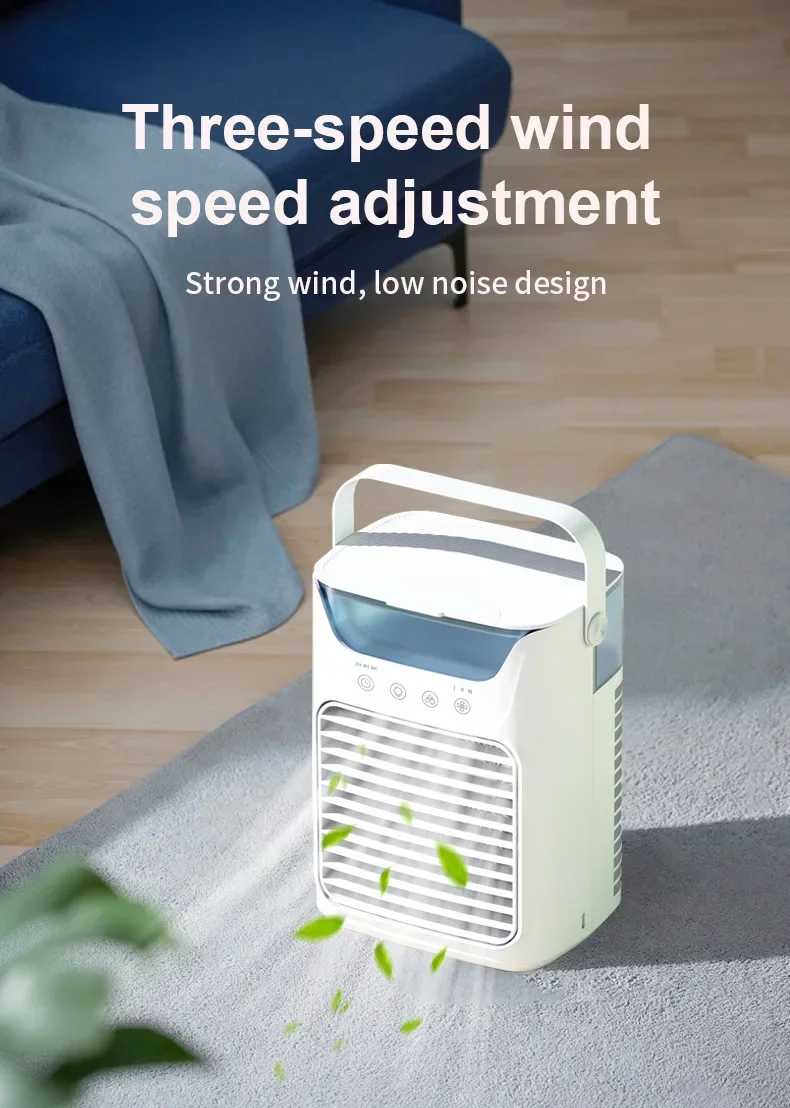

3. Three levels of wind speed, adjustable up and down, two levels of atomization

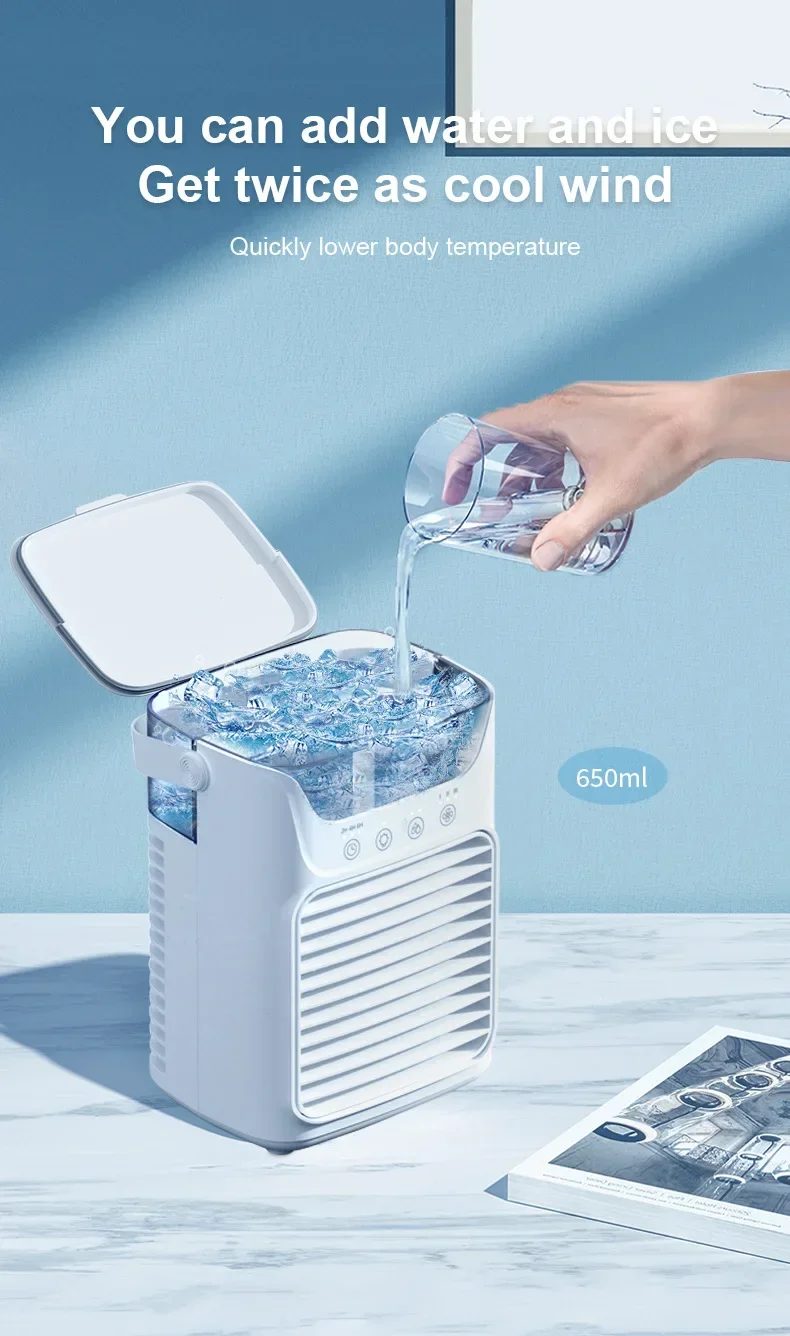

4.4. The large opening can clean the water tank, making it easy to add water and ice. The silicone ring on the water tank cover is leak proof, and the bottom is connected to a water tray.

5. Four key touch design, colorful ambient light for water tank, high-end PU leather handle.
