ANENG 683 Touch Screen Smart Digital Multimeter 6000 Counts AC/DC Ammeter Voltmeter Rechargeable Ohm Diode NCV Multimeter Tester
ANENG 683 Touch Screen Smart Digital Multimeter 6000 Counts AC/DC Ammeter Voltmeter Rechargeable Ohm Diode NCV Multimeter Tester

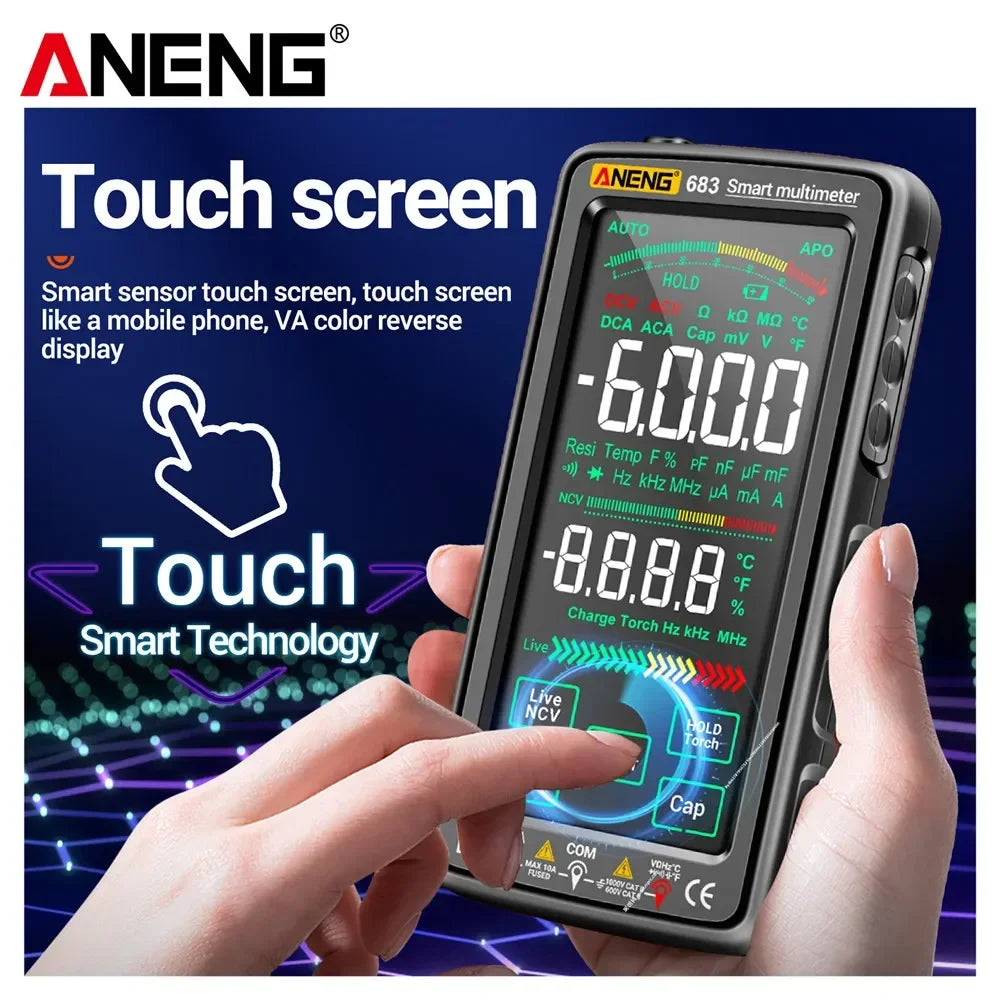

Touch Screen & LCD VA Color Reverse Display: smart sensor touch screen, easy to operate. VA color reverse display and 6000 counts max. display, with data hold function, clear to read the measured value at various working environments.

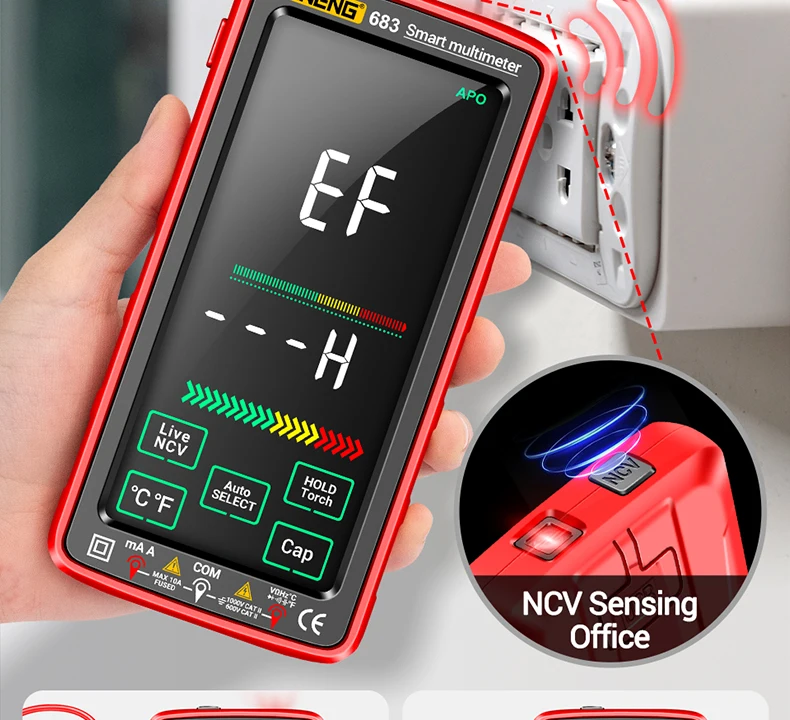

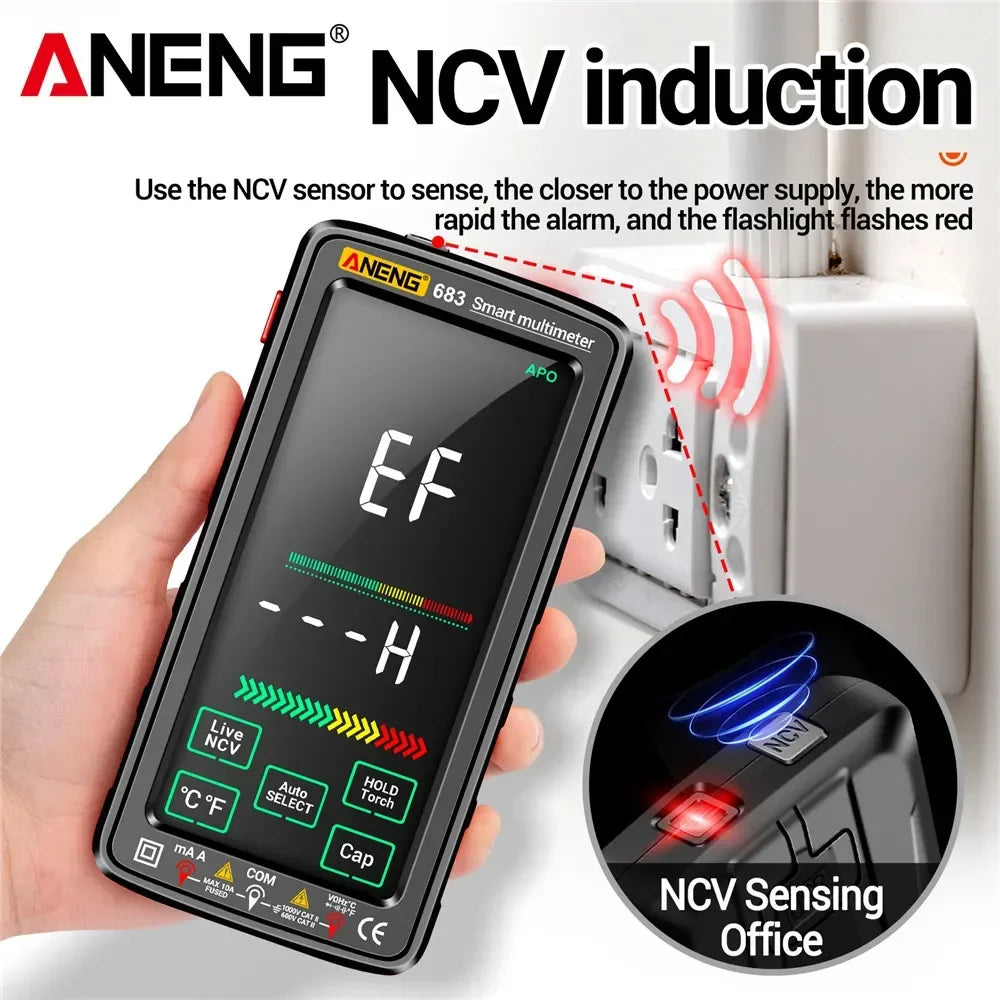

NCV Non-contact Induction: use the NCV sensor to sense, the closer to the power supply, the more rapid the alarm, and the flashlight flashes red.

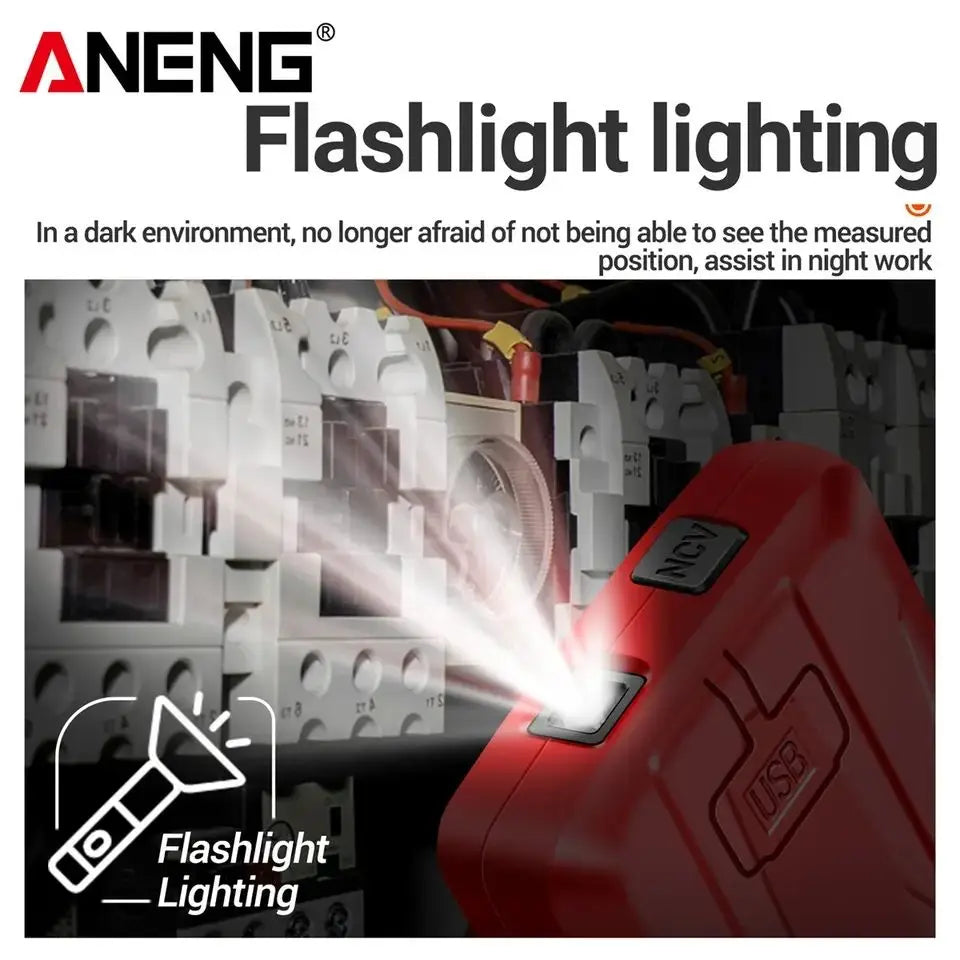

Flashlight Lighting up the Front: in a dark environment, you are no longer afraid of not being able to see the measured position, it is a good assistant in night work.
Soft Silicone Wire: high quality test lead wire is tensile and resistant to high temperature, feature of anti-freezing and anti-burning.

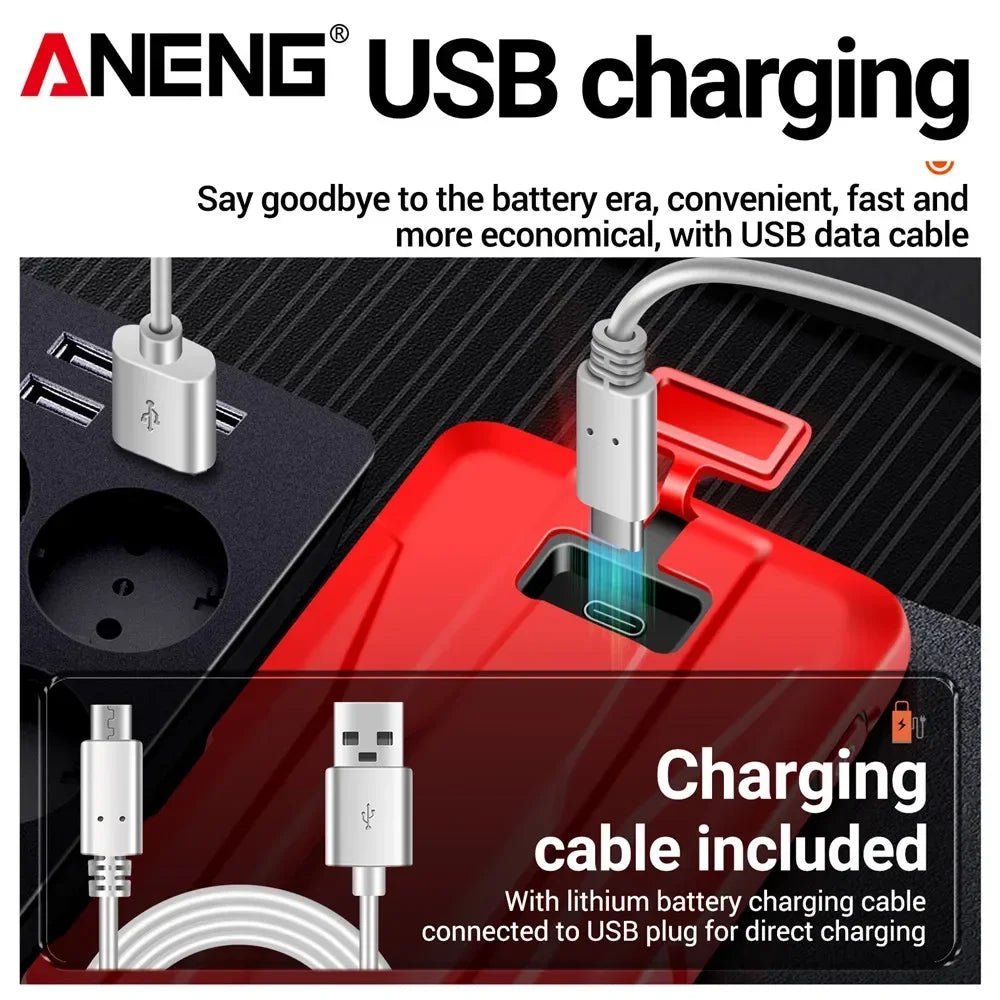

Built-in Rechargeable Lithium Battery: no need to buy and replace batteries again, equipped with a type-C cable for charging, safer and more convenient.
Silicone Protective Sleeve: wrapped with a silicone protective sleeve to effectively prevent falling, and protect the multimeter from damage. Shockproof and scratch resistance.
Specifications:
AC Voltage: 0-750V
DC Voltage: 0-1000V
AC Current: 0mA-10A
DC Current: 0mA-10A
Resistance: 0Ω-60MΩ
Capacitance: 0nF-100mF
Hz: 0Hz-999.9kHz
Temperature: -40~1000℃ / -40~1832℉
NCV Induction: Yes
Zero Fire Line: Yes
Duty Cycle%: Yes
Buzzer: Yes
Diode: Yes
Flashlight: Yes
Automatic Power-off: Yes
Data Hold: Yes
Low Battery Indication: Yes
Color: Black / Red (Optional)
Material: ABS+silicone
Max. Count: 6000 counts
Display: VA color display
Screen: Touch screen
Built-in Battery: 3.7V 2800mAh lithium battery
DC Voltage:
Measuring Range |
Resolution |
Accuracy |
6V/60V |
0.001V/0.01V |
+-(0.5% readings+3digits) |
600V/1000V |
0.1V/1.0V |
+-(0.8% readings+10digits) |
AC Voltage:
Measuring Range |
Resolution |
Accuracy |
6V/60V |
0.001V/0.01V |
+-(0.8% readings+3digits) |
600V/750V |
0.1V/1.0V |
+-(1.0% readings+10digits) |
AC and AC Current
Measuring Range |
Resolution |
Accuracy |
6000mA |
1mA |
+-(1.0% readings+5digits ) |
10A |
0.01A |
+-(2.5% readings+10digits ) |
Resistance
Measuring Range |
Resolution |
Accuracy |
600Ω/6kΩ/60kΩ/600kΩ |
0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ |
+-(0.8% readings+3digits) |
6MΩ |
0.001MΩ |
+-(1.2% readings+3digits) |
60MΩ |
0.01MΩ |
+-(2.5% readings+5digits) |
Capacity
Measuring Range |
Resolution |
Accuracy |
60nF/60nF/6uF/60uF/600uF/6mF |
0.01nF/0.1nF/0.001uF/0.01uF/0.1uF |
+-(4.0%Readings+20 digits) |
60mF |
0.01mF |
+-(5.0%Readings+5 digits) |
100mF |
0.1mF |
for reference |
Frequency
Measuring Range |
Resolution |
Accuracy |
9.999Hz/99.99Hz/999.9Hz |
0.001Hz/0.01Hz/0.1Hz |
+-(0.8% readings+3digits) |
9.999kHz/99.99kHz/999.9kHz |
0.001kHz/0.01kHz/0.1kHz |
+-(0.8% readings+3digits) |
Temperature
Measuring Range |
Resolution |
Accuracy |
-40℃-300℃ |
+-(1.0%+4d) |
1℃ |
301℃-1000℃ |
+-(1.9%+5d) |
1℃ |
-40 °F -600 °F |
+-(1.2%+6d) |
1°F |
601 °F -1832 °F |
+-(1.9%+6d) |
1°F |
Diode Test |
Yes |
Circuit on/off Test |
Yes |
Data Hold |
Yes |
Automatic power off |
Yes |
Torch |
Yes |
NCV Test |
Yes |
Buzzer |
Yes |
Firing line Test |
Yes |

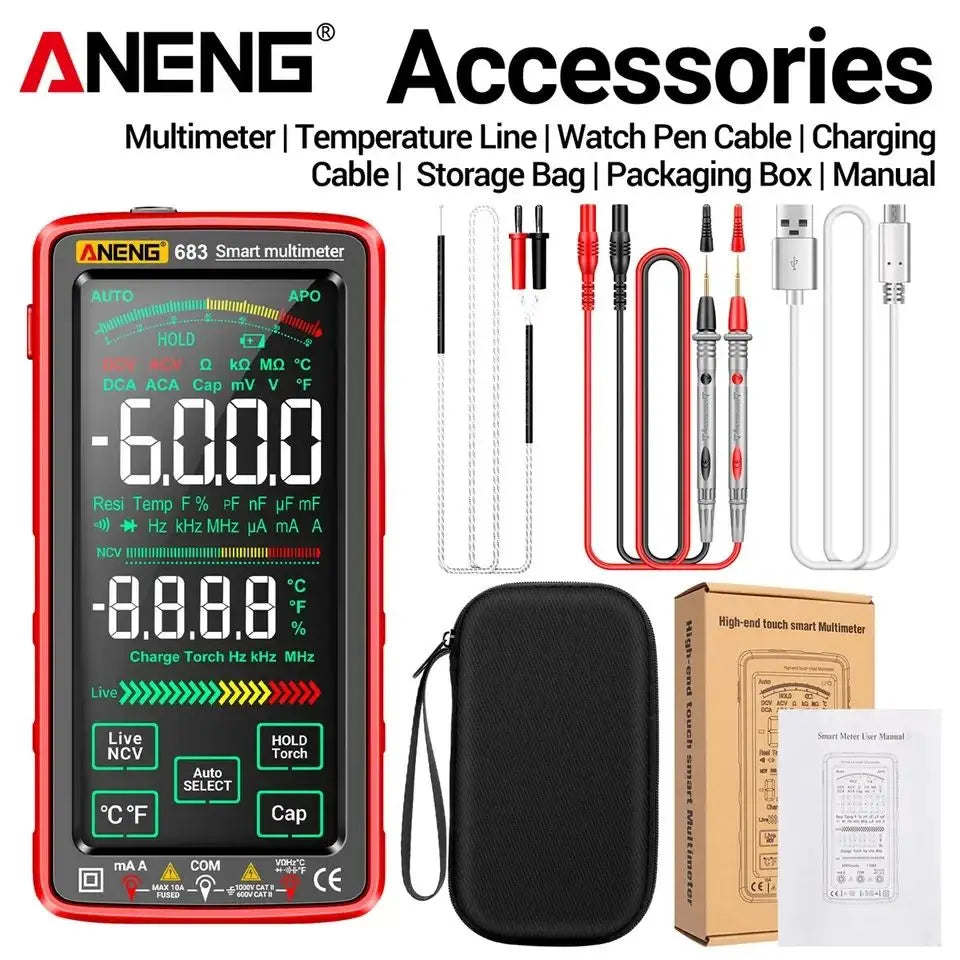

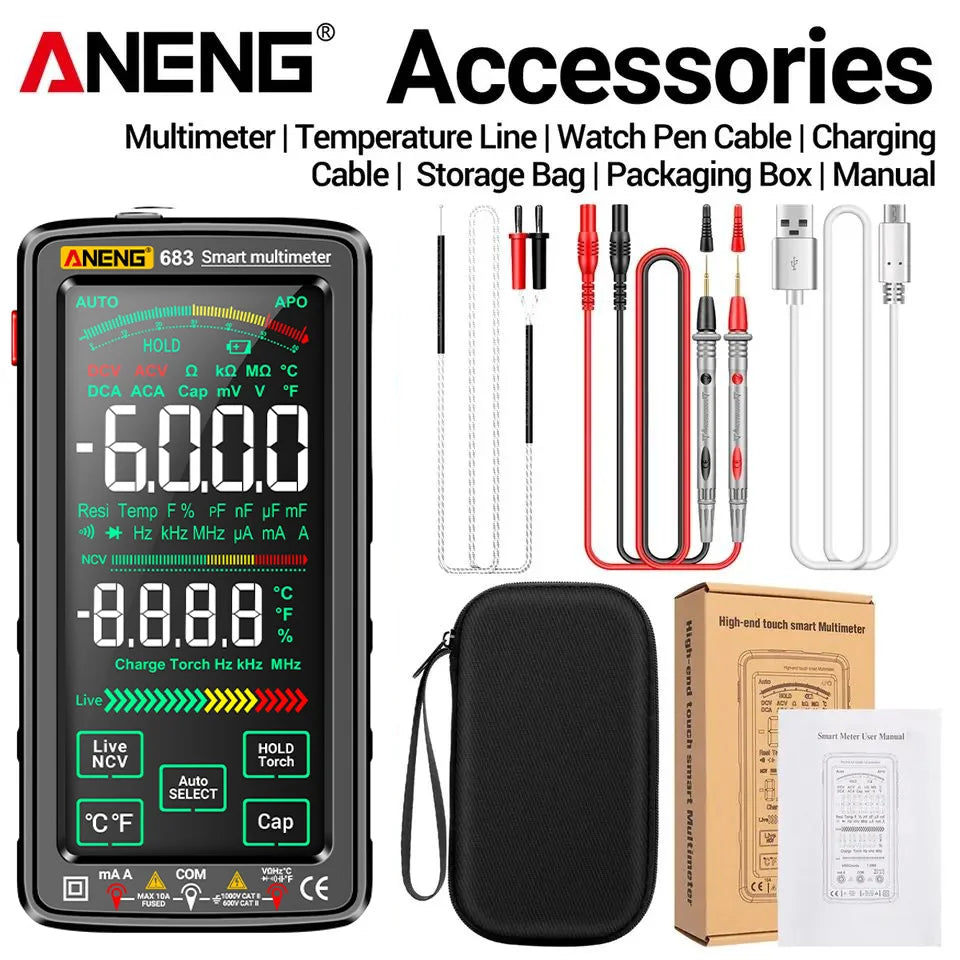

Package Included:
