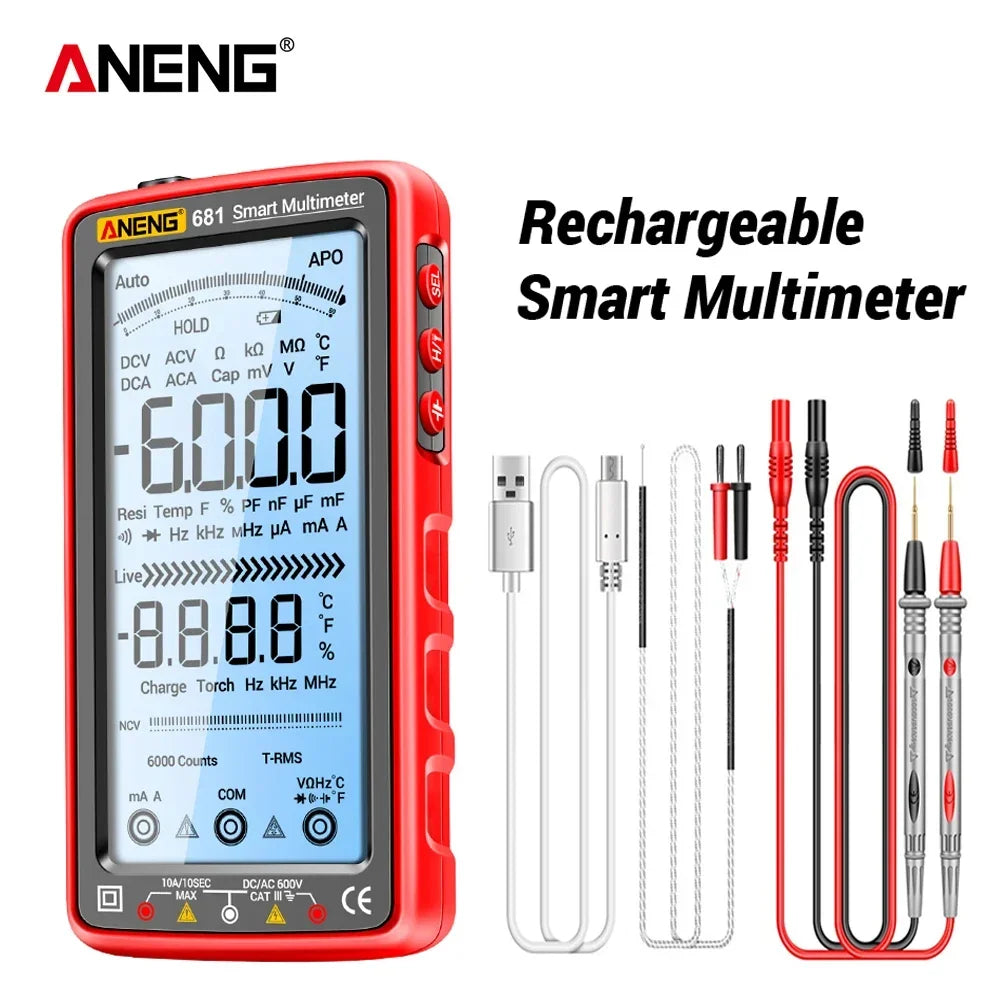

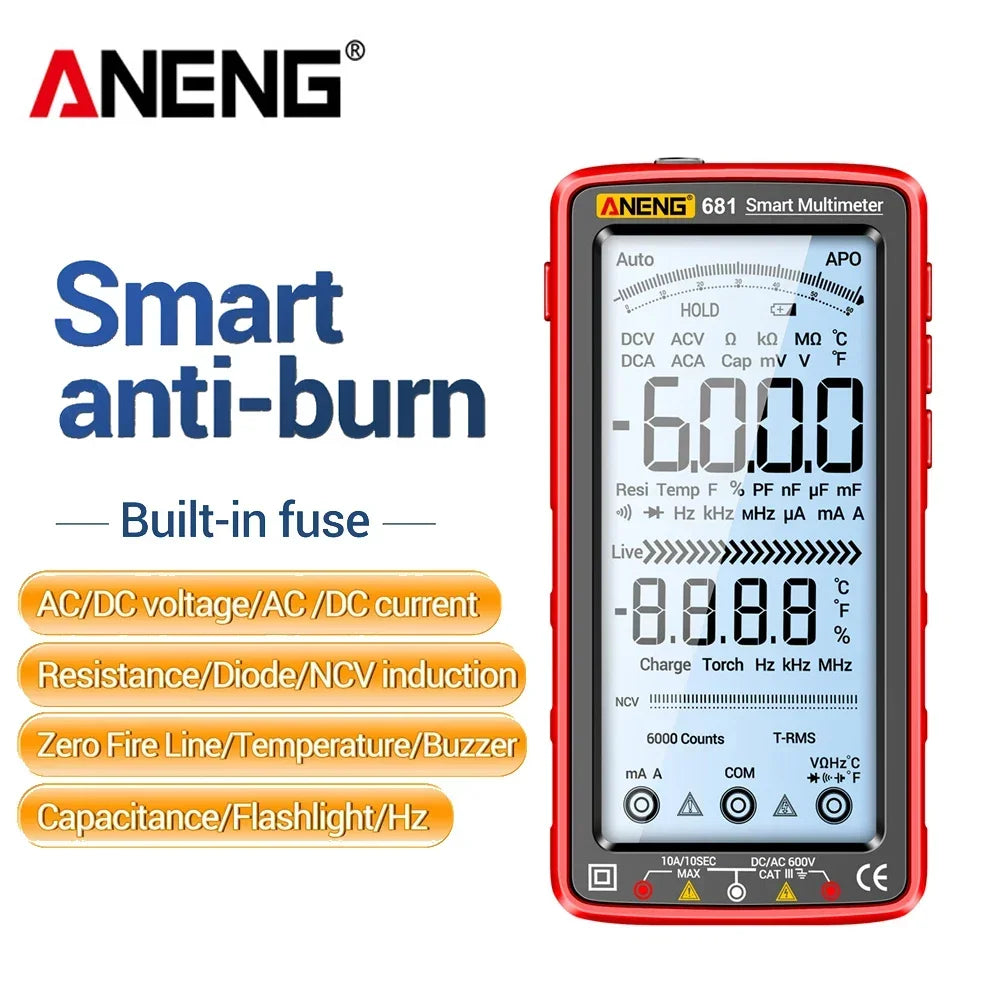

ANENG 681 Rechargable Digital Professional Multimeter Non-contact Voltage Tester AC/DC Voltage Meter LCD Screen Current Tester
ANENG 681 Rechargable Digital Professional Multimeter Non-contact Voltage Tester AC/DC Voltage Meter LCD Screen Current Tester
Couldn't load pickup availability
6000 Counts Intelligent AC DC Voltage Current Multímetro Test Tools

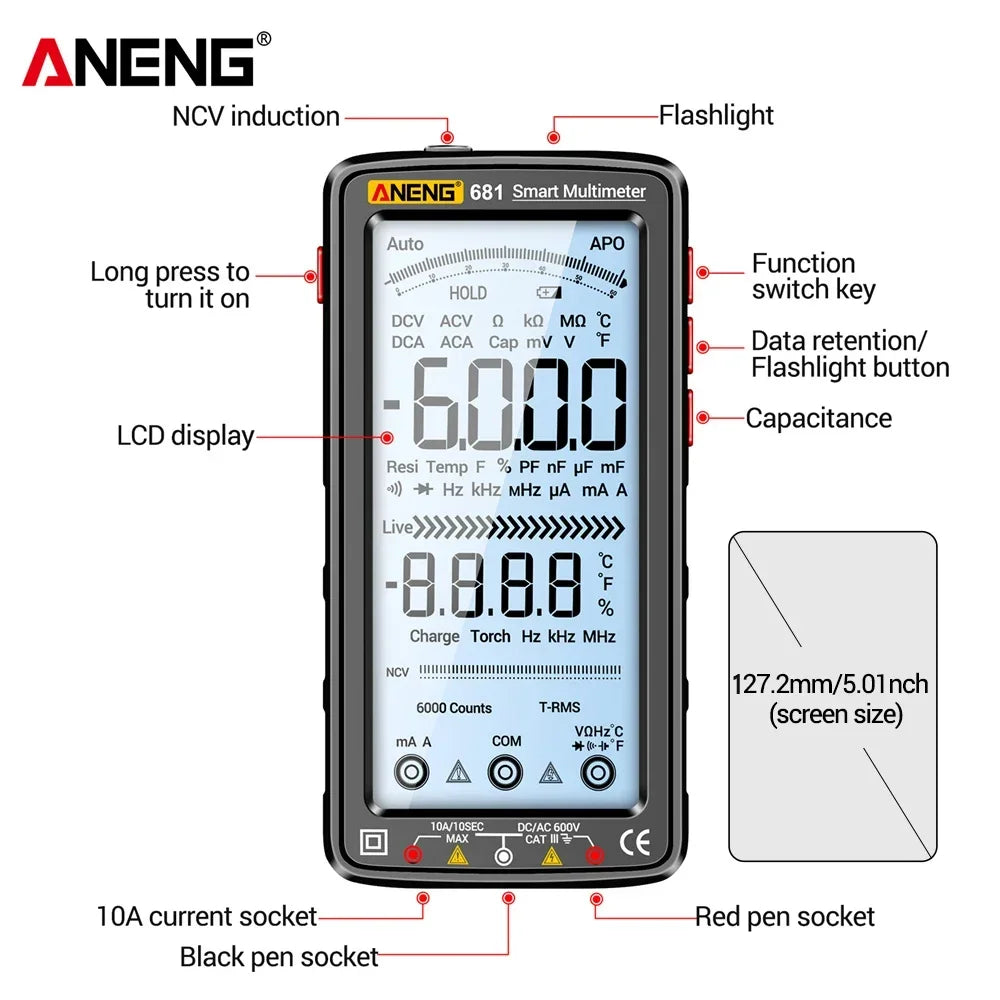

This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts LCD display screen with analog bar display.
681 is a 6000 count pocket type true effective value automatic scanning digital meter.

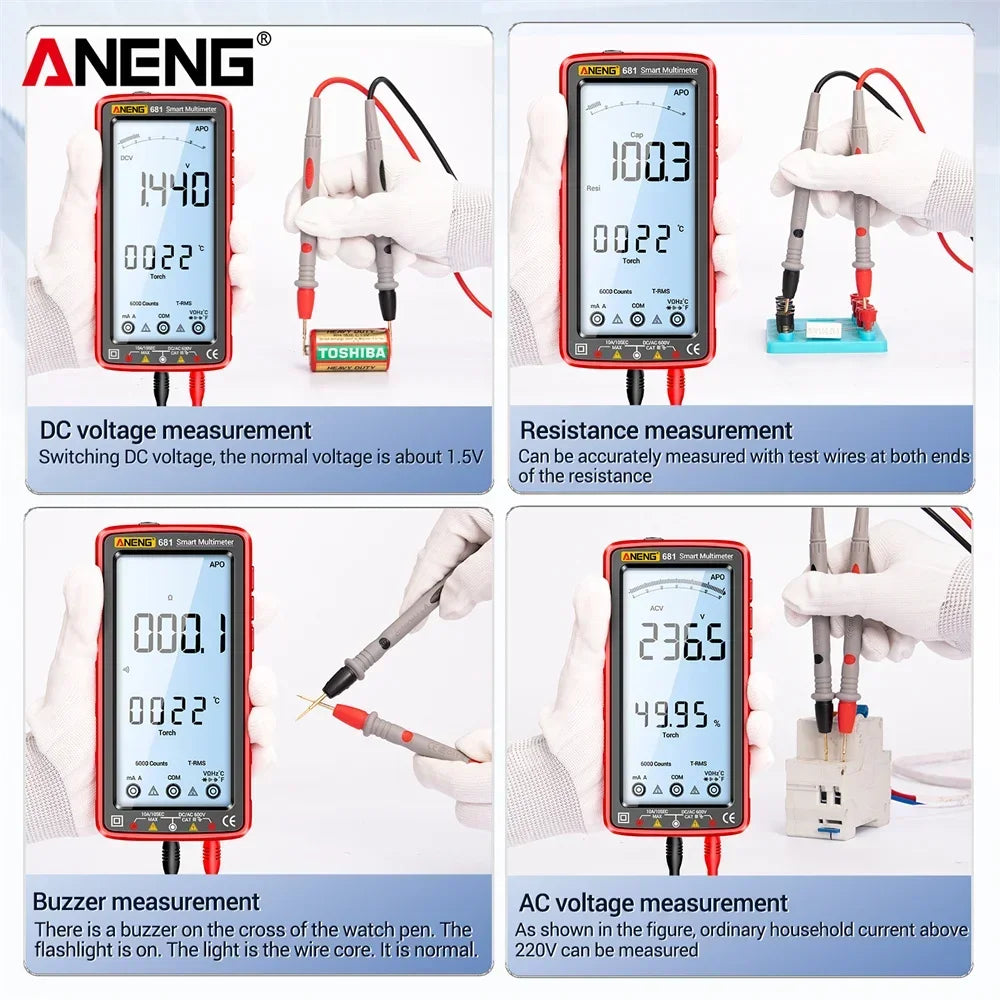

681 automatically recognizes and measures according to the different input voltage/current/resistance/etc. signals.
681 has the characteristics of stable performance, high precision and clear reading.
681 also has additional convenient functions of flashlight test.
681 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.

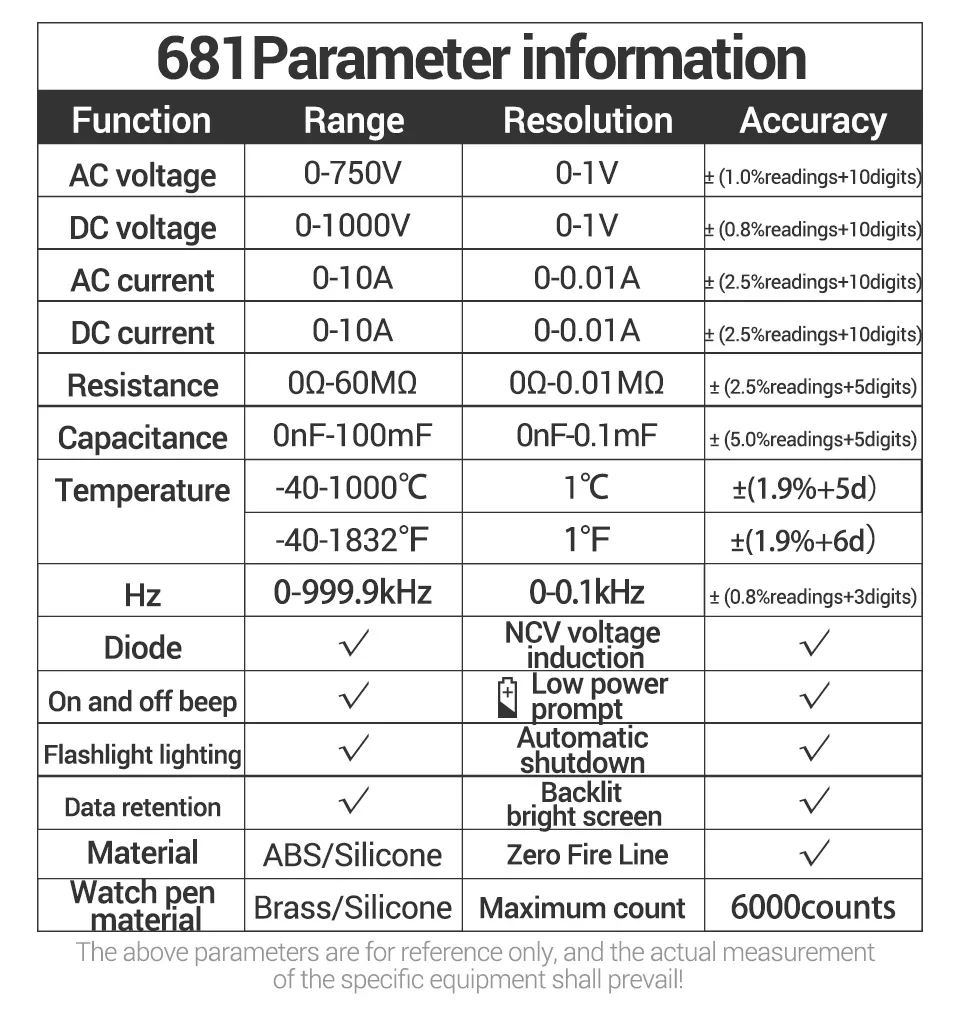

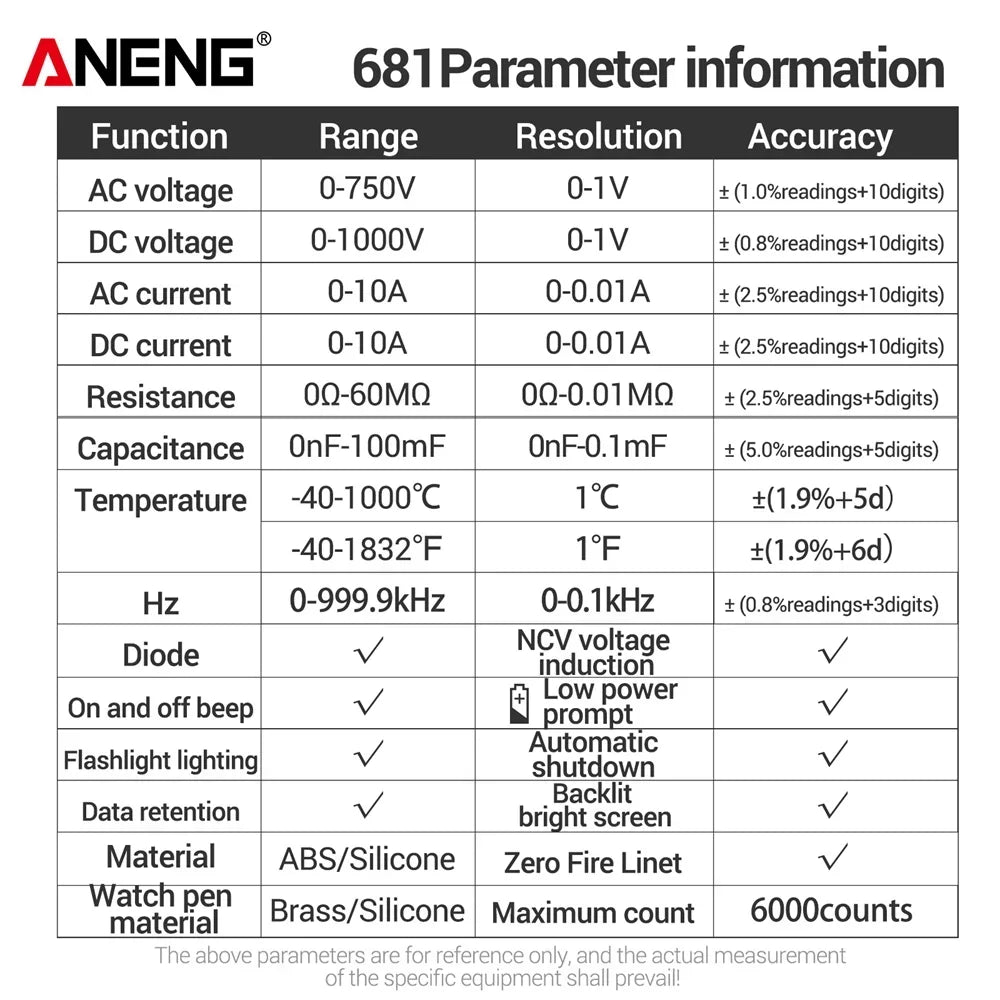

Features:
Function |
Range |
Resolution |
Accuracy |
DC voltage |
0~1000V |
0~1V |
±(0.8%+10) |
AC voltage |
0~750V |
0~1V |
±(1.0%+10) |
AC current |
0~10A |
0~0.01A |
±(2.5%+10) |
DC current |
0~10A |
0~0.01A |
±(2.5%+10) |
Capacitance |
0nF~100mF |
0nF~0.1mF |
±(5.0%+5) |
Resistance |
0Ω~60MΩ |
0Ω~0.01MΩ |
±(2.5%+5) |
Temperature ℃ |
-40 ℃~1000℃ |
1℃ |
±(1.9%+5d) |
Temperature °F |
-40°F~1832 °F |
1°F |
±(1.9%+6d) |
Hz |
0-999.9 kHz |
0~0.1 kHz |
±(0.8%+3d) |
Diode |
√ |
NCV voltage induction |
√ |
On-Off beep |
√ |
Low power prompt |
√ |
Auto shut-down |
√ |
Flashlight |
√ |
Keep data |
√ |
Backlit bright screen |
√ |
Material |
ABS/ Silicone |
Zero Fire |
√ |
Watch pen material |
Brass/Silicone |
Silicone sheath |
√ |
Charging line |
√ |
With a stylus |
√ |
Test leads |
according to the choose |
Temperature line |
√ |
Model |
681 |
Max Count |
6000 Counts |
Product Size |
150.8*74.8*23.8 mm/5.94*2.94*0.98 inch |
||
above parameters are for reference only, and the actual measurement of the specific equipment shall prevail |
|||

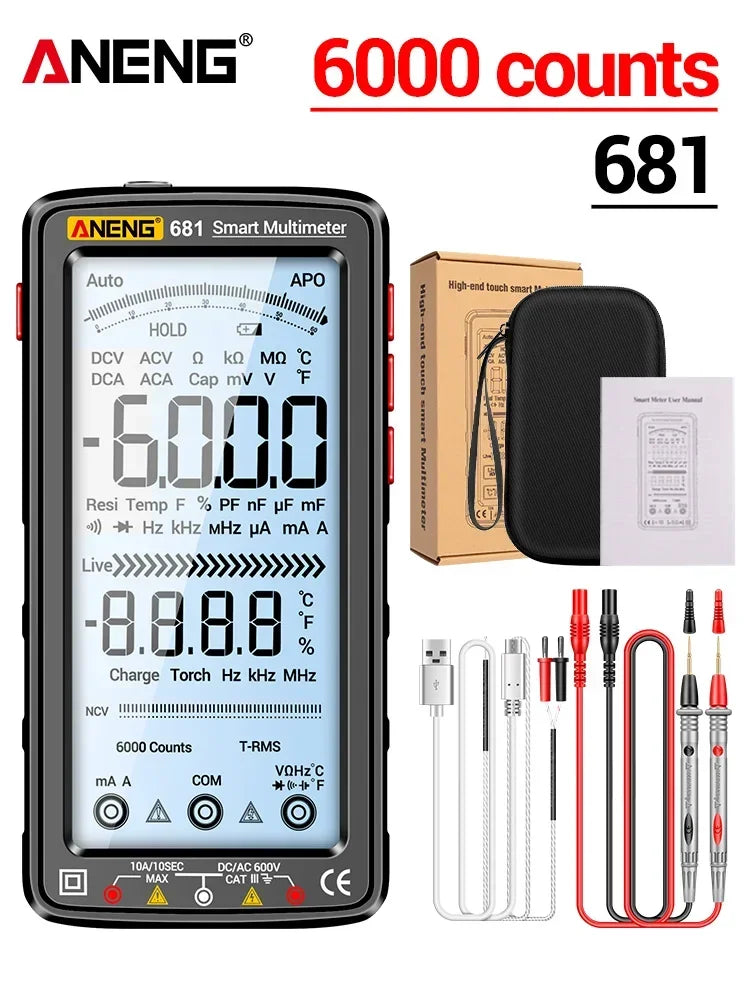

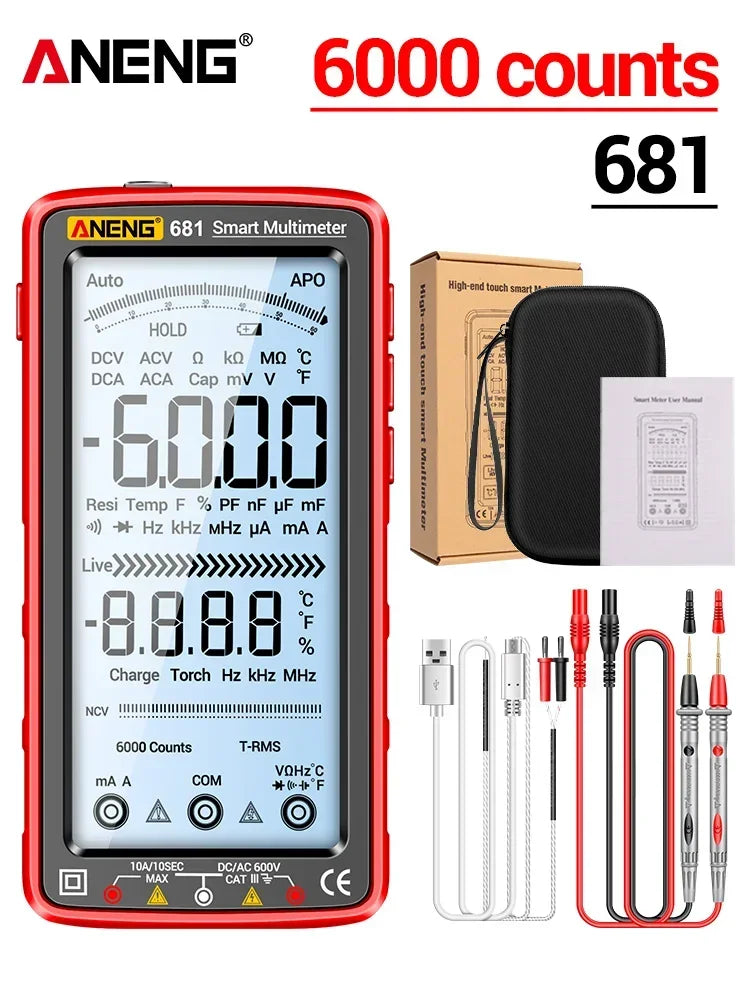

Packing List:
1 * Digital Multimeter
1* Temperature line
1* Storage bag
1 * English user Manual
1 * Packing box

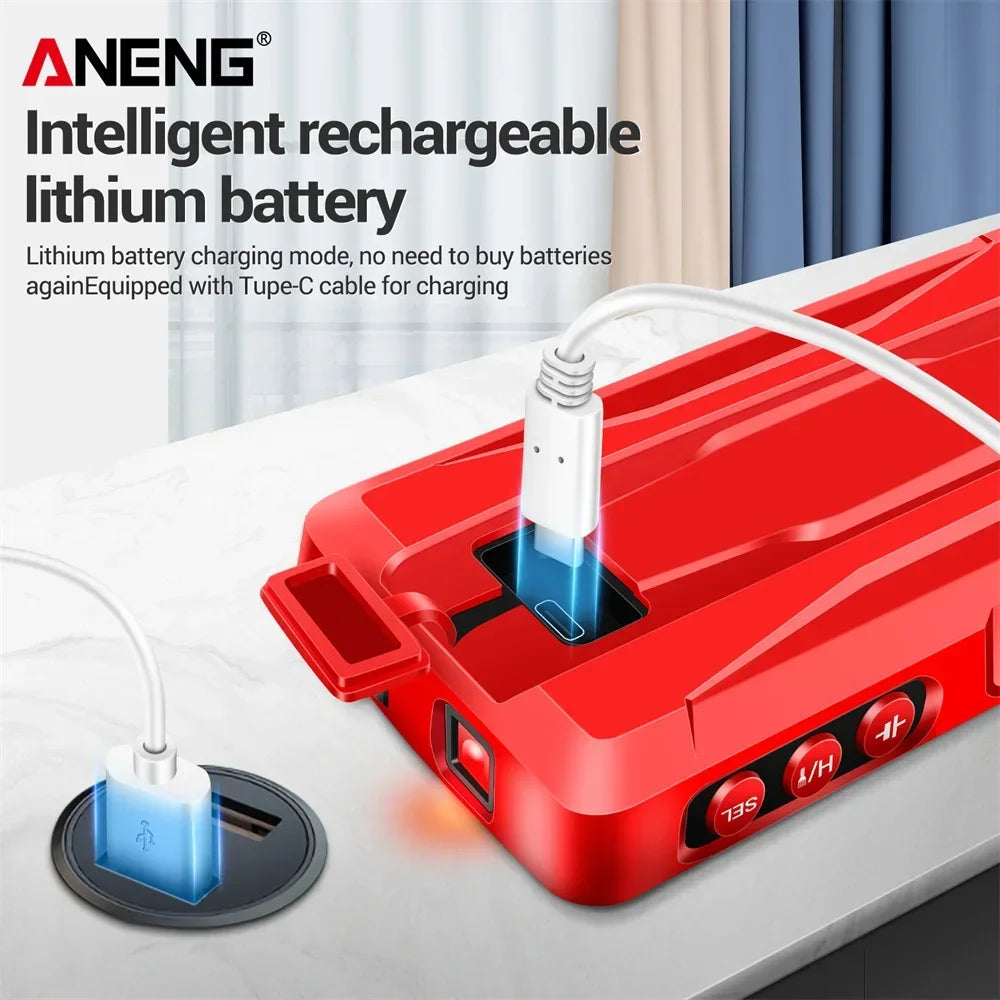

1 * Charging Cable
1 * Test leads (according to the choose)
