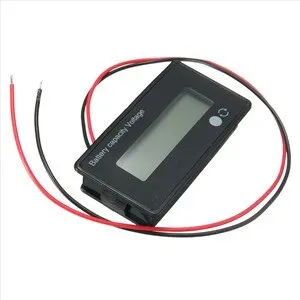

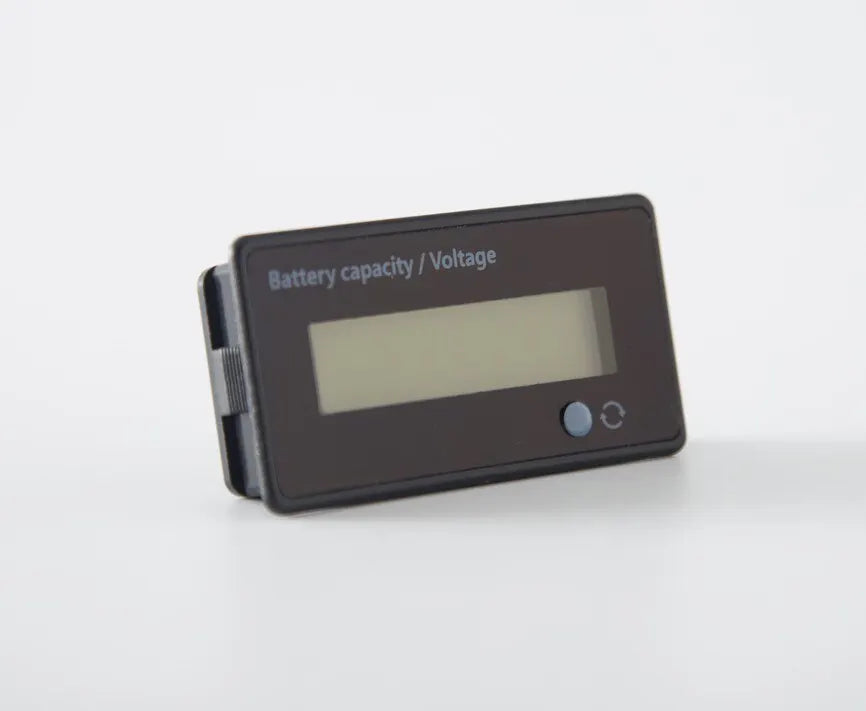

7 to 100V Lead Acid Lithium Battery Capacity Indicator Car Motorcycle Digital Voltmeter Voltage Tester Meter Tool

7 to 100V Lead Acid Lithium Battery Capacity Indicator Car Motorcycle Digital Voltmeter Voltage Tester Meter Tool

Regular price $3.25
Regular price $3.25 Sale price $3.25
Sale Sold out

• Wide Voltage Range :Tests lead-acid and lithium batteries from 7 to 100V, making it suitable for a wide range of applications.


• Accurate Readings :Provides precise voltage readings, ensuring that you can monitor your battery's health with accuracy.


• Digital Display :The digital display makes it easy to read and interpret the voltage measurements, eliminating the need for manual calculations.


• Versatile Use :Can be used for testing car and motorcycle batteries, making it a versatile tool for any vehicle owner.


Features:

Longer service life

Touch switch button, perfect feel

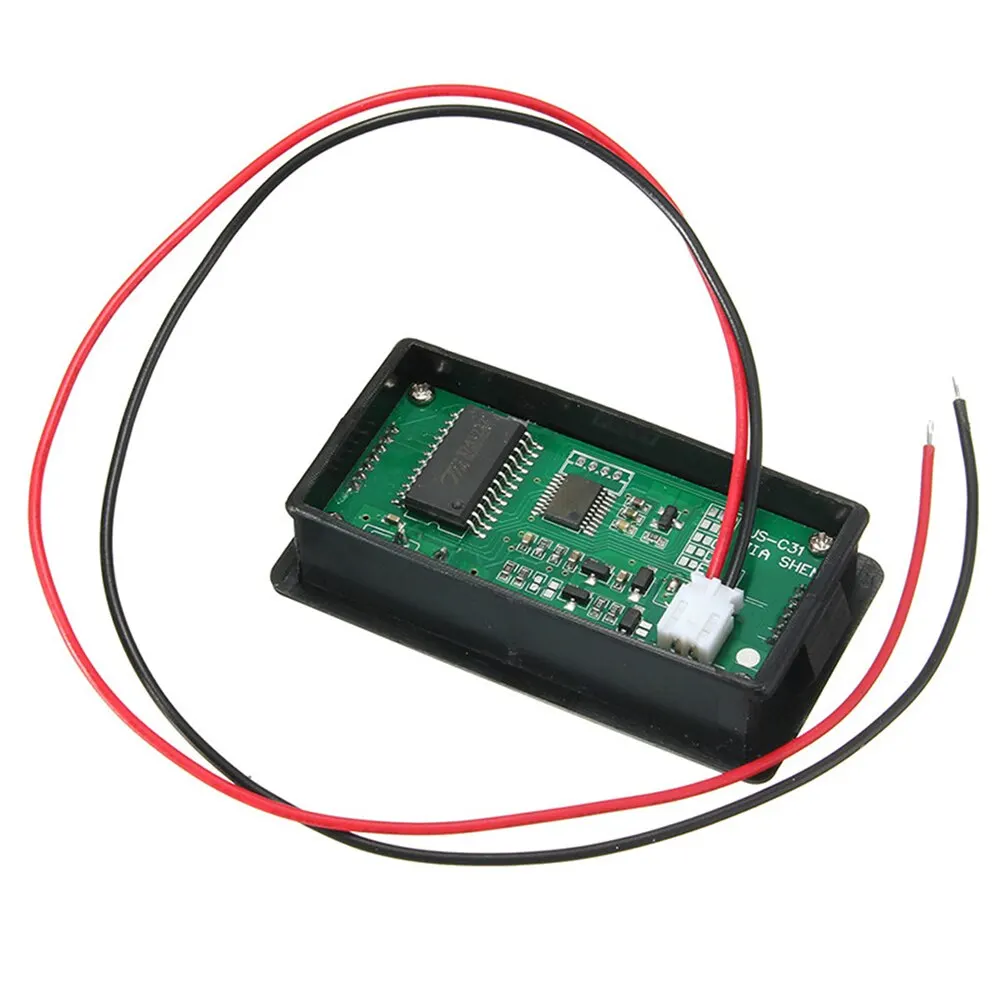

Dual IC integrated circuit control, more stable

The product is suitable for lead-acid 12V, 24V, 36V, 48V (8-70V)

The product is suitable for 3.7V lithium Series Multi-platform, 2 string, 3 string, 4 string, 5 string, 6 string, 7 string and 8 string 9 string 10 string 11 string 12 string 13 string 14 string 15 string

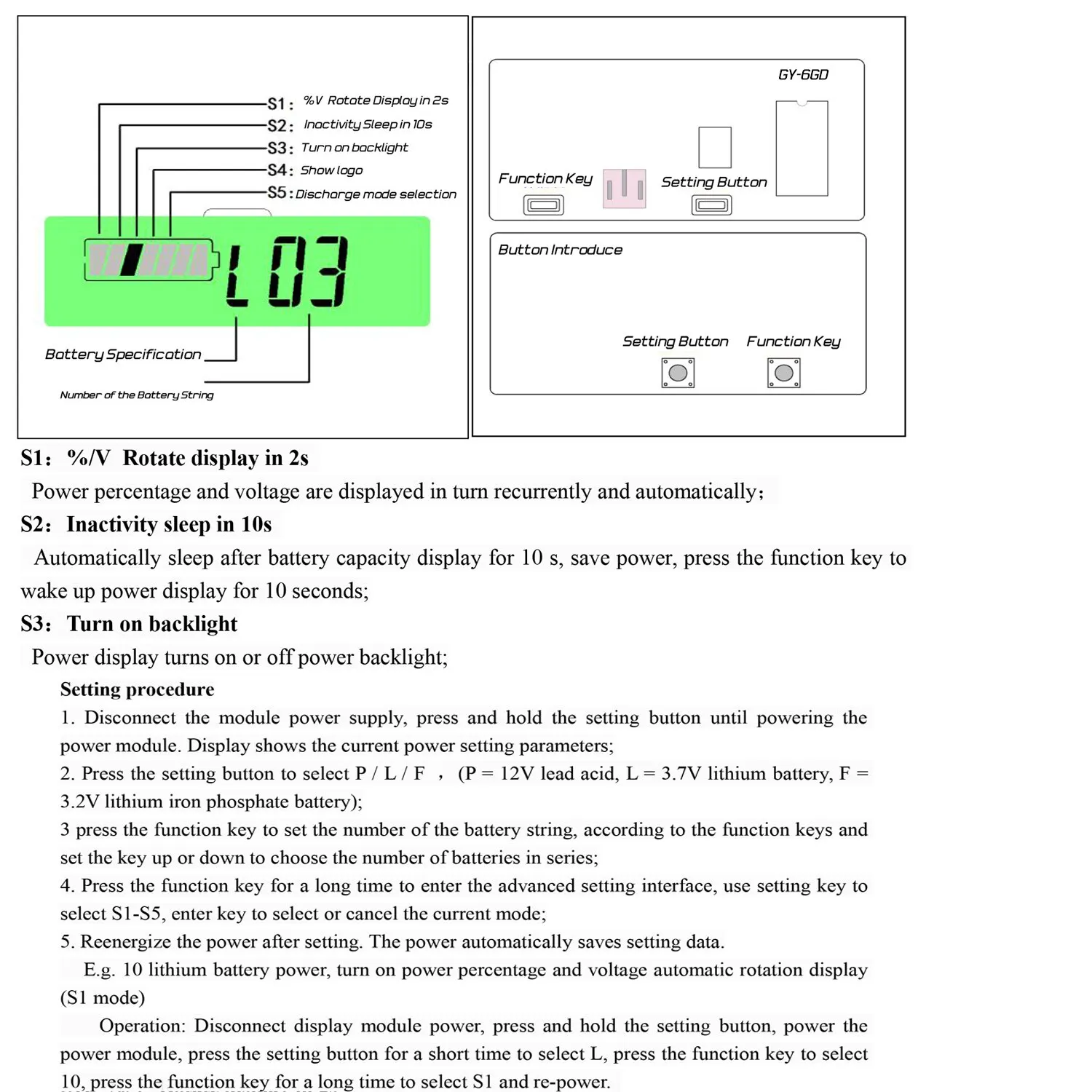

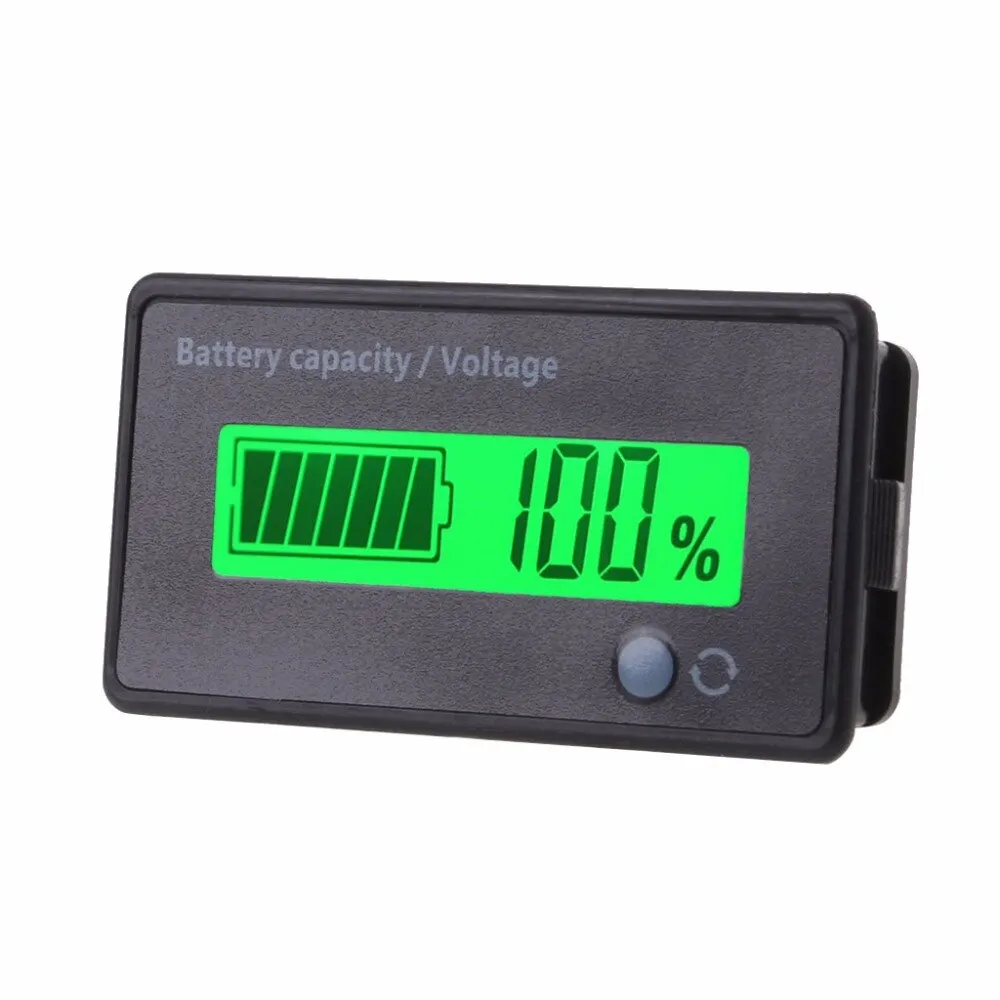

S1:%/V Rotate display in 2s

Power percentage and voltage are displayed in turn recurrently and automatically;

S2:Inactivity sleep in 10s

Automatically sleep after battery capacity display for 10 s, save power, press the function key to wake up power display for 10 seconds;

S3:Turn on backlight

Power display turns on or off power backlight;

S4:Show logo(Applicable to small battery icon)

Logo icon is located in the underface of battery symbol on the left side of LCD, turn on and show the logo;

S5:Discharge mode selection

Power displays two kinds of battery discharge curve, different environments convert to select appropriate battery discharge modes;


Setting procedure:

1. Disconnect the module power supply, press and hold the setting button until powering the power module. Display shows the current power setting parameters;

2. Press the setting button to select P / L / F ,(P = 12V lead acid, L = 3.7V lithium battery, F = 3.2V lithium iron phosphate battery);

3 press the function key to set the number of the battery string, according to the function keys and set the key up or down to choose the number of batteries in series;

4. Press the function key for a long time to enter the advanced setting interface, use setting key to select S1-S5, enter key to select or cancel the current mode;

5. Reenergize the power after setting. The power automatically saves setting data.

E.g. 10 lithium battery power, turn on power percentage and voltage automatic rotation display (S1 mode)

Operation: Disconnect display module power, press and hold the setting button, power the power module, press the setting button for a short time to select L, press the function key to select 10, press the function key for a long time to select S1 and re-power.


Specifications:

Voltage Range: 7-100V

Material: Plastic

Dimension: app.61.3mmx33.3mmx13.5mm/2.41 ''x 1.31'' x 0.53''

Cable length: app.30cm/11.81''

Housing color: Black


Package Included:

1 x Battery Capacity&Volt Tester (without retail package)

1 x Cable
