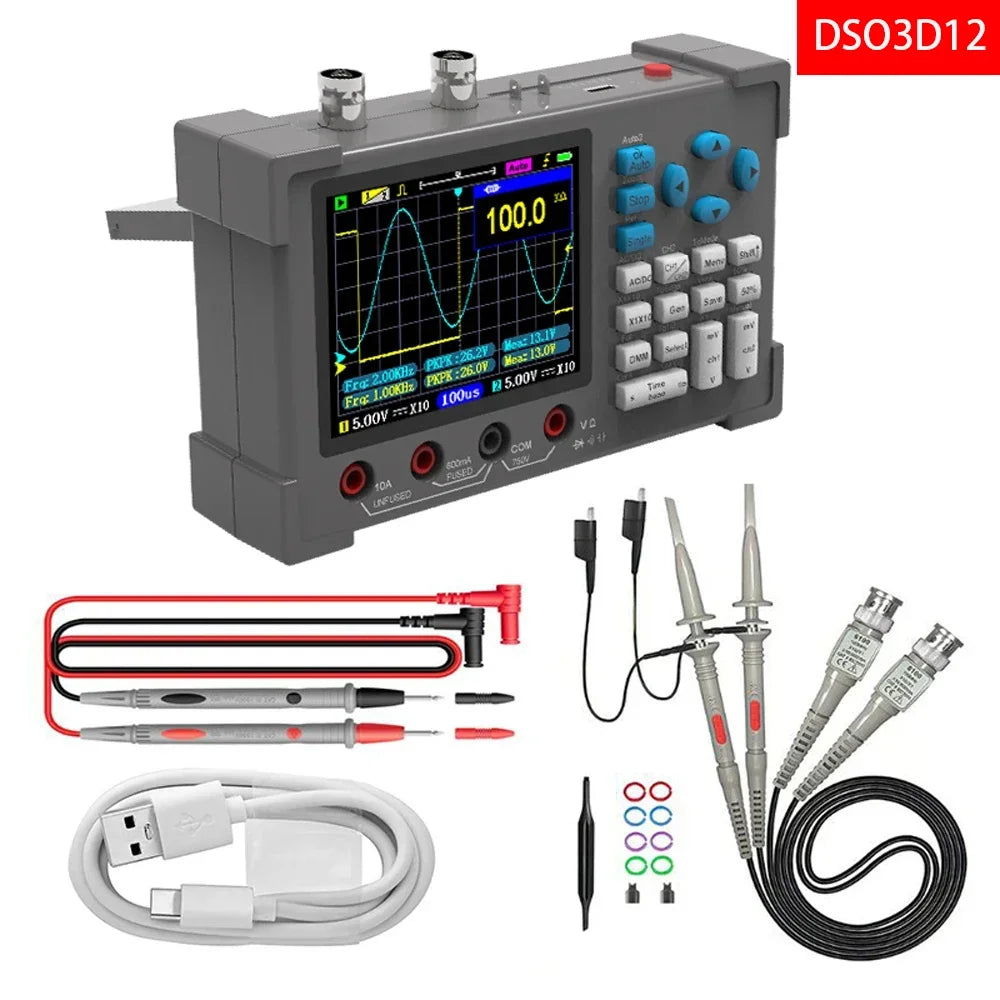

3.2 Inch Desktop Digital Oscilloscope 120M Performance Bandwidth Dual Channel Multimeter And Signal Generator 3 in 1 DSO3D12

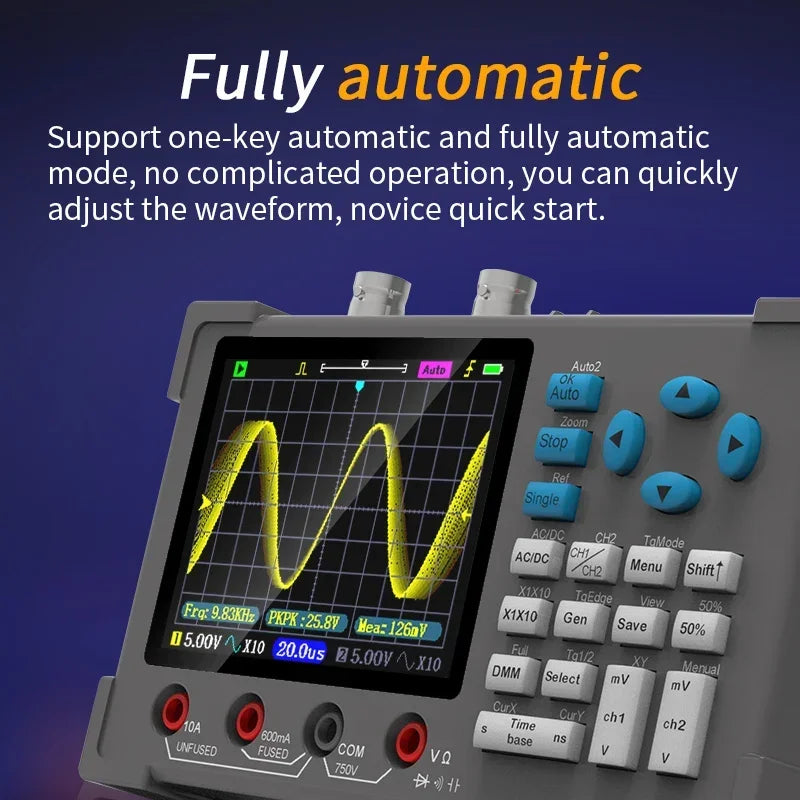

This DSO3D12 120M bandwidth oscilloscope with very low price and excellent performance. like adopt ARM and FPGA chip collocation, also Includes a high-accuracy true RMS multimeter and a 2.5V signal generator. Fully automatic measurement mode is supported.Come on and try it, it will not let you down.
Features:Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.

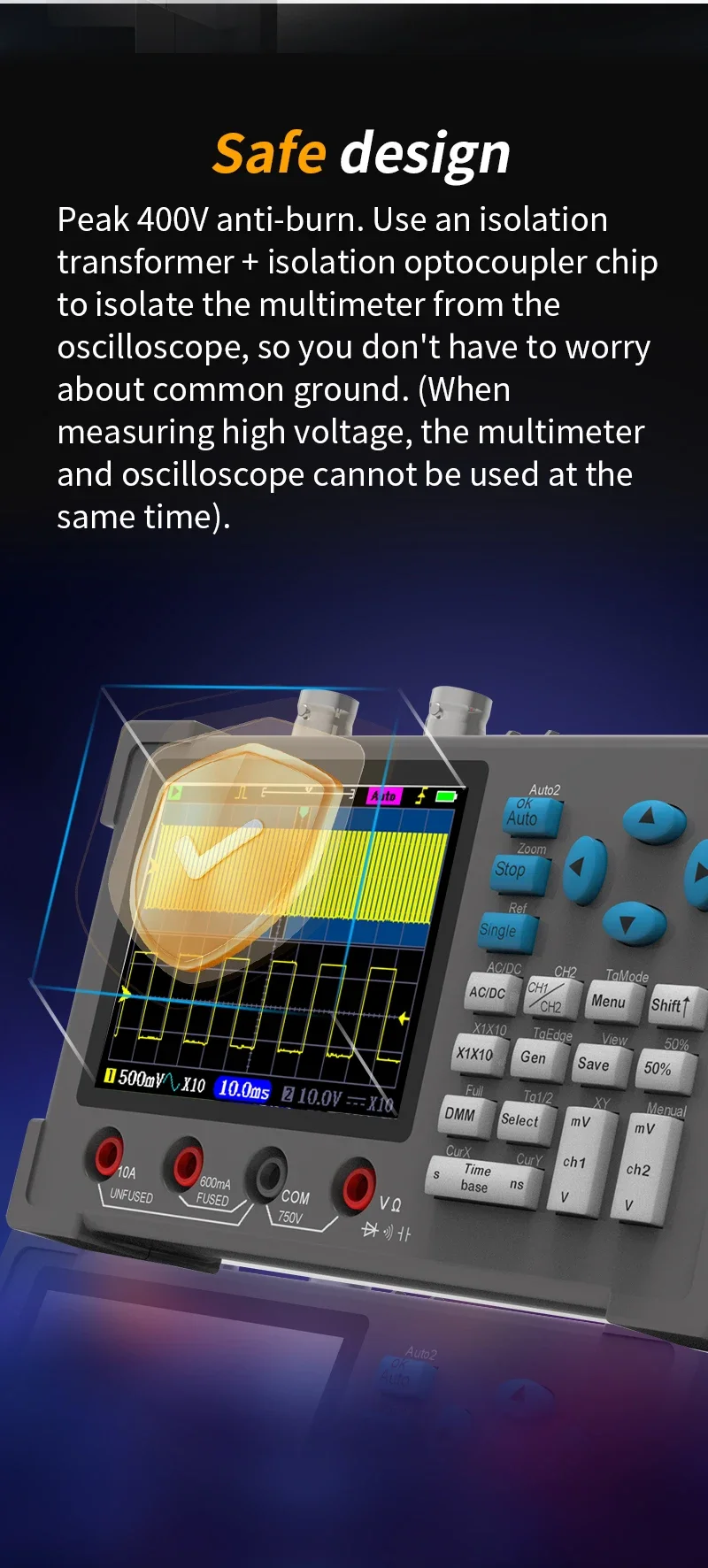

Built-in high-precision multimeter, support voltage/current/resistance/diode/continuous/capacitor. The multimeter is isolated from the oscilloscope.The accuracy is high and it is also supported for fast calibration.The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, which the frequency adjustment ranges is 0~2MHz.
There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.

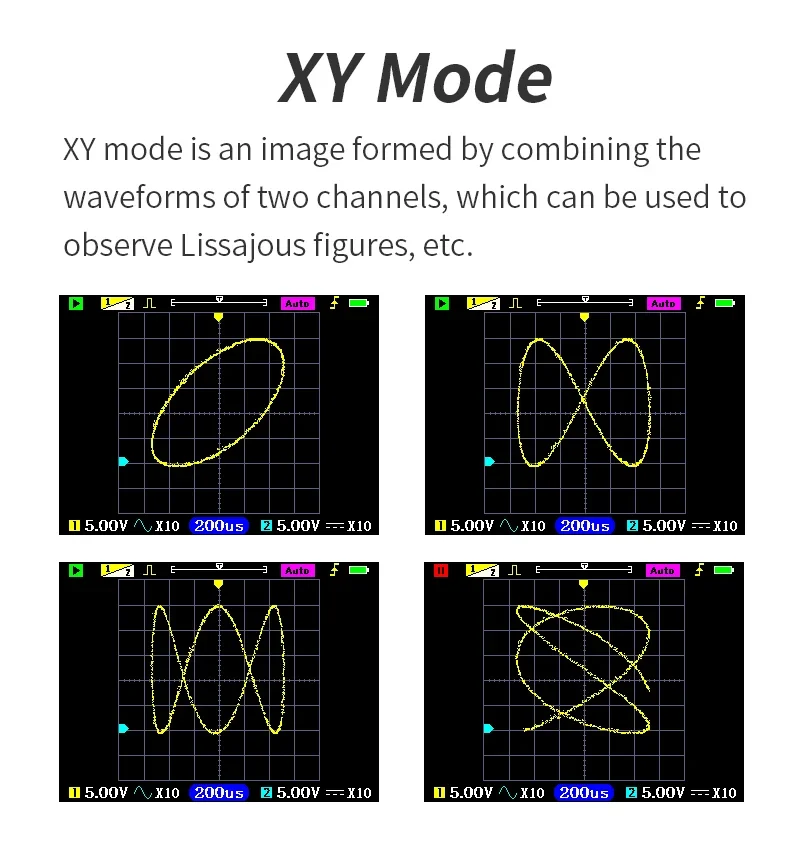

Specifications:Material: ABSChannels: 2Coupling: AC/DCBandwidth 120M(ch1 only),dual channel mode is 60M.Multimeter:voltage/current/resistance/diode/continuous/capacitor.XY mode: supportEquivalent sample rate: 500M(algorithm)Real-time sample rate: 250MScreenshot: supportRise time: <3nsFrequency: ±0.01%Single trigger: supportImpedance: 1MΩFFT: supportFully-Auto: supportTime base: 5ns~10sWa-ve out amp: 2.5VVer sensitivity: 10mV/div~10V/div(X1)Waves out freq: 0-2MHzMax voltage ±40V(x1), ±400V(x10)Trigger type: rise/fallDisplay mode: YT/RollPersistence: None/1s /∞
