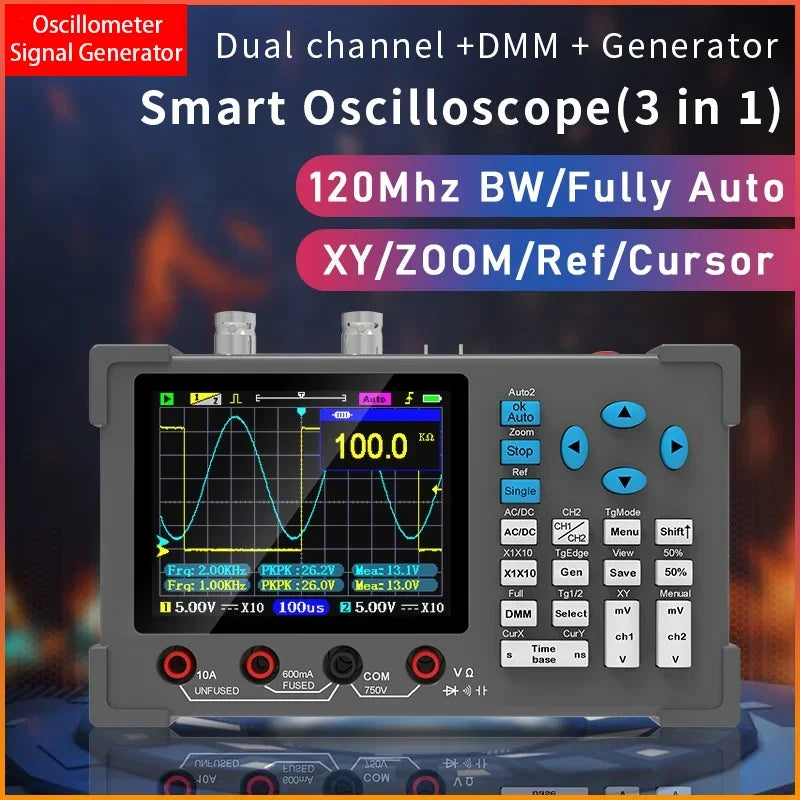

3.2 Inch Desktop Digital Oscilloscope 120M Bandwidth Dual Channel Multimeter And Signal Generator 3 in1 High Performance DSO3D12

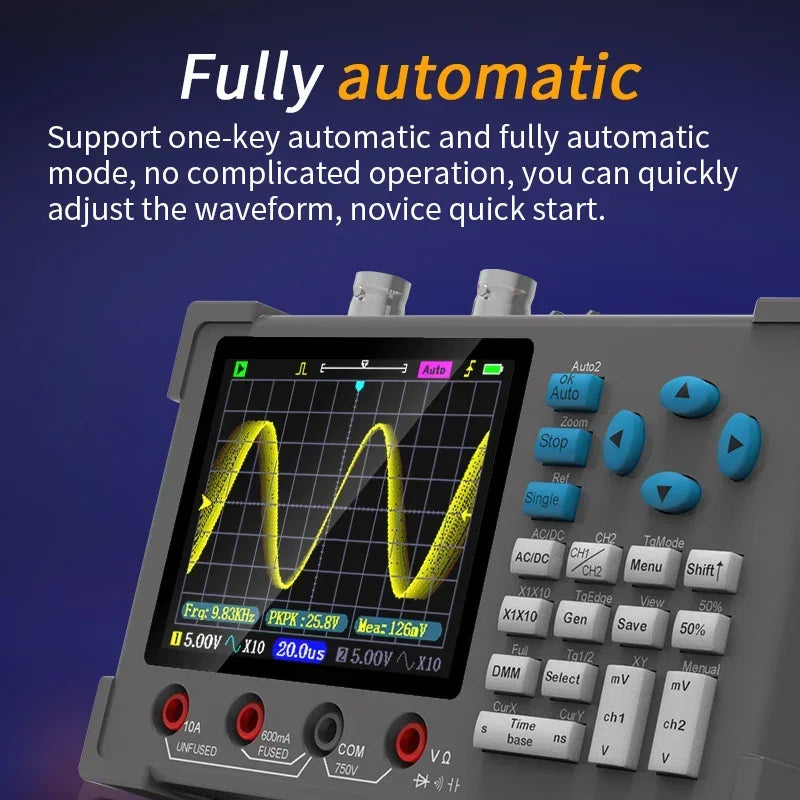

This DSO3D12 120M bandwidth oscilloscope with very low price and excellent performance. like adopt ARM and FPGA chip collocation, also Includes a high-accuracy true RMS multimeter and a 2.5V signal generator. Fully automatic measurement mode is supported.Come on and try it, it will not let you down.



Features:

Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.

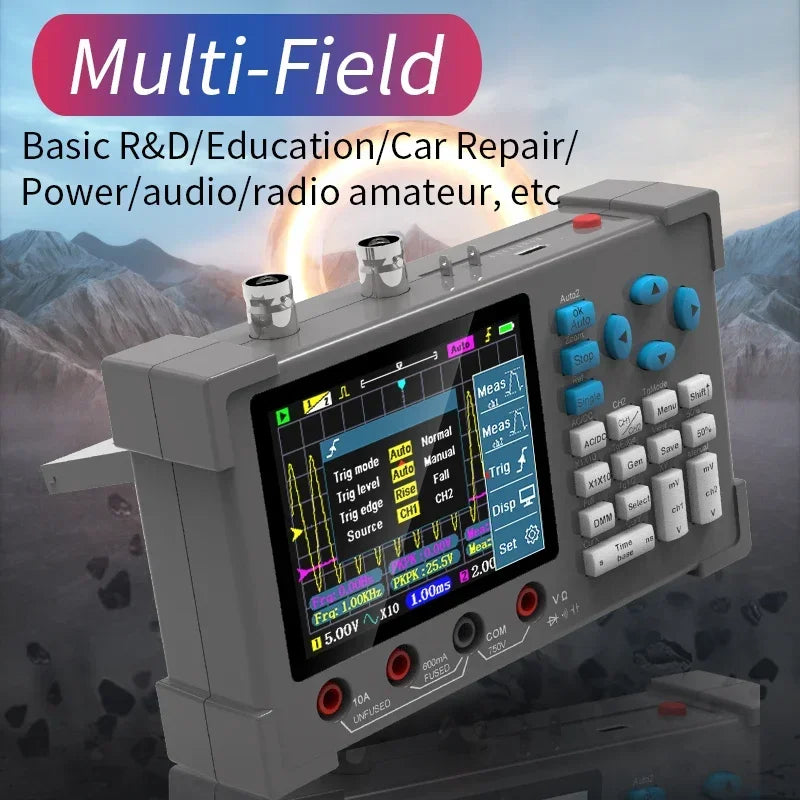

Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.

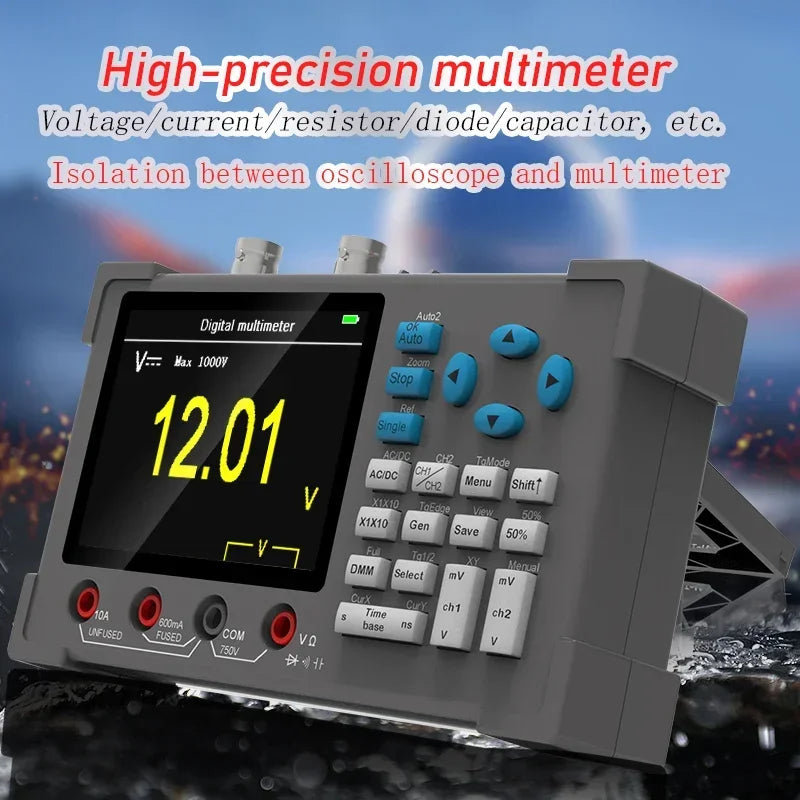

Built-in high-precision multimeter, support voltage/current/resistance/diode/continuous/capacitor. The multimeter is isolated from the oscilloscope.The accuracy is high and it is also supported for fast calibration.

The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, which the frequency adjustment ranges is 0~2MHz.



There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.



Specifications:

Material: ABS

Channels: 2

Coupling: AC/DC

Bandwidth 120M(ch1 only),dual channel mode is 60M.

Multimeter:voltage/current/resistance/diode/continuous/capacitor.

XY mode: support

Equivalent sample rate: 500M(algorithm)

Real-time sample rate: 250M

Screenshot: support

Rise time: <3ns

Frequency: ±0.01%

Single trigger: support

Impedance: 1MΩ

FFT: support

Fully-Auto: support

Time base: 5ns~10s

Wa-ve out amp: 2.5V

Ver sensitivity: 10mV/div~10V/div(X1)

Waves out freq: 0-2MHz

Max voltage ±40V(x1), ±400V(x10)

Trigger type: rise/fall

Display mode: YT/Roll

Persistence: None/1s /∞
