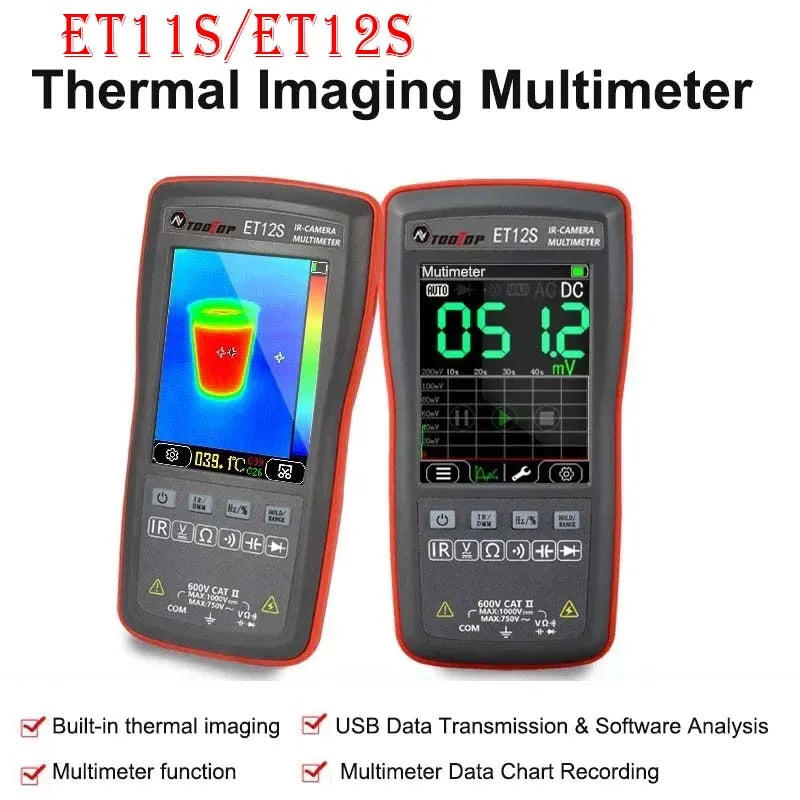

2 In 1 Thermal Imager Multimeter Touch Screen Electric Circuit Automobile Inspect IR Thermal Camera for PCB Electronic Repair

1. 【 2-In-1 Function】: Thermal imager + Multimeter 2-In-1 ,One click switching between two functions,with compact and small size, light weight and easy to carry.

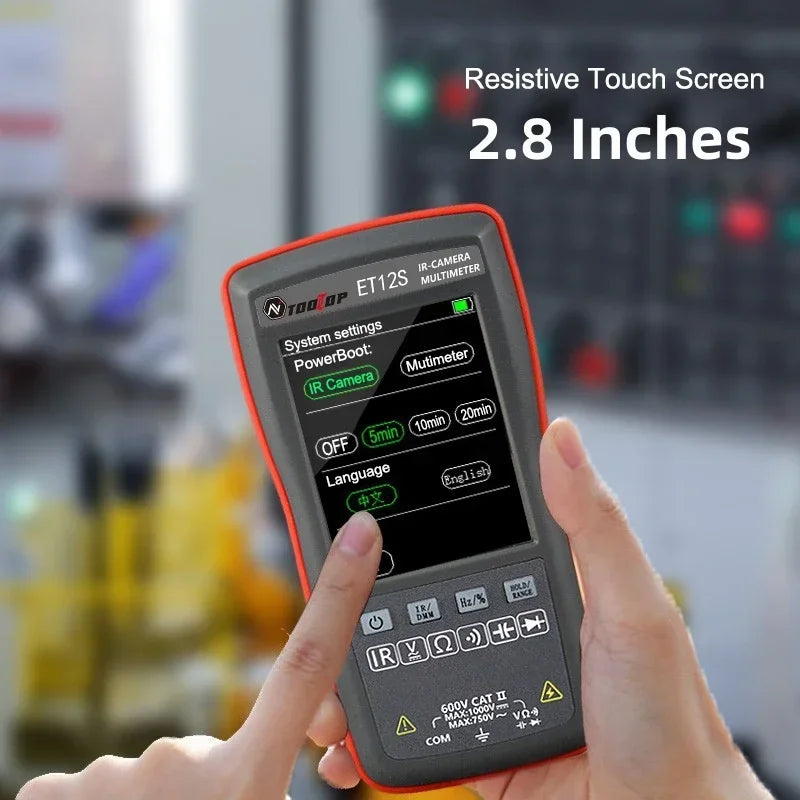

2. 【Touch screen:】2.8 inches Resistive touch screen operation,320*480 resolution,with one click function.

3. 【Data transmission & PC software analysis 】:Under USB mode, it is possible to transfer locally saved thermal imaging images and the multimeter mensurement result recording by data chart .And displayed on the computer through PC software.

4. 【Multifunctional】: The multimeter can measure DC voltage, AC voltage, resistance, diode, on/off, capacitance, etc.

5. 【Language】: Both Chinese and English can be set.

6. 【Battery management】: built-in lithium battery (supporting USB charging), with automatic screen turn off and automatic power off functions.

7. 【Widely applications】: can be used for circuit board inspection and maintenance, power supply maintenance, electronic equipment maintenance, Home appliance overhaul, is an ideal choice for electronics and maintenance technicians

Specifications:

Thermal imager parameters

Sensor: Uncooled focal plane

lmage capture frequency:16Hz(ET11S) ;  20Hz(ET12S)

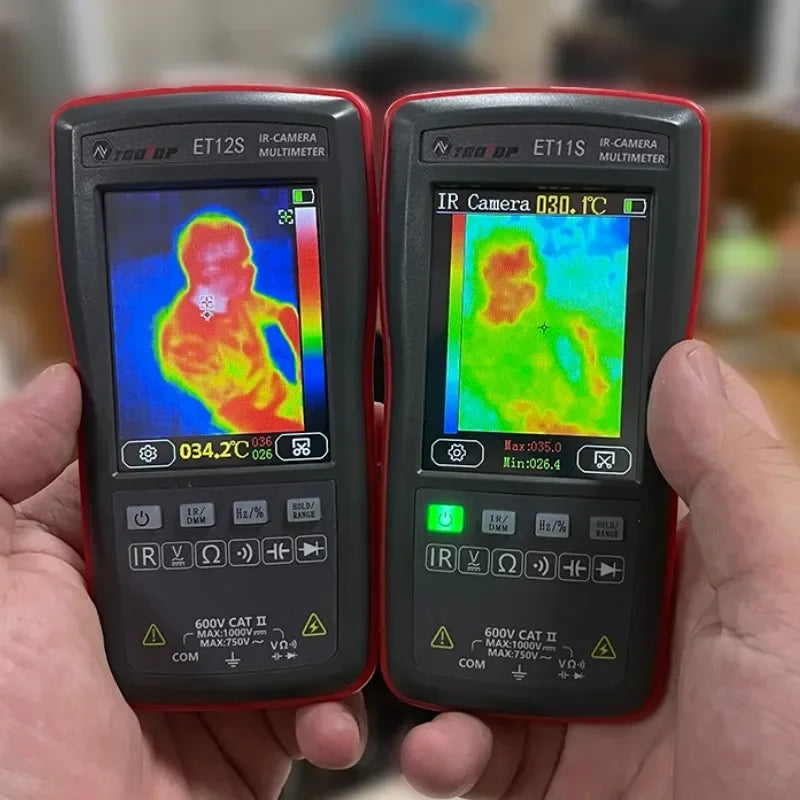

Thermal imaging pixel: 24*32(ET11S) ; 90*120(ET12S)

FOV:55°(H)*35°(V)

Emissivity: 0.1-0.99 adjustable

Measuring range:-40~ +300℃(ET11S); -20~ +400℃(ET12S)

Mode:automatic gain

Color palette:Iron Red/Rainbow

Temperature measurement error:>0℃:±2℃/±2%; ≤0℃ ±5℃/±5%

Display temperature accuracy:0.1°C/0.1°F

Multimeter parameters

Maximum DC input voltage:1000V

Maximum AC input voltage:750V

Maximum measured resistance:40MΩ

Maximum measuring resistance of capacitance:100uF

Duty cycle measurement range:0.1%-99.9%

Diode measuring range:0V-1.5V

Maximum resistance of on-off detection:30Ω

Counts:

4000 counts,Refreshes:3 times per second (ET11S)

4000counts,Refreshes:6 times per second (ET12S)

Other parameters

Display screen: 2.8 inches 320*480

touch screen: Resistive touch screen

USB interface: TYPE-C

Storage Capacity: 3.5MB

Image Format: BMP

Battery: Built-in Lithium battery

Storage temperature: -20~60℃(-4~140℉)

Working temperature: 0-50℃(32-122℉)

Working humidity: <85%RH(non condensing)

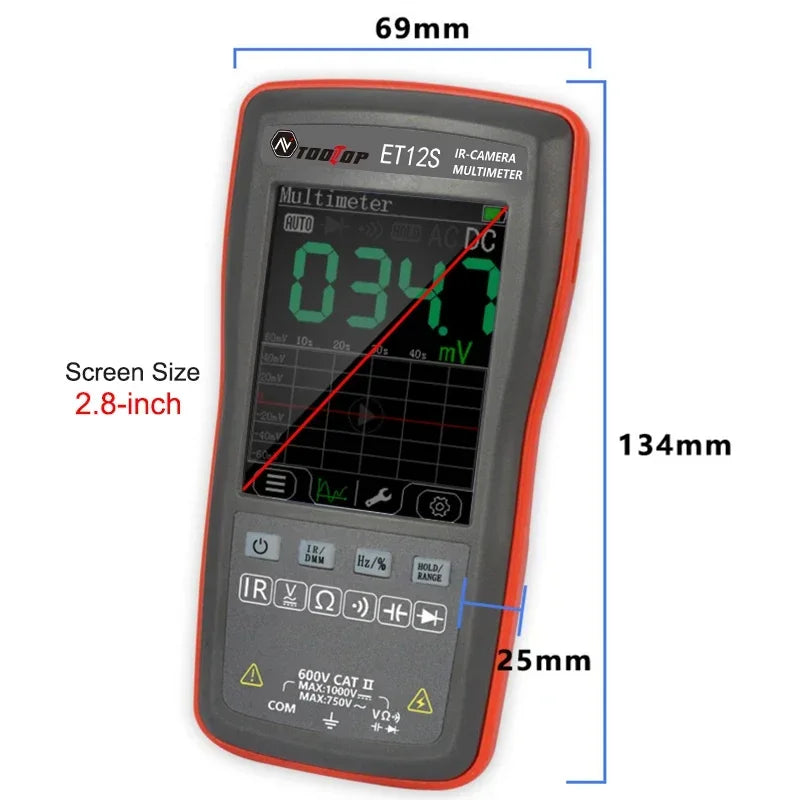

Product size:  134*69*25mm

Product weight: 125g

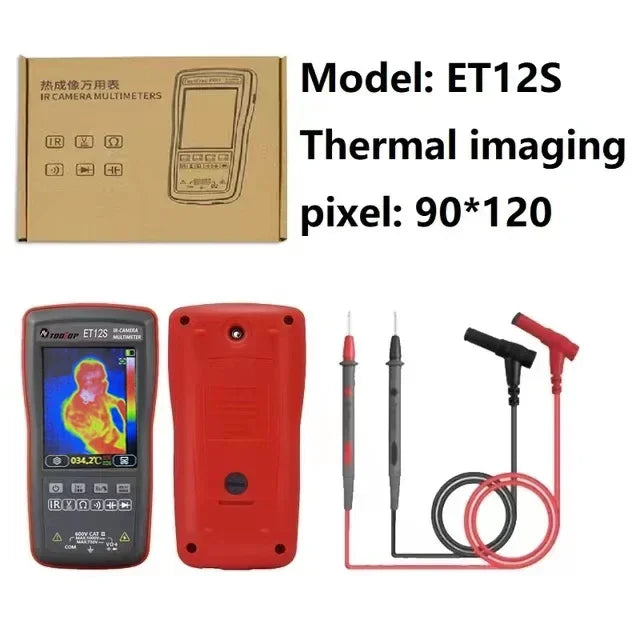

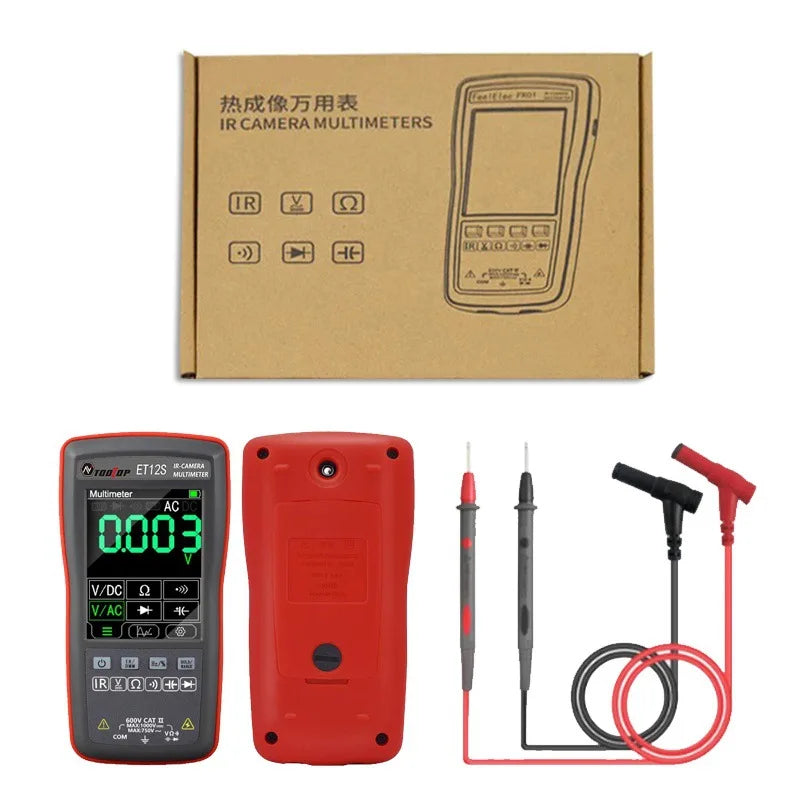

Package List:

1 x Thermal imager Multimeter

1 x One Pair Test Leads

1 x User Manual

1 x Box
